High-Efficiency Biofilm Technology for Reliable Wastewater Treatment and Capacity Expansion
· CE & ISO International Certifications
· Equipped with PLC for Fully Automatic Intelligent Operation & Maintenance
· Compact Footprint, No Complicated Civil Works Required

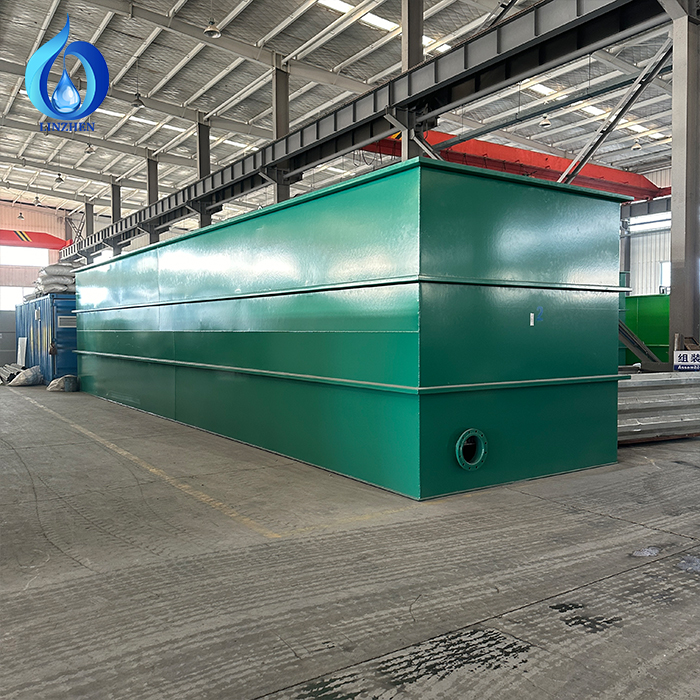

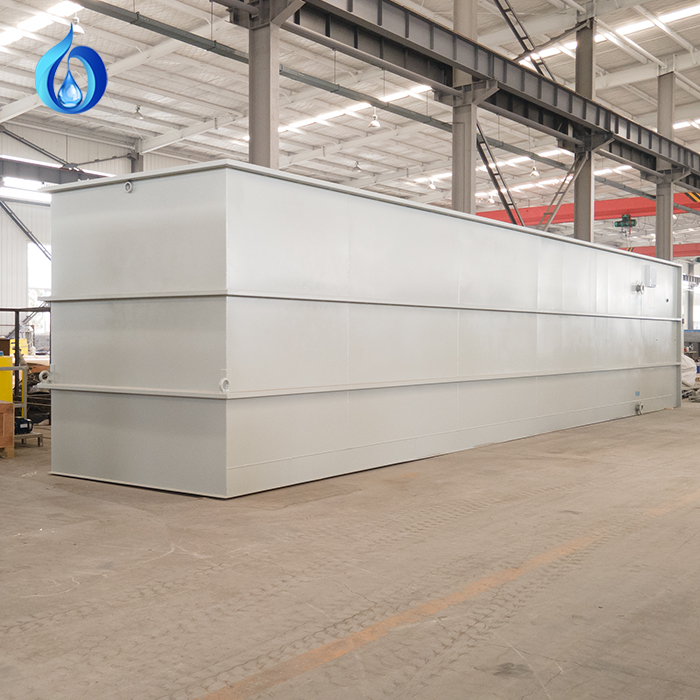

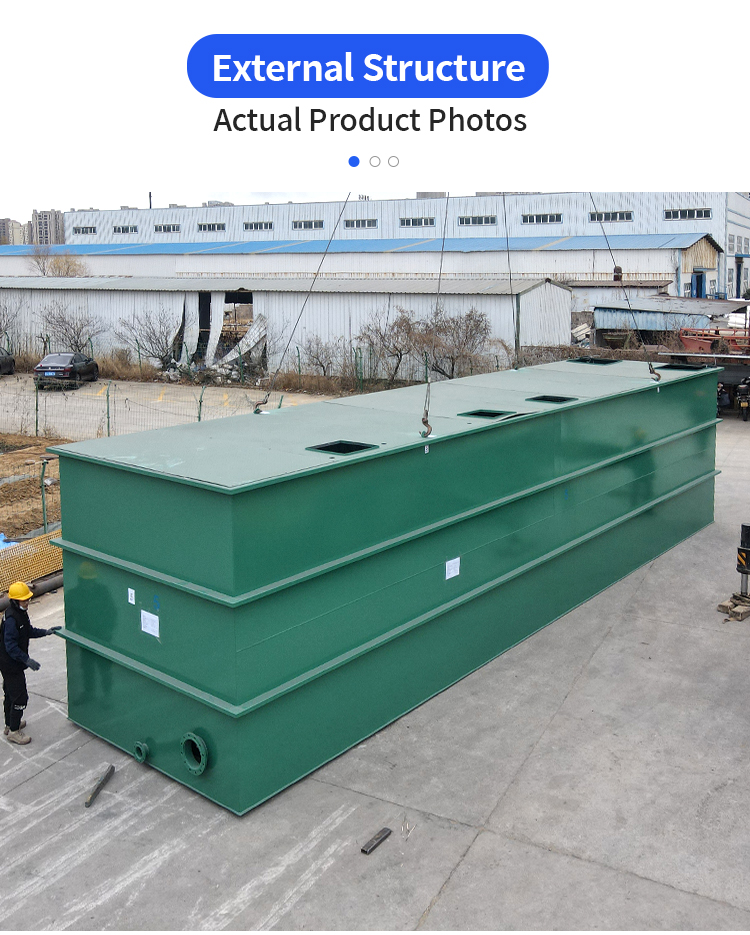

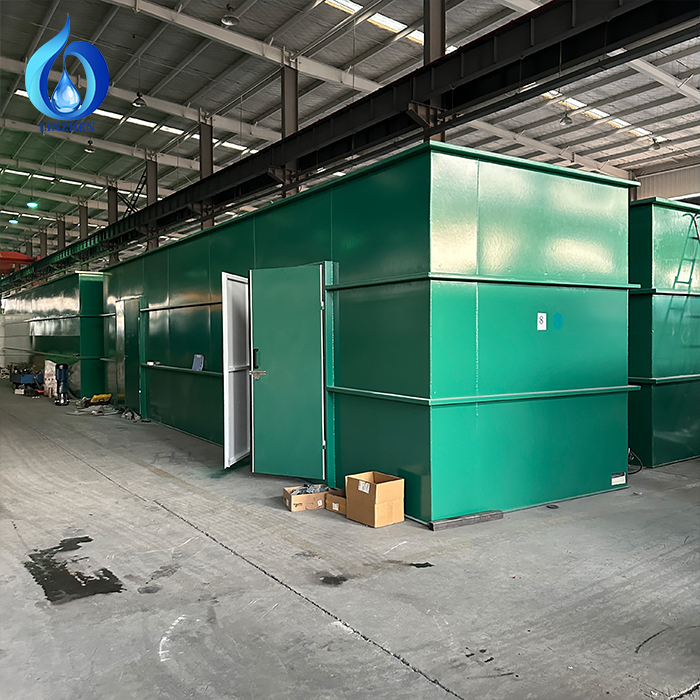

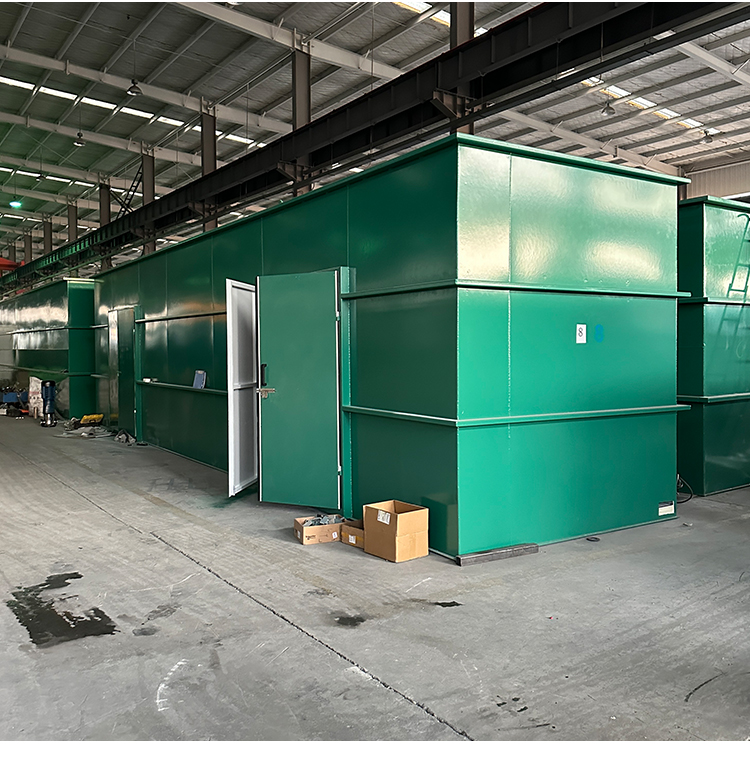

The MBBR (Moving Bed Biofilm Reactor) Wastewater Treatment System from Qingdao Linzhen Environment Project Co., Ltd. is an advanced biological wastewater treatment solution engineered for efficient removal of organic pollutants, ammonia nitrogen, and suspended solids. Utilizing high-performance suspended biofilm carriers, the system provides superior treatment efficiency while maintaining a compact footprint and low operating costs.
As a leading manufacturer of integrated sewage treatment equipment, industrial wastewater treatment systems, containerized sewage treatment plants, and customized environmental protection solutions, Linzhen delivers reliable MBBR systems for municipal, commercial, and industrial wastewater treatment projects worldwide.
With successful installations in more than 50 countries, Linzhen provides complete engineering support, equipment customization, installation guidance, and responsive after-sales service through its overseas branches and technical service network.

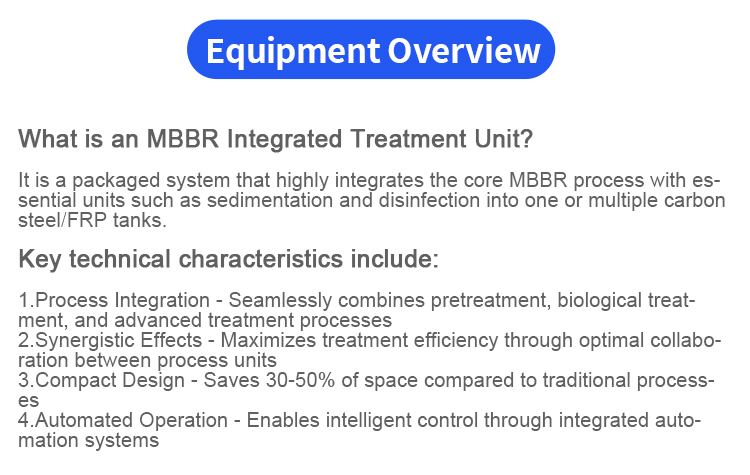

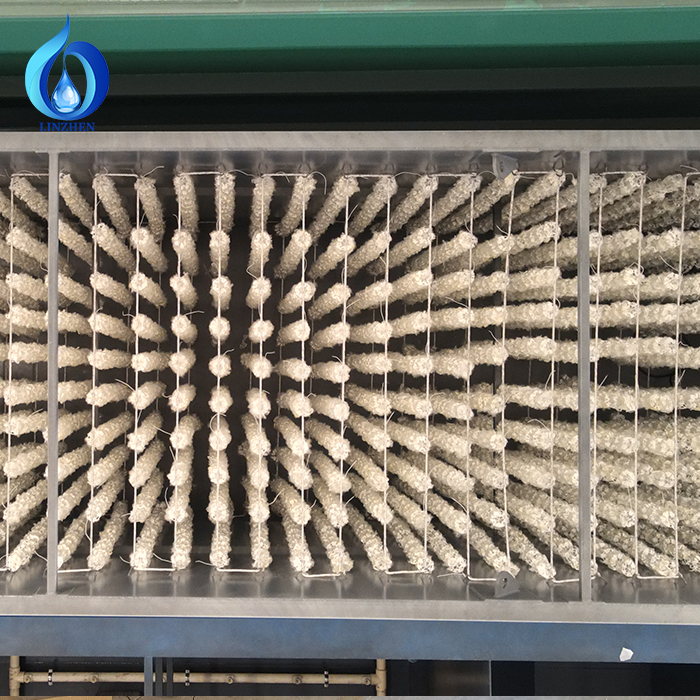

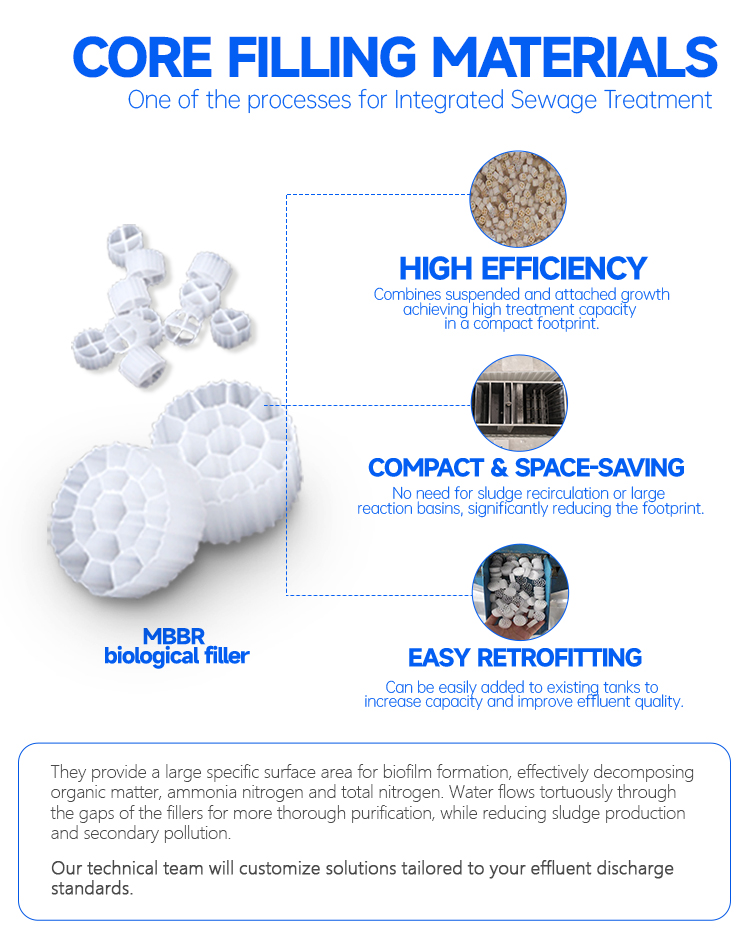

MBBR (Moving Bed Biofilm Reactor) is an advanced biological wastewater treatment process that uses suspended biofilm carriers (bio media) as a surface for microorganisms to grow and thrive.
During operation, microorganisms form a biofilm on the surface of the carriers, which remain continuously suspended and in motion by aeration. This ensures full contact between the biofilm and the wastewater, significantly improving the removal efficiency of organic pollutants and ammonia nitrogen (NH₃-N).
Compared with the conventional activated sludge process, the MBBR system offers higher biomass concentration, greater resistance to hydraulic and organic shock loads, and a smaller installation footprint. These advantages contribute to stable treatment performance, lower maintenance requirements, and improved operational reliability.
MBBR technology is suitable for both newly constructed wastewater treatment plants and the expansion or upgrading of existing treatment facilities, providing a flexible and cost-effective solution for municipal and industrial wastewater treatment.

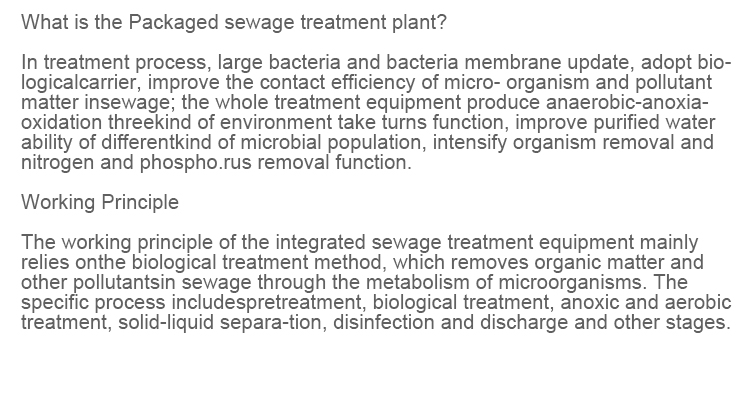

In treatment process, large bacteria and bacteria membrane update, adopt bio-logicalcarrier, improve the contact efficiency of micro- organism and pollutantmatter insewage; the whole treatment equipment produce anaerobic-anoxia-oxidation threekind of environment take turns function, improve purified waterability of differentkind of microbial population, intensify organism removal andnitrogen and phospho.rus removal function.

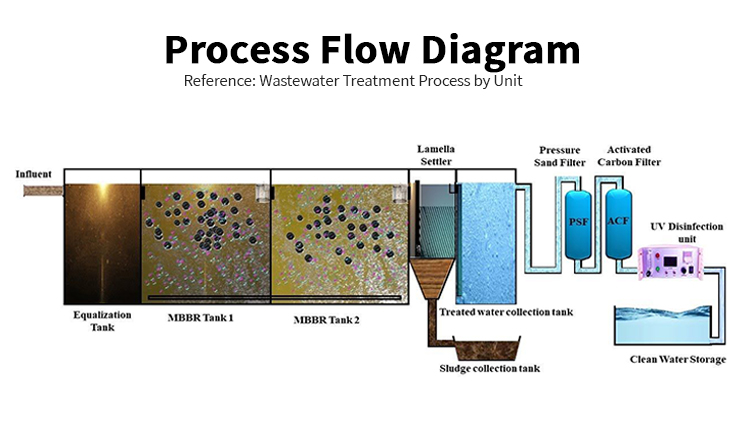

The Linzhen MBBR system combines advanced biological treatment with intelligent process control to ensure stable wastewater purification under varying operating conditions.
Wastewater first passes through screening and grit removal equipment to eliminate large debris and protect downstream equipment.
The equalization tank balances wastewater flow and pollutant concentration, reducing hydraulic fluctuations and ensuring stable biological treatment.

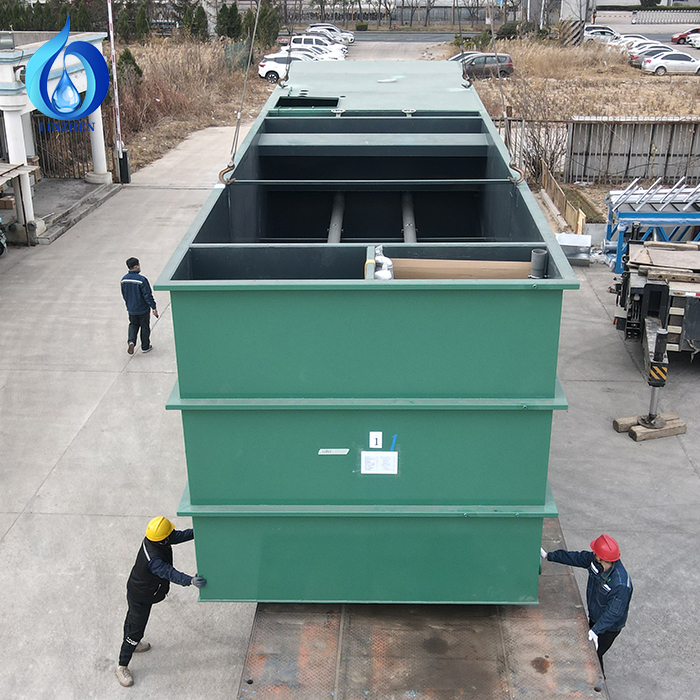

Inside the reactor, suspended biofilm carriers continuously circulate through aeration. Microorganisms attached to the carrier surfaces metabolize organic pollutants while simultaneously carrying out nitrification and denitrification processes.
The moving bio media provides:
This significantly improves pollutant removal efficiency.
The treated water flows into a clarifier where suspended solids are separated from the purified water. Part of the sludge is recycled, while excess sludge is removed for further dewatering.
Depending on project requirements, UV disinfection or chemical dosing ensures the treated water complies with local discharge standards or water reuse regulations.

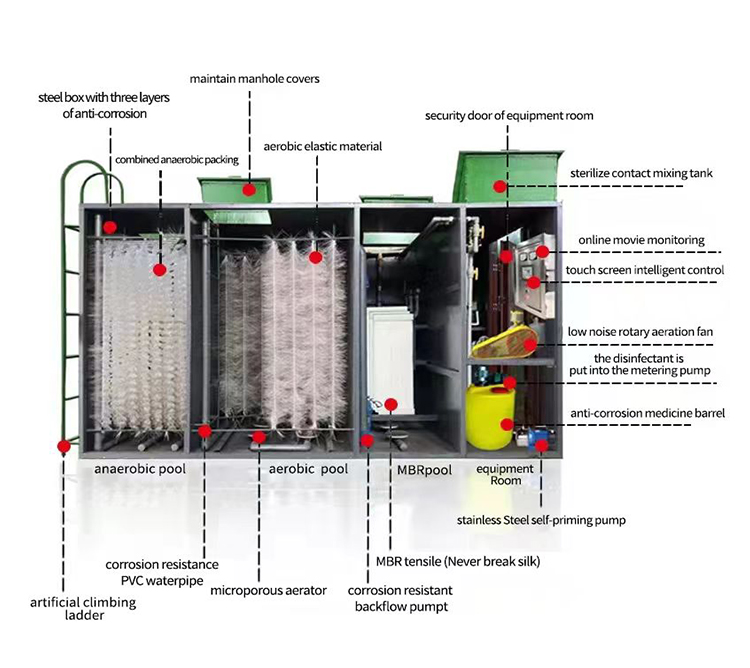

The working principle of the integrated sewage treatment equipment mainly relies on the biological treatment method, which removes organic matter andother pollutantsin sewage through the metabolism of microorganisms. Thespecific process includespretreatment, biological treatment, anoxic and aerobic treatment, solid-liquid separa-tion, disinfection and discharge and other stages.
High Treatment Efficiency
Large biofilm surface area ensures efficient removal of COD, BOD, and ammonia.
Compact Footprint
Higher biomass concentration reduces tank volume requirements.
Easy Retrofit
Ideal for upgrading existing wastewater treatment plants without major civil modifications.
Strong Shock Load Resistance
Stable performance under fluctuating wastewater quality and flow.
Low Sludge Production
Reduced excess sludge lowers disposal costs.

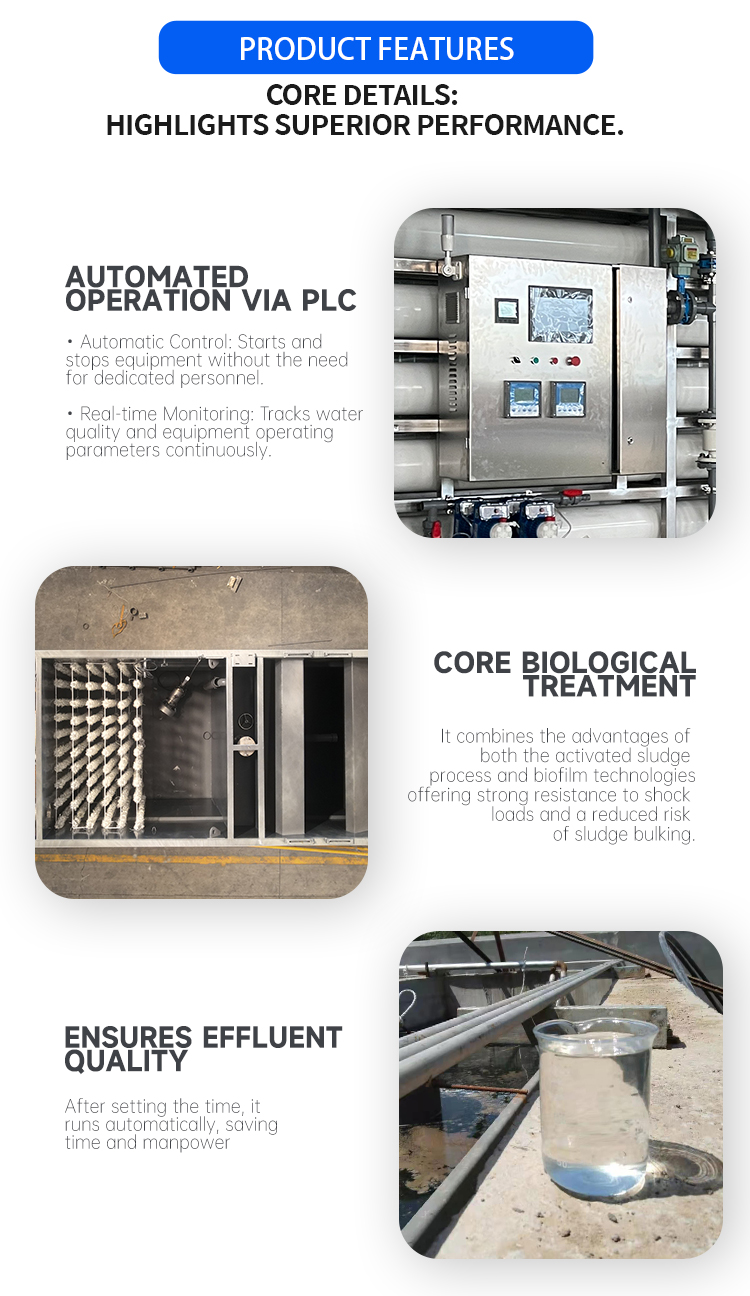

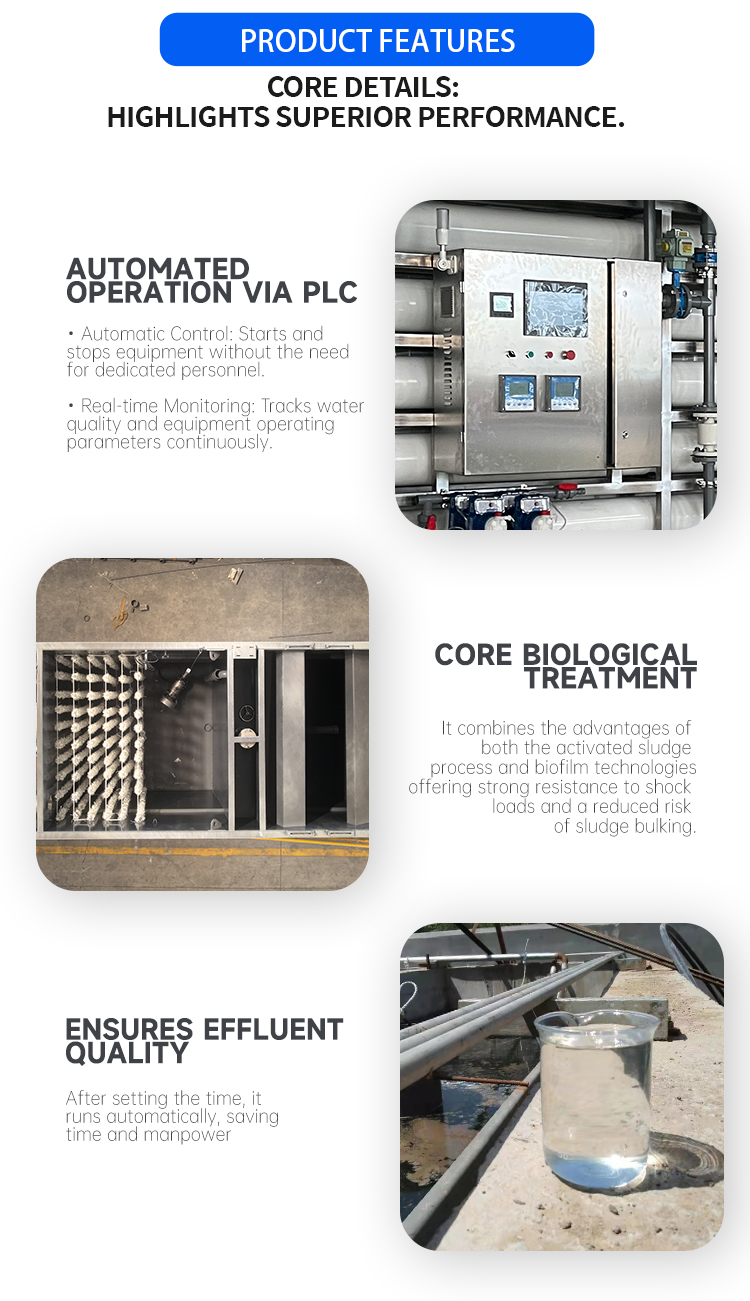

Automatic PLC Control
Supports remote monitoring and automated operation.
Low Maintenance
Minimal operator intervention and long service life.
| Parameter | Specification |

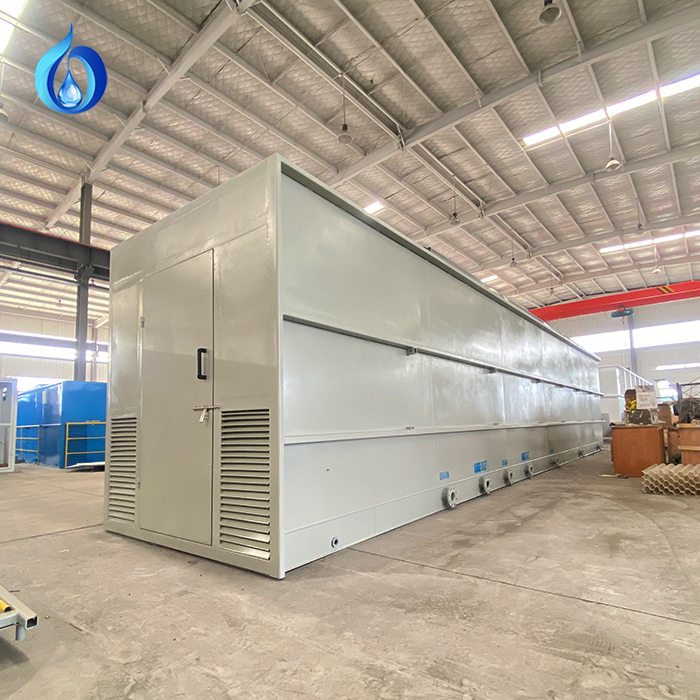

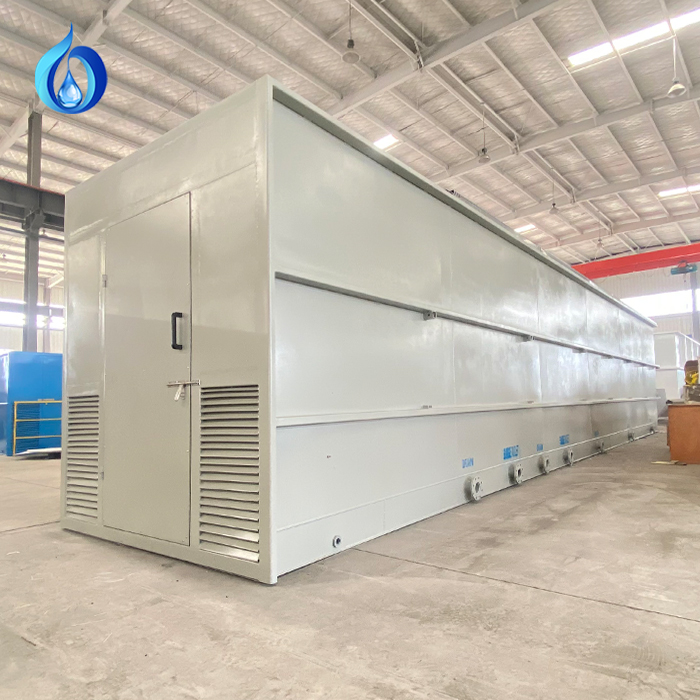

| Product Name | MBBR Rural Domestic Sewage Treatment Plant |
| Treatment Capacity | 1–200 m³/h |
| Productivity | 1–200 m³/h |
| Technology | Moving Bed Biofilm Reactor (MBBR) |
| Application | Rural Domestic Sewage Treatment |
| Applicable Industries | Hotels, Residential Communities, Food & Beverage Factories, Manufacturing Plants, Restaurants, Commercial Buildings, Industrial Facilities, Energy & Mining, Municipal Projects |
| Material | Anti-corrosion Carbon Steel / Stainless Steel |
| Voltage | 220V–480V (Customizable) |
| Control System | Automatic / Manual PLC Control |

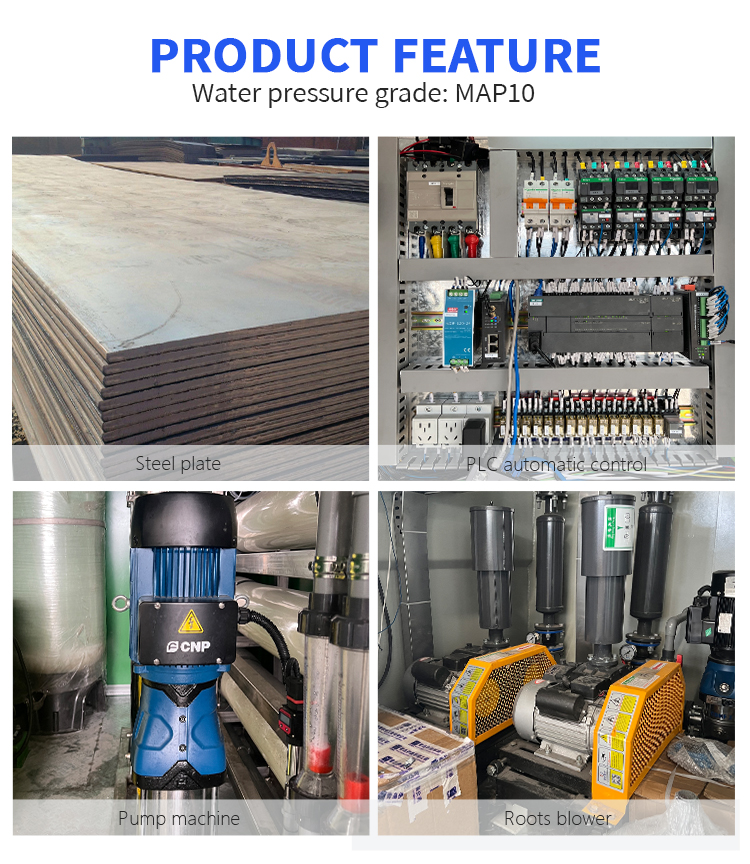

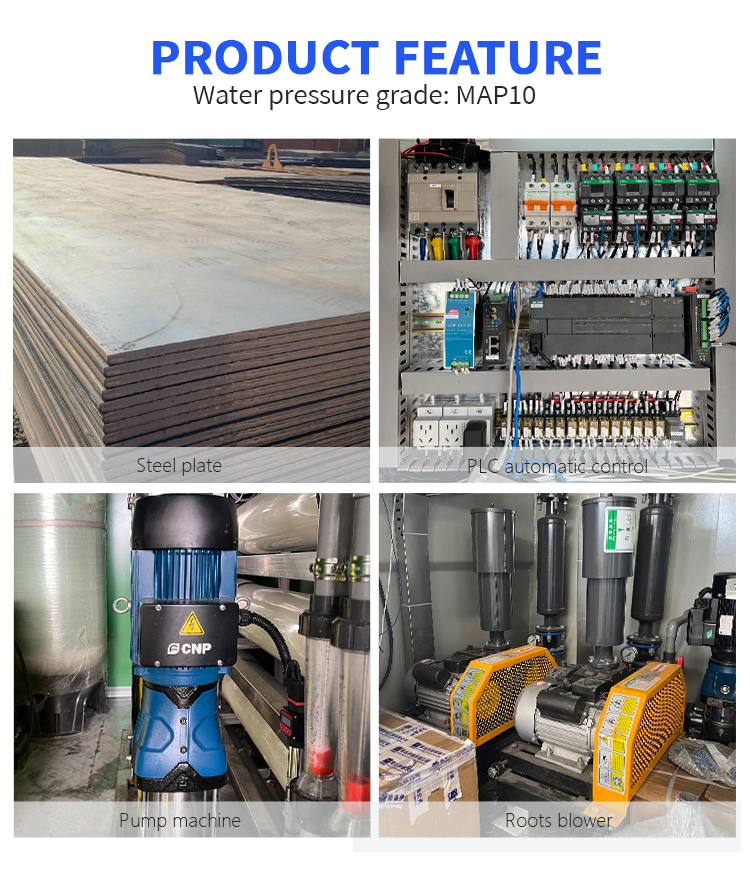

| Core Components | Pump, Motor, PLC |
| Weight | 8,000 kg |
| Color | Customized |
| Condition | New |
| Place of Origin | Shandong, China |
| Certification | CE, ISO |
| Warranty | 1 Year |
| Warranty of Core Components | 1 Year |
| Video Outgoing Inspection | Provided |
| Machinery Test Report | Available Upon Request* |
| Minimum Order Quantity (MOQ) | 1 Set |
| Showroom Locations | Canada, Vietnam, Philippines, Peru, Indonesia, Mexico, Thailand, Colombia, Malaysia, Australia |
| Marketing Type | Hot Product |
The Linzhen MBBR Wastewater Treatment System is suitable for a wide range of municipal, commercial, and industrial wastewater treatment projects.
The MBBR process performs exceptionally well in industries with biodegradable wastewater, including:
The compact design makes the system ideal for:
1. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area
(connect us for more details)
2. How to pay?
A: producing,70% balance before loading by TT.
3. What is the delivery time?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before
4.When will it be shipped after I place the order？
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks
5.How to pack the products?
A:We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
6. How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we aint strictly according to the standard process.
7. How do you manufacture your equipment?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending
8. How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send techni-by buyers to help you. However, the visa fee, air tickets, accommodation, wages will be paid
