Product Overview

Textile dyeing, chemical manufacturing, and industrial processing facilities generate wastewater with high concentrations of organic pollutants, suspended solids, colorants, surfactants, oils, salts, and other contaminants. Conventional treatment facilities usually require a large construction footprint, lengthy installation cycles, and substantial capital investment in civil engineering works.

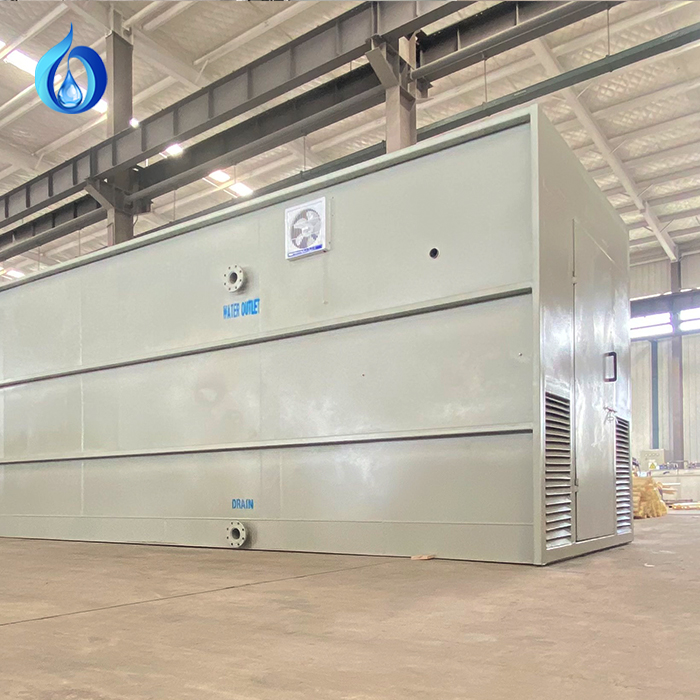

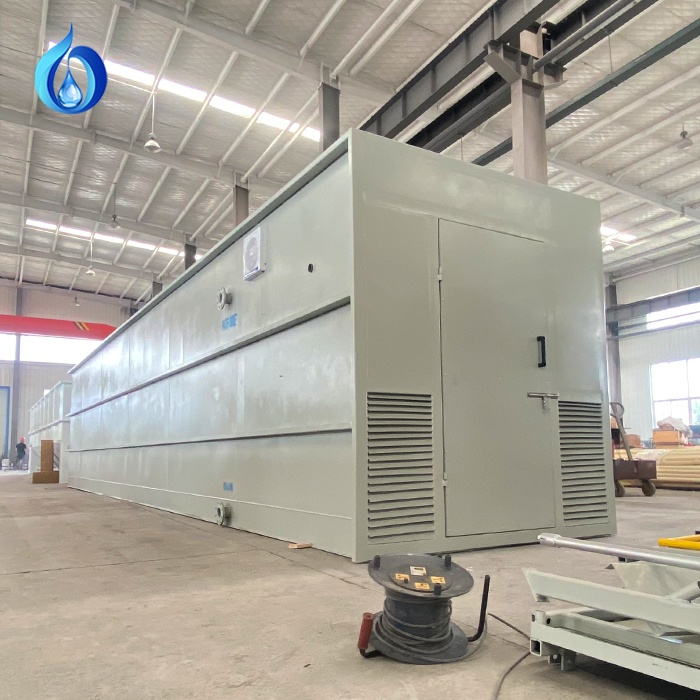

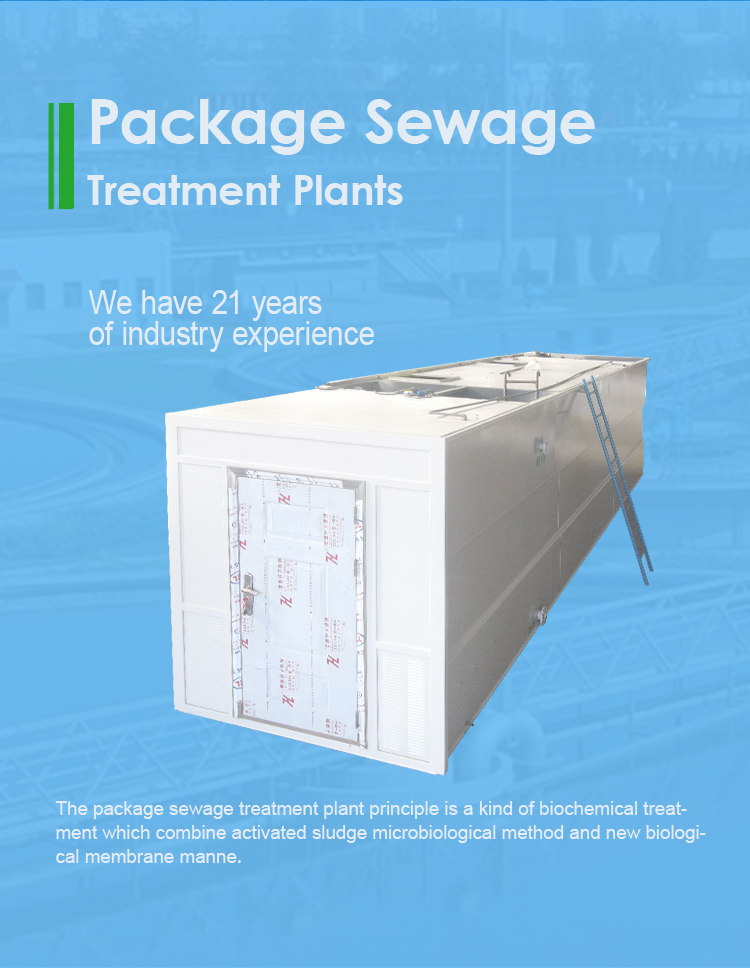

Our Packaged Wastewater Treatment Plant is engineered as a compact, factory-prefabricated solution that arrives ready for fast installation and commissioning. Each unit is fully fabricated, assembled, and tested before delivery, making it ideal for new industrial projects or retrofits of existing wastewater treatment facilities. The system reliably removes COD, BOD, SS, ammonia nitrogen, color, and other pollutants, ensuring that treated effluent meets local discharge or reuse standards.

Featuring a flexible, modular design, every system can be fully customized according to wastewater characteristics, treatment capacity, discharge requirements, and available installation space.

Designed for Textile and Chemical Wastewater

Textile and chemical wastewater is among the most challenging industrial streams because of its complex and variable composition. Typical wastewater characteristics include:

• High COD and BOD concentrations

• Strong color and dye residues

• High suspended solids

• Surfactants, oils, and grease

• Variable pH and high salinity

• Ammonia nitrogen and difficult-to-degrade organic compounds

Our engineering team designs the treatment train based on laboratory analysis and project requirements, ensuring stable operation under changing wastewater conditions. For textile wastewater, emphasis is placed on efficient color removal, suspended solids reduction, and biological degradation of organic pollutants. For chemical wastewater, treatment focuses on flow equalization, pH control, chemical precipitation, advanced oxidation when required, biological treatment, and final polishing before discharge or reuse.

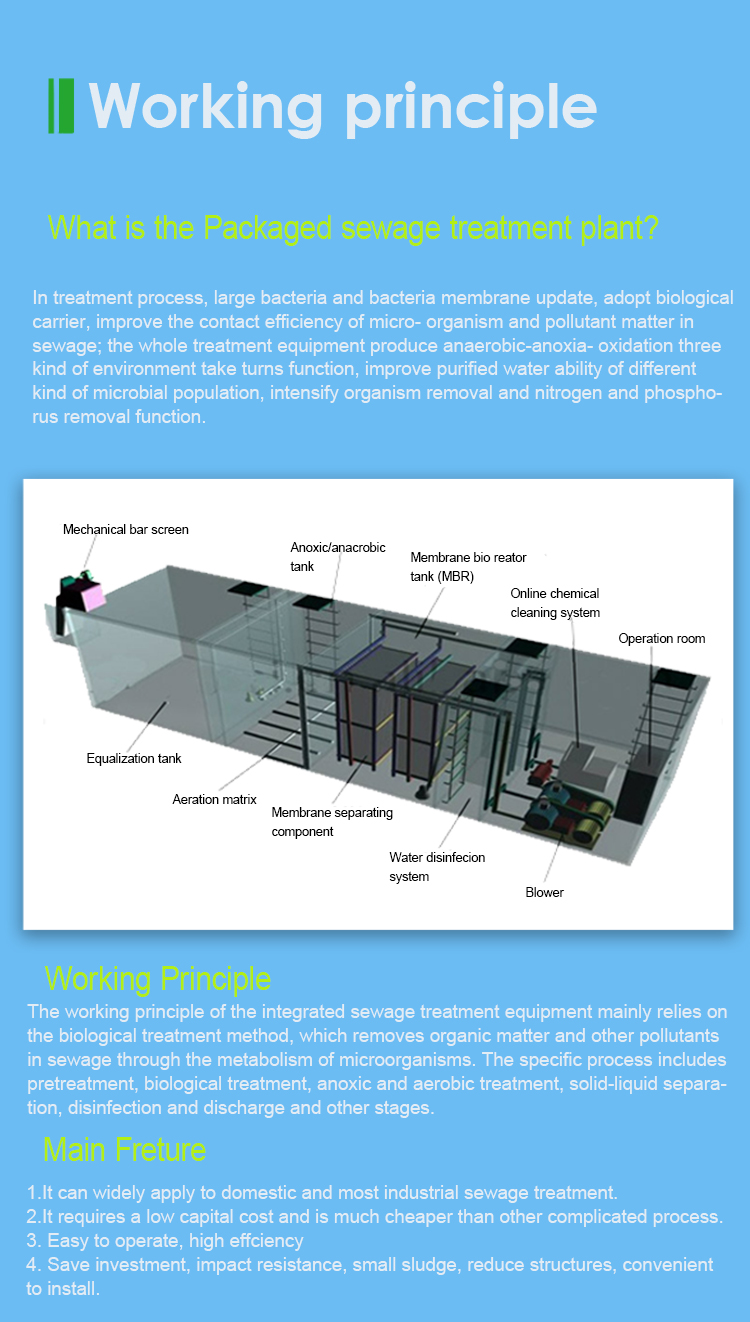

How the Packaged Treatment Plant Works

Although every project is customized, a typical integrated flow includes several treatment stages:

Step 1 – Wastewater Collection and Equalization Wastewater enters an equalization tank where flow and pollutant concentrations are stabilized, helping downstream processes operate consistently.

Step 2 – Mechanical Screening A mechanical bar screen removes large solids, debris, and fibers that could damage downstream equipment or disrupt biological treatment.

Step 3 – Chemical Pretreatment Coagulants and flocculants remove suspended solids, emulsified oil, and heavy particles. When necessary, a Dissolved Air Flotation (DAF) unit separates light, floating contaminants from the water.

Step 4 – Biological Treatment The biological reactor removes dissolved organic matter through microorganisms. Depending on the project requirements, the system may use:

• A/O Process (Anoxic/Oxic) for nitrogen and phosphorus removal

• MBBR (Moving Bed Biofilm Reactor) for high-effluent biofilm treatment

• MBR (Membrane Bioreactor) for advanced solid-liquid separation and reuse-quality water

• SBR (Sequencing Batch Reactor) for flexible batch biological treatment

Step 5 – Solid-Liquid Separation Sedimentation, lamella clarifiers, or membrane filtration separate treated water from activated sludge, producing clear, stable effluent.

Step 6 – Advanced Treatment and Disinfection Additional filtration, activated carbon adsorption, or membrane treatment may be included when higher water quality or reuse standards are required. The final treated water is disinfected before discharge or recycling within the production process.

Step 7 – Sludge Handling Excess sludge is dewatered using a multi-plate screw press, belt filter press, or sludge dewatering unit to reduce volume and disposal cost.

Key Features & Benefits

High Treatment Efficiency The integrated multi-stage process effectively removes COD, BOD, suspended solids, ammonia nitrogen, color, and other industrial pollutants from wastewater.

Customized Engineering Every packaged wastewater treatment plant is designed according to wastewater analysis, production capacity, site layout, and local environmental regulations.

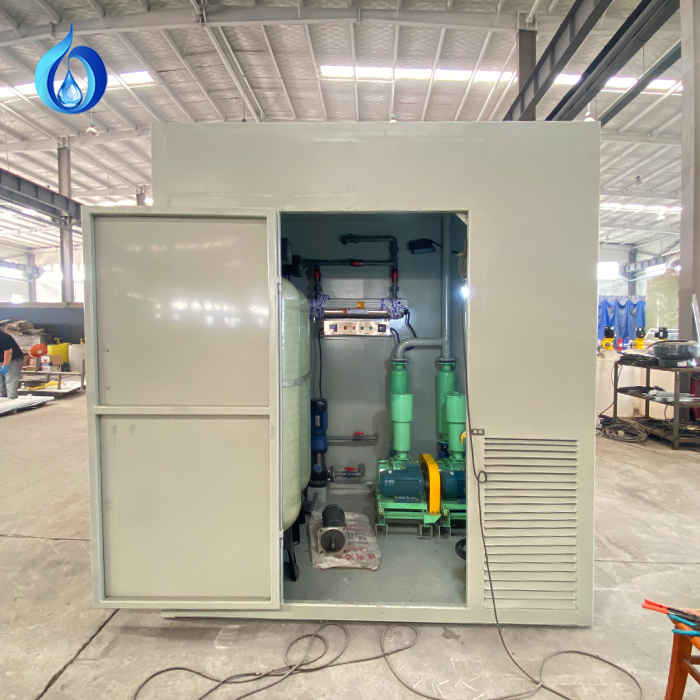

Compact, Plug-and-Play Design Because the system is prefabricated and tested in the factory, it minimizes civil works, shortens construction time, and reduces installation costs.

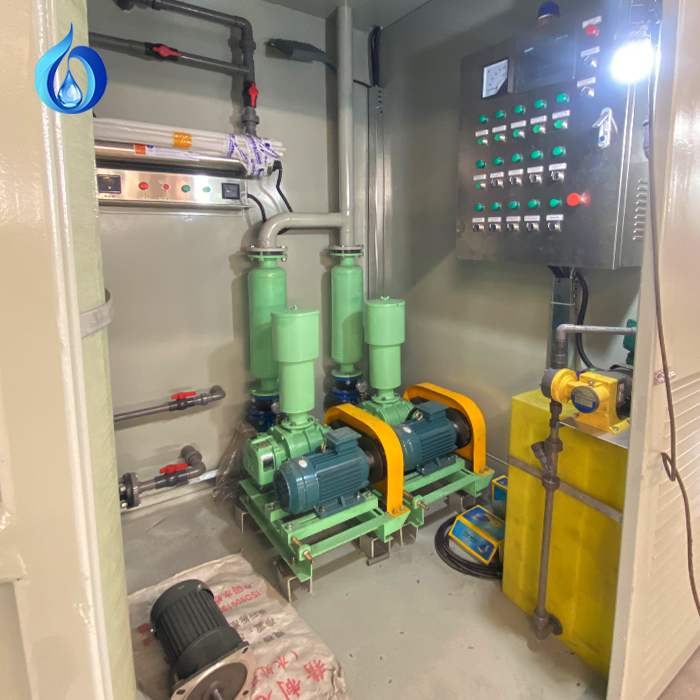

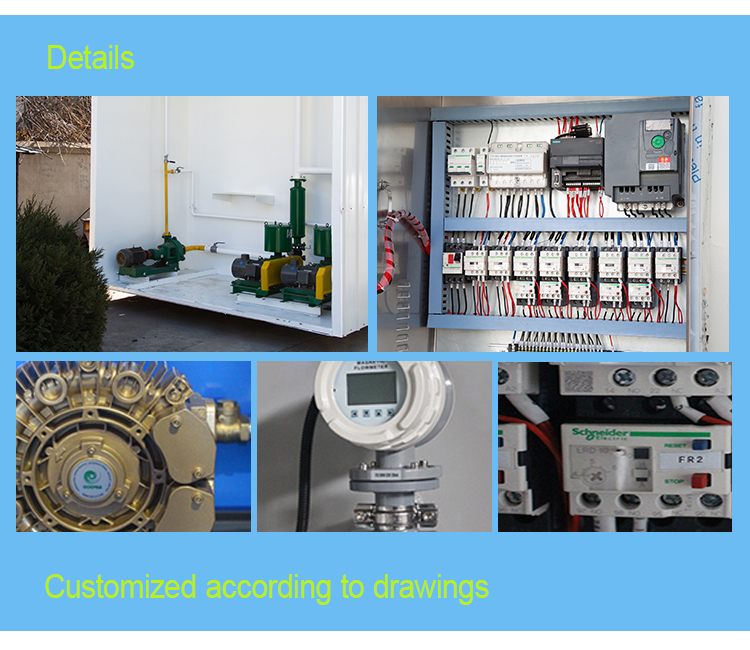

Stable Automatic Operation A PLC-based control system automatically monitors pumps, blowers, dosing systems, valves, and alarms, reducing manual operation and the risk of human error.

Durable Construction Equipment is available in carbon steel with anti-corrosion coating or SUS304 / SUS316 stainless steel for a long service life under demanding industrial conditions. Anti-corrosion paint from recognized coating suppliers is applied according to standard surface-preparation processes.

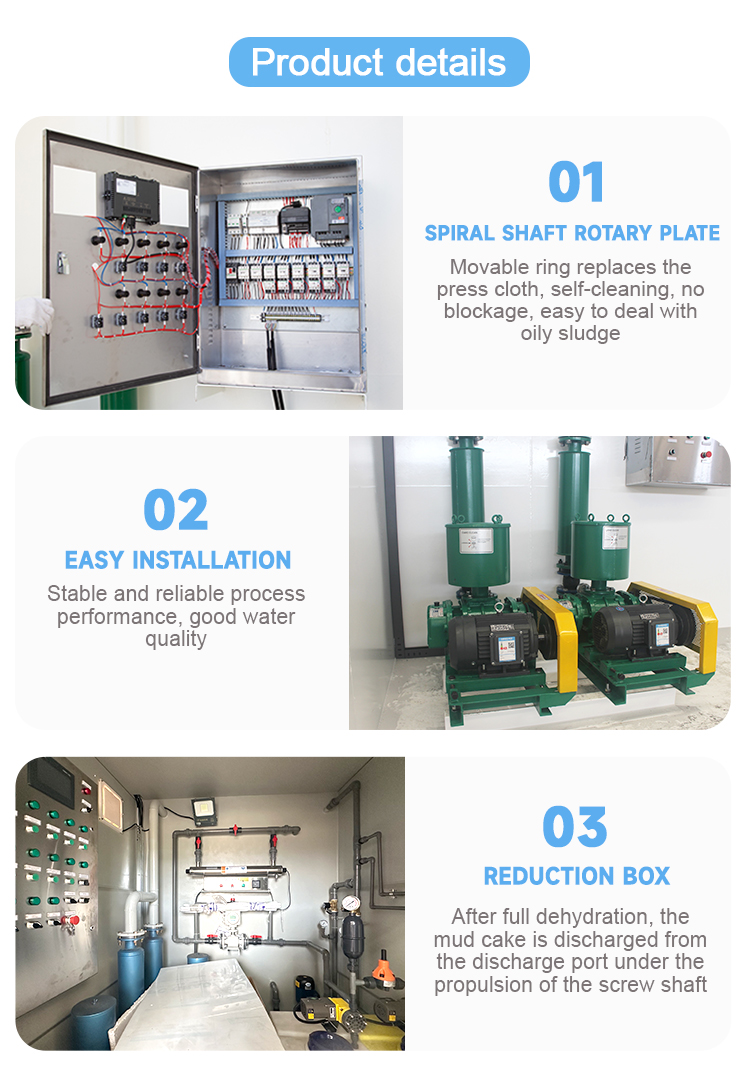

Low Maintenance & Easy Operation Modular equipment simplifies inspection, maintenance, and replacement of key components, minimizing downtime. Spiral-shaft rotary plate technology provides self-cleaning operation with no blockage, even for oily sludge.

Energy-Efficient Design Optimized aeration systems and intelligent process control reduce operating costs without sacrificing treatment performance.

Multiple Installation Options Systems can be supplied above-ground, underground, or inside a containerized enclosure for easy transport and deployment.

Typical Technical Specifications

Quality, Certification & Manufacturing

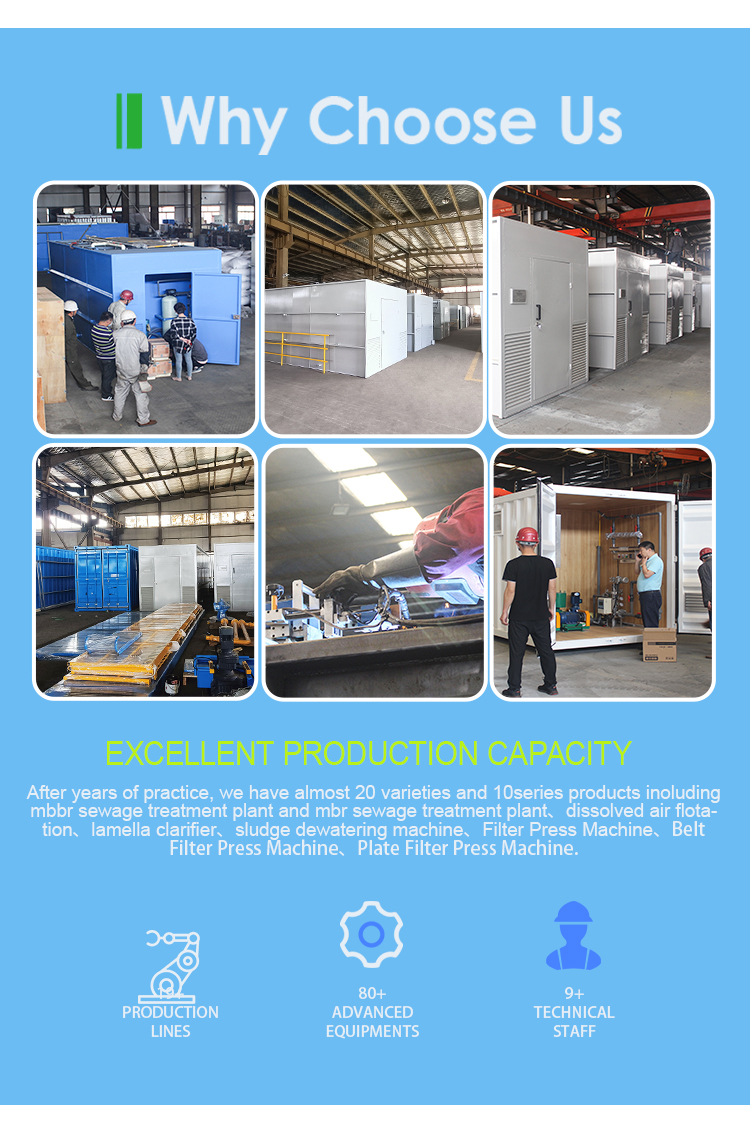

The plant is manufactured using modern fabrication methods, including laser/plasma cutting, automatic welding, and CNC cutting and bending, ensuring dimensional accuracy and weld quality. The system is supported by ISO 9001 quality management and CE compliance certifications, reflecting consistent design, manufacturing, and inspection standards.

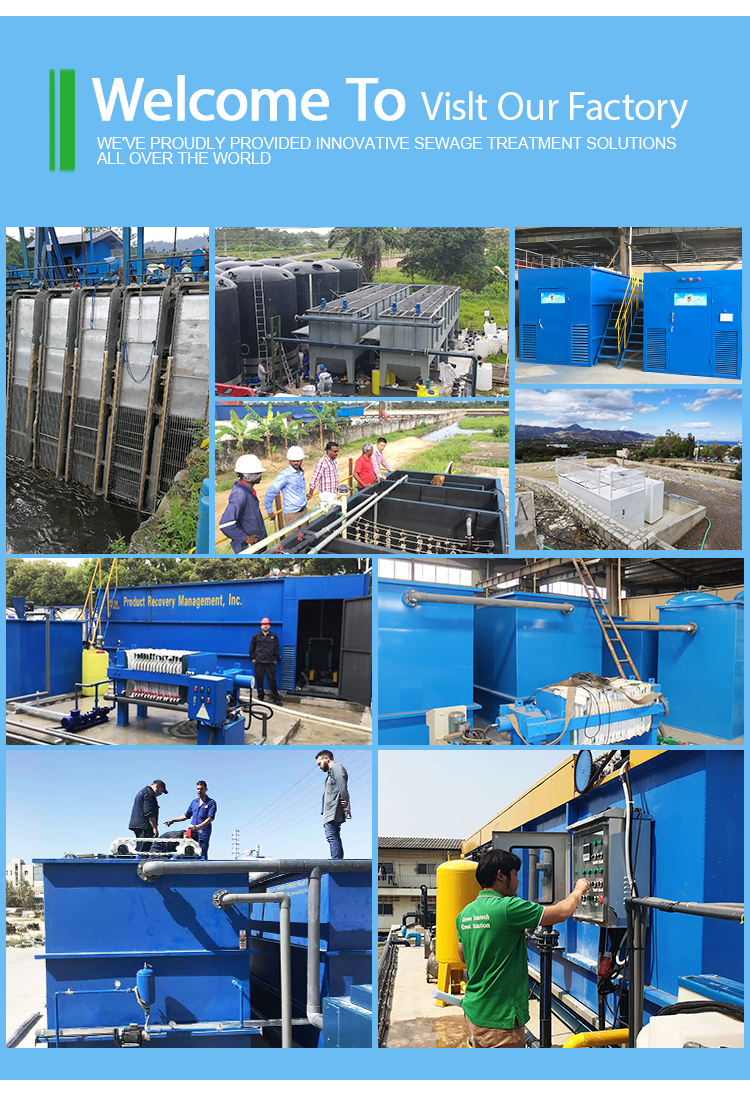

The supplier has extensive export experience, with installations delivered to many regions worldwide. Overseas installation teams provide on-site guidance and commissioning support when required.

Pre-Sale & After-Sales Support

We provide full technical support from inquiry through commissioning and beyond:

• Inquiry & Consulting: 3D design, sampling check, factory visiting, and timely quotation.

• Installation Instruction: Operation demonstration, technical support, and video technical support.

• Commissioning: Remote or on-site commissioning assistance to bring the system online quickly and safely.

• Spare Parts Supply: A global parts network helps customers maintain their equipment with minimal downtime.

Frequently Asked Questions

How do I select the right system for my project? Provide your water source, raw water quality, required flow rate, and available ground area. Our engineering team will recommend a suitable process flow and equipment configuration.

What is the delivery time? Delivery typically takes 4–6 weeks after order confirmation, depending on order quantity and customization level.

How is the equipment packed? We use standard export packaging. Special packaging requirements can be accommodated; any additional packaging fees are paid by the customer.

What are your payment terms? TT (Telegraphic Transfer) and L/C (Letter of Credit) are acceptable. We typically ask for a 30% deposit before production and the remaining 70% before loading.

How do you prevent corrosion? We use world-recognized anti-corrosion coatings and apply them strictly according to standard surface-treatment processes. Stainless steel options (SS304 / SS316) are also available for highly corrosive environments.

How is the system installed after delivery? We provide detailed installation illustrations and manuals. If necessary, we can dispatch technicians to assist on-site; visa, airfare, accommodation, and wages are covered by the buyer.

Request a Custom Wastewater Treatment Solution

Every textile and chemical wastewater project presents unique treatment challenges. Our engineering team can develop a custom packaged wastewater treatment plant based on your wastewater characteristics, treatment capacity, available installation space, and discharge or reuse requirements.

Contact us today to receive a tailored process proposal, technical consultation, and competitive quotation for your industrial wastewater treatment project.

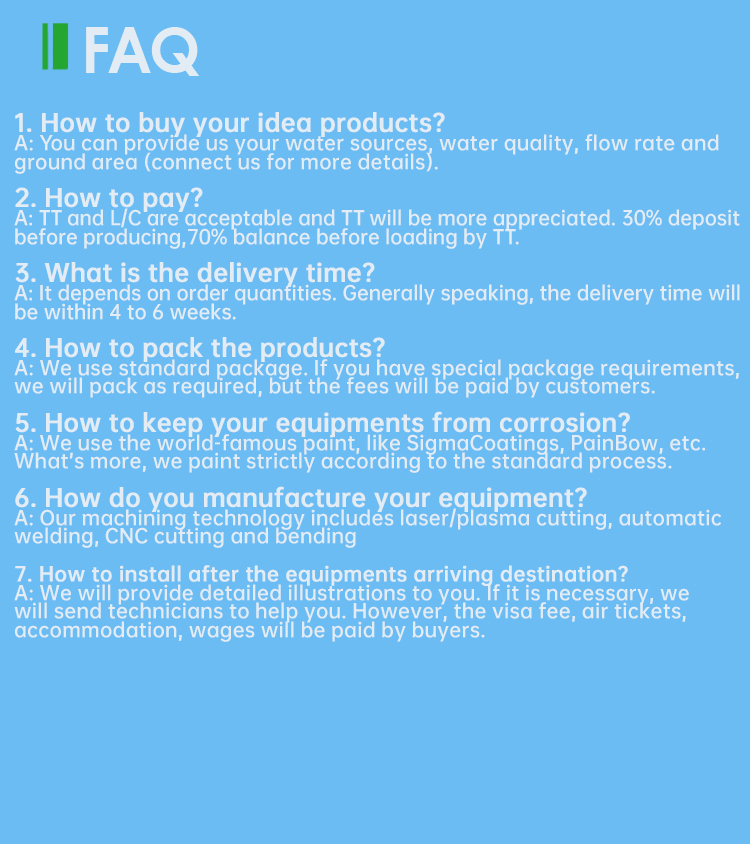

FAQ

How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What’s more, we paint strictly according to the standard process.

How do you manufacture your equipment?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
