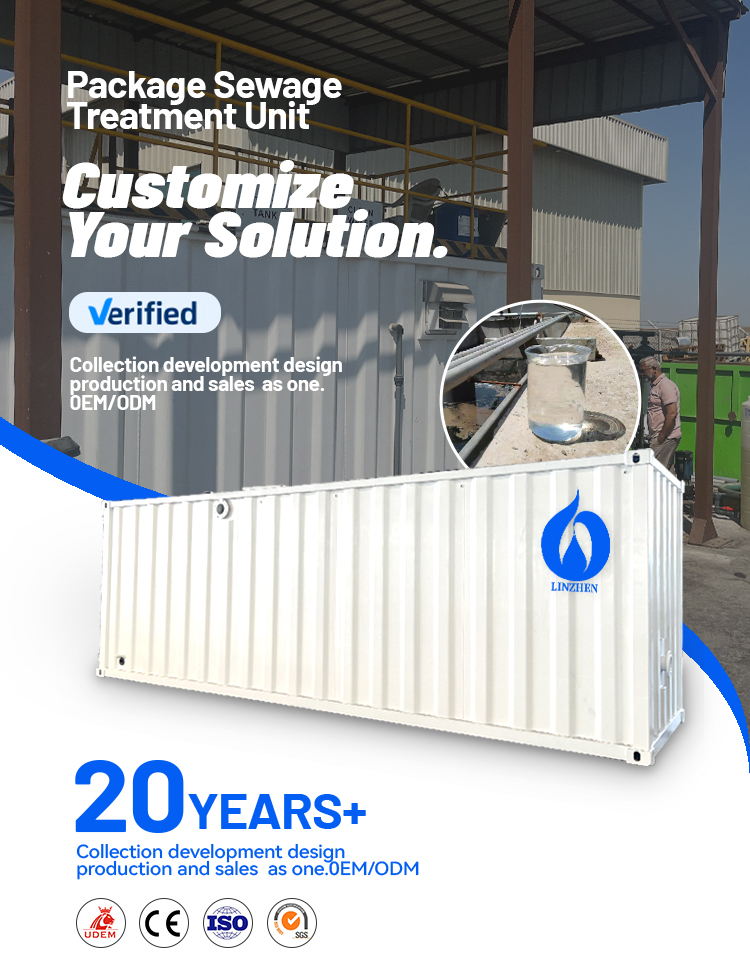

Product Overview

The LINZHEN MBBR Corrugated Package Sewage Treatment Unit developed by Qingdao Linzhen Environment Project Co., Ltd. is a fully integrated, modular wastewater treatment solution based on advanced Moving Bed Biofilm Reactor (MBBR) technology.

Designed for municipal sewage treatment, industrial wastewater treatment, decentralized wastewater projects, and water reuse applications, this containerized treatment system integrates multiple processes including equalization, biological degradation, solid-liquid separation, filtration, and disinfection into one compact and transportable structure.

Unlike traditional concrete wastewater treatment plants that require long construction periods, complex civil engineering, and high installation costs, the LINZHEN corrugated containerized wastewater treatment system is:

• Factory manufactured
• Fully assembled
• Pre-piped and pre-wired
• Factory tested before shipment

After delivery, customers only need to complete foundation preparation, utility connection, and commissioning, reducing installation time from months to weeks.

With customized designs based on wastewater characteristics, treatment capacity, discharge standards, installation space, and local environmental regulations, LINZHEN provides reliable turnkey wastewater treatment solutions for customers worldwide.

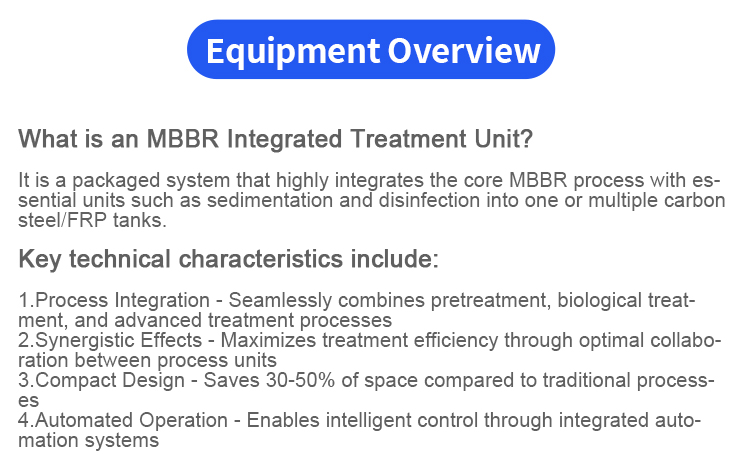

What Is an MBBR Integrated Treatment Unit?

An MBBR Integrated Wastewater Treatment Unit is a compact packaged sewage treatment system that combines Moving Bed Biofilm Reactor technology with sedimentation, filtration, and disinfection processes inside a single containerized structure.

The system utilizes specially designed biofilm carriers as a growth medium for microorganisms. These carriers move freely within the aerated reactor, allowing microorganisms to efficiently degrade organic pollutants and remove nitrogen compounds.

By combining suspended growth and attached growth biological treatment, MBBR technology provides:

• Higher biomass concentration
• Excellent resistance to shock loads
• Stable effluent quality
• Reduced sludge bulking problems
• Smaller installation footprint
• Lower maintenance requirements

The integrated design makes it an ideal solution for locations where construction time, land availability, and operating costs are critical factors.

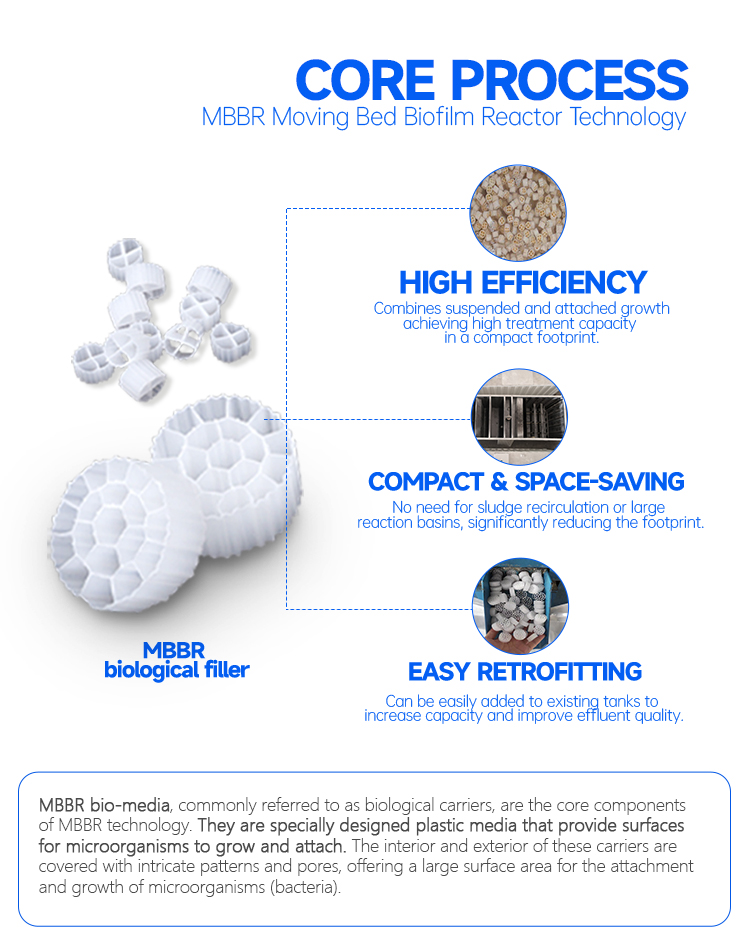

Core Process: MBBR Moving Bed Biofilm Reactor Technology

At the heart of the LINZHEN package sewage treatment unit is the advanced MBBR biological treatment process.

The system uses specially engineered plastic bio-media carriers with complex internal structures and large protected surface areas. These carriers provide an ideal environment for microorganisms to attach, grow, and form stable biofilms.

During operation:

1. Wastewater enters the biological reactor.
2. Bio-media carriers remain suspended through continuous aeration.
3. Microorganisms attached to the carriers degrade organic pollutants.
4. Nitrogen compounds are removed through biological nitrification and denitrification.
5. Treated wastewater proceeds to clarification, filtration, and disinfection.

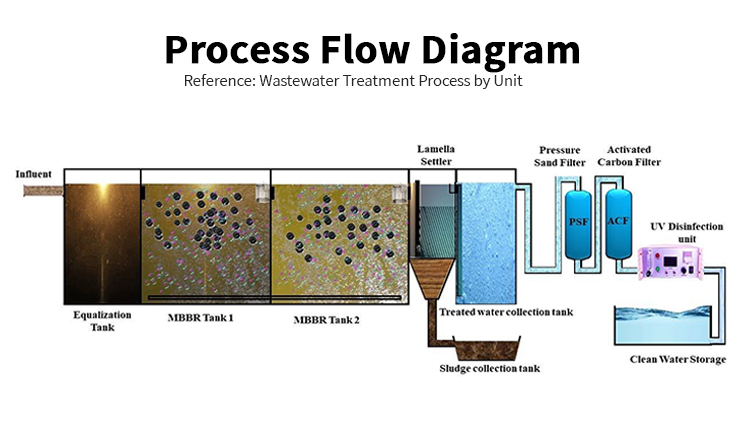

Process Flow

The system follows a multi-stage treatment path to produce discharge-quality or reusable effluent:

Equalization Tank — Balances flow and pollutant concentration.

MBBR Tank 1 — Primary biological degradation via suspended biofilm carriers.

MBBR Tank 2 — Secondary polishing of BOD, COD, and ammonia nitrogen.

Lamella Settler — Inclined plate settling for solid-liquid separation.

Treated Water Collection Tank — Stores clarified water before polishing.

Pressure Sand Filter (PSF) — Removes residual suspended solids.

Activated Carbon Filter (ACF) — Adsorbs organics, color, and odor.

UV Disinfection Unit — Chemical-free pathogen inactivation.

Clean Water Storage — Holds final treated water for discharge or reuse.

Key Technical Characteristics

The LINZHEN MBBR Integrated Treatment Unit is engineered around four core design principles:

• Process Integration — Seamlessly combines pretreatment, biological treatment, solid-liquid separation, filtration, and advanced disinfection in one continuous process.

• Synergistic Effects — Maximizes treatment efficiency through optimal collaboration between process units, ensuring stable performance under varying loads.

• Compact Design — Saves 30–50% of space compared to traditional processes, making it ideal for confined sites and mobile applications.

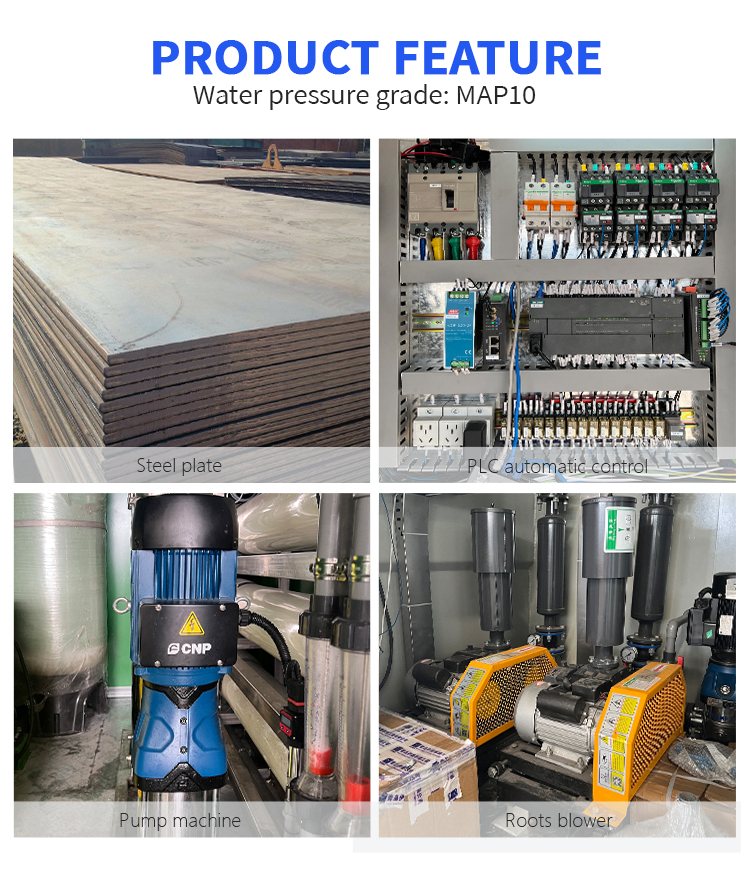

• Automated Operation — Enables intelligent control through integrated PLC automation, minimizing manual intervention and labor costs.

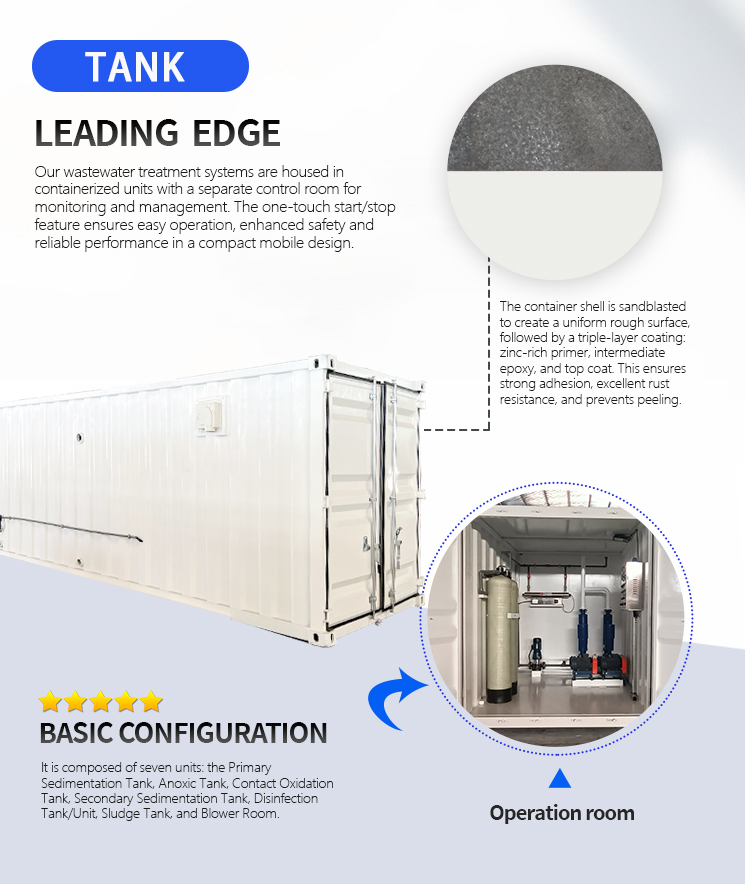

Construction Quality & Internal Components

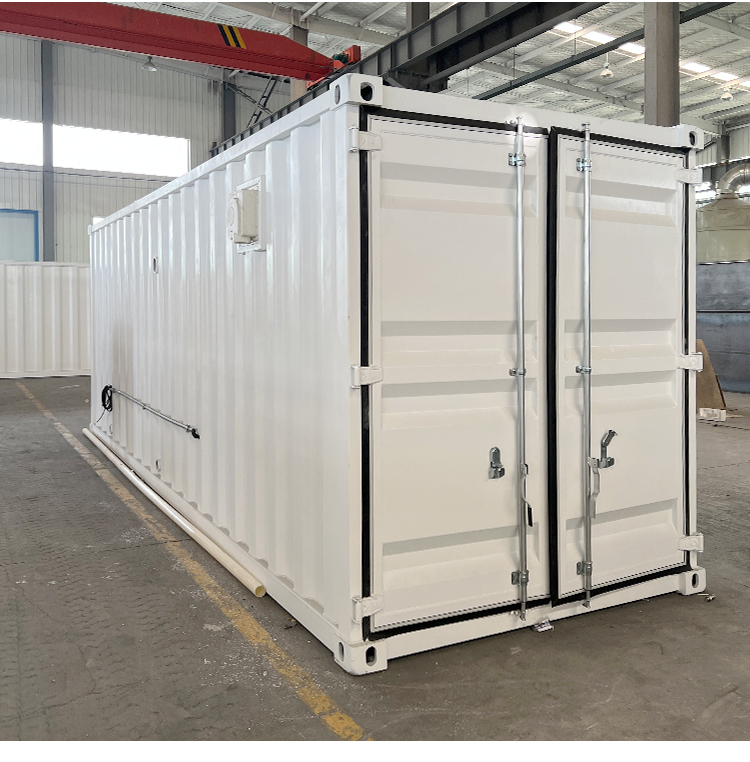

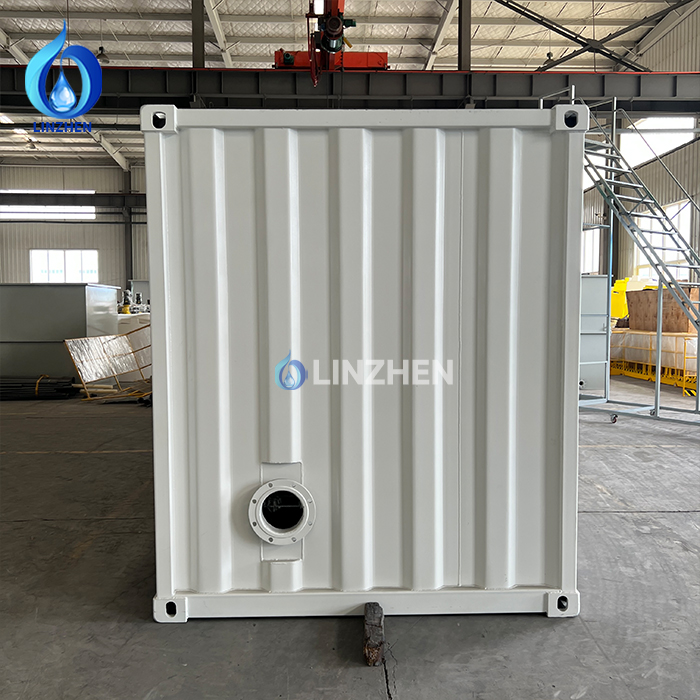

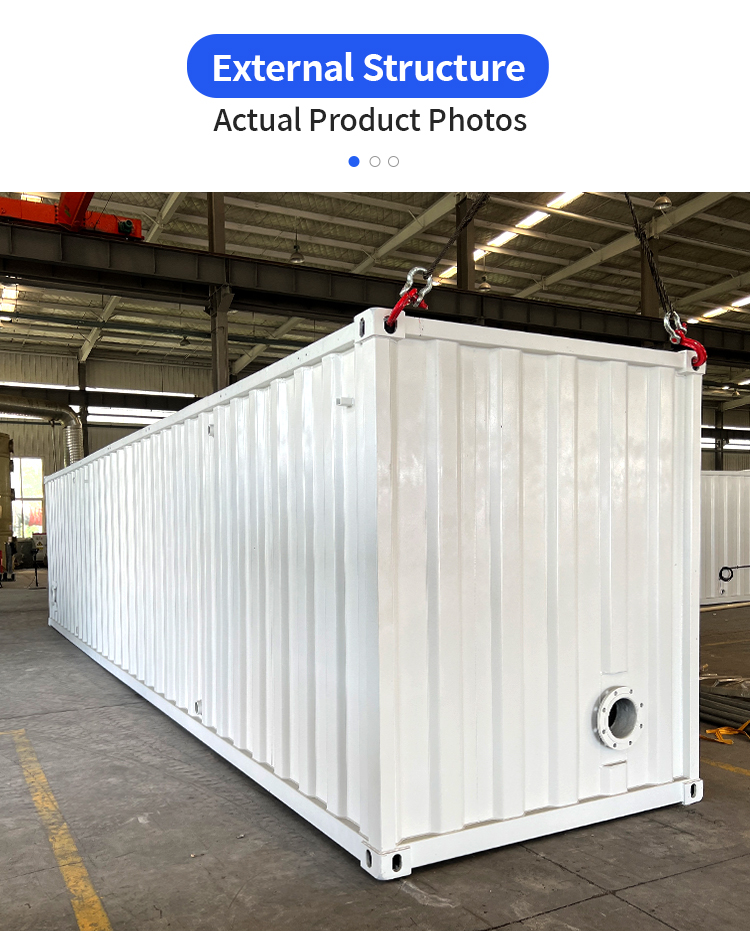

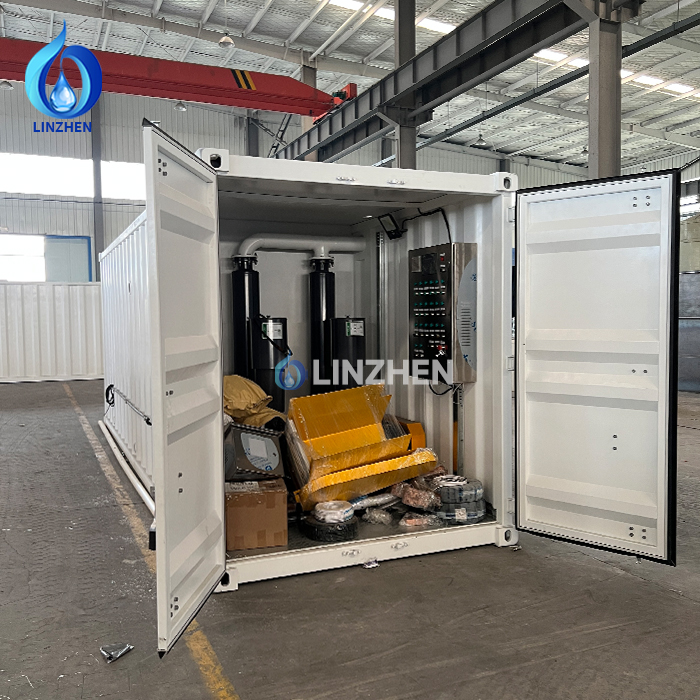

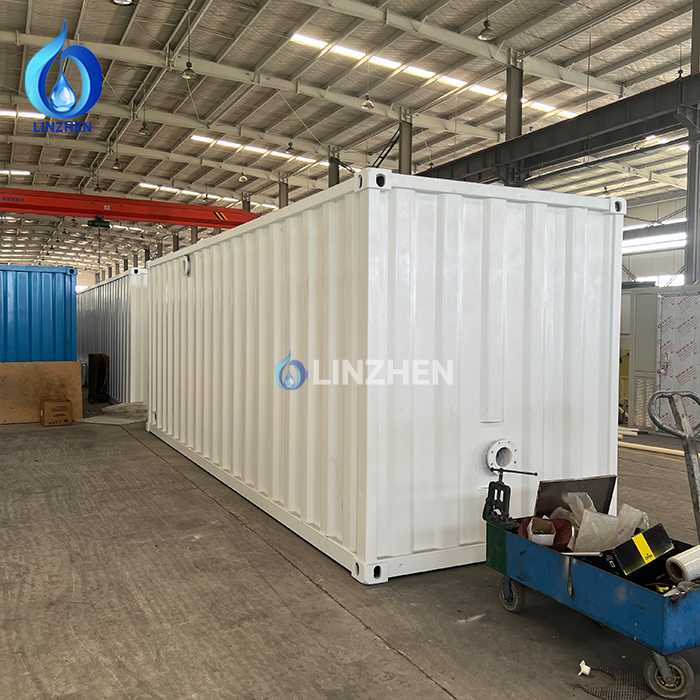

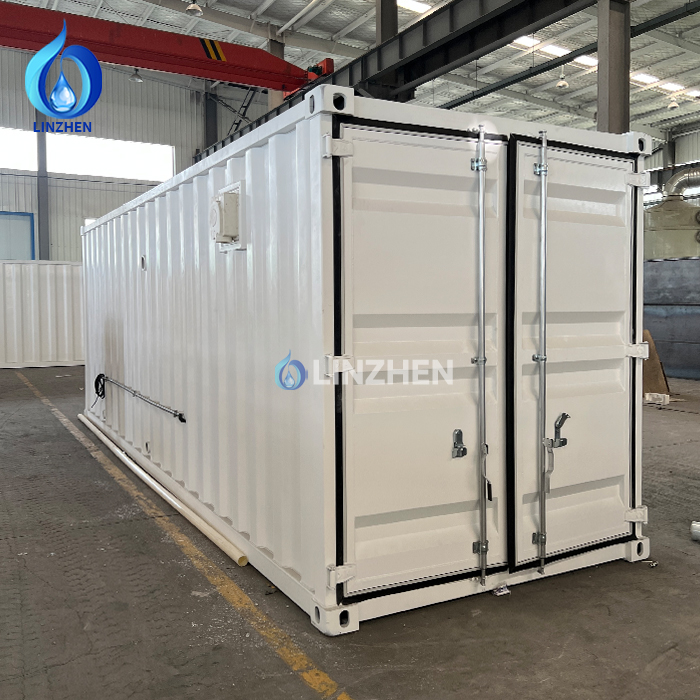

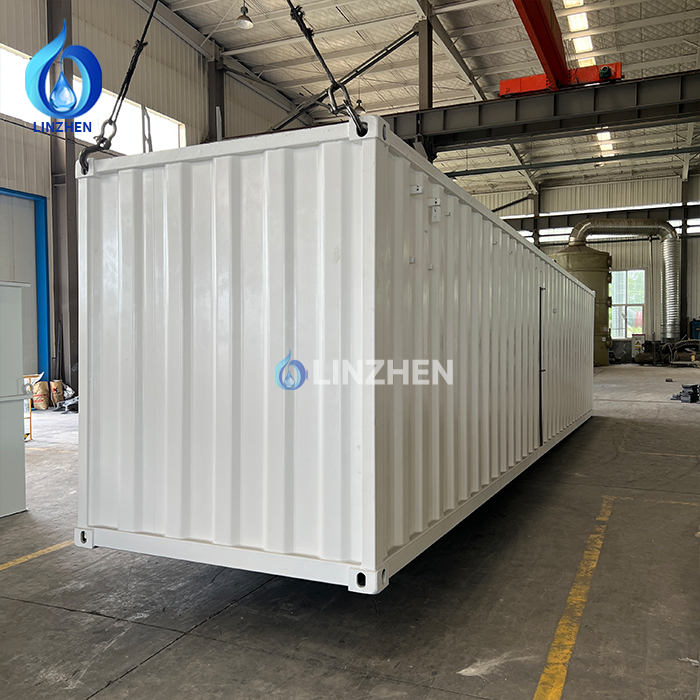

The unit is housed in a corrugated steel container that provides enhanced structural rigidity and durability for transportation and long-term outdoor operation. The container shell is sandblasted to create a uniform rough surface, then coated with a triple-layer anti-corrosion system — zinc-rich primer, intermediate epoxy coat, and protective top coat — ensuring strong adhesion, excellent rust resistance, and long-term surface protection.

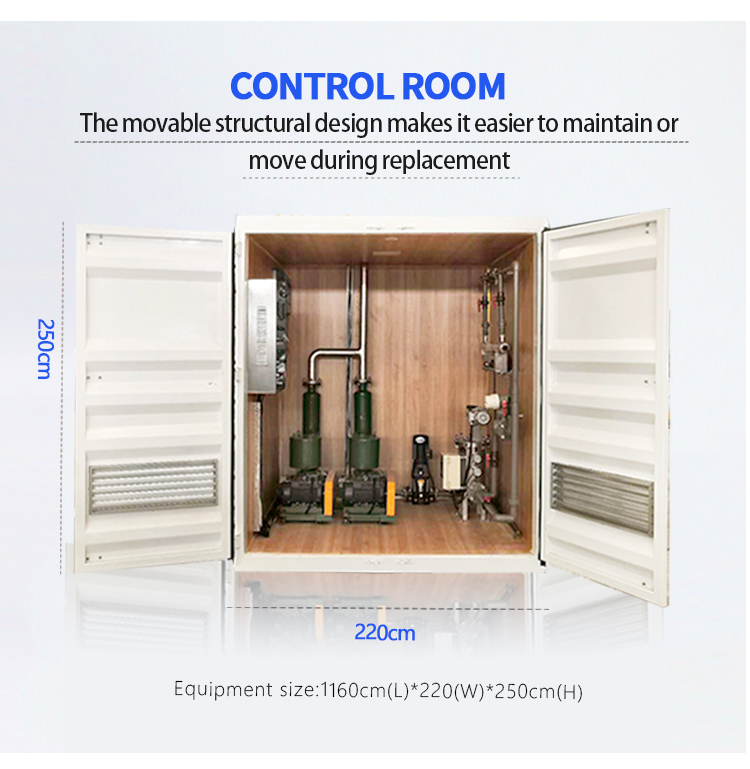

The movable structural design of the control room makes it easier to maintain or relocate during equipment replacement or system expansion.

Internal Components

Basic Configuration

The system is composed of seven integrated treatment units:

1. Primary Sedimentation Tank — Removes settleable solids and reduces organic loading.

1. Anoxic Tank — Provides denitrification conditions for nitrogen removal.

1. Contact Oxidation Tank — Houses MBBR bio-media for aerobic biological treatment.

1. Secondary Sedimentation Tank — Separates biomass and suspended solids from treated water.

1. Disinfection Tank / Unit — Houses UV or chemical disinfection equipment.

1. Sludge Tank — Collects and temporarily stores excess sludge.

1. Blower Room — Contains air blowers, pumps, and electrical control panels.

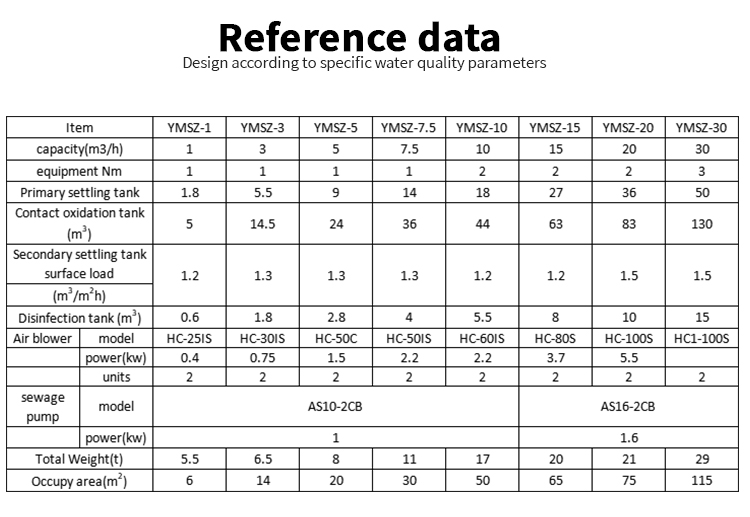

Technical Specifications & Reference Data (YMSZ Series)

Voltage options: 220V / 230V / 380V / 400V / 415V / 460V / 480V. Custom capacities and configurations are available upon request.

Why Choose LINZHEN?

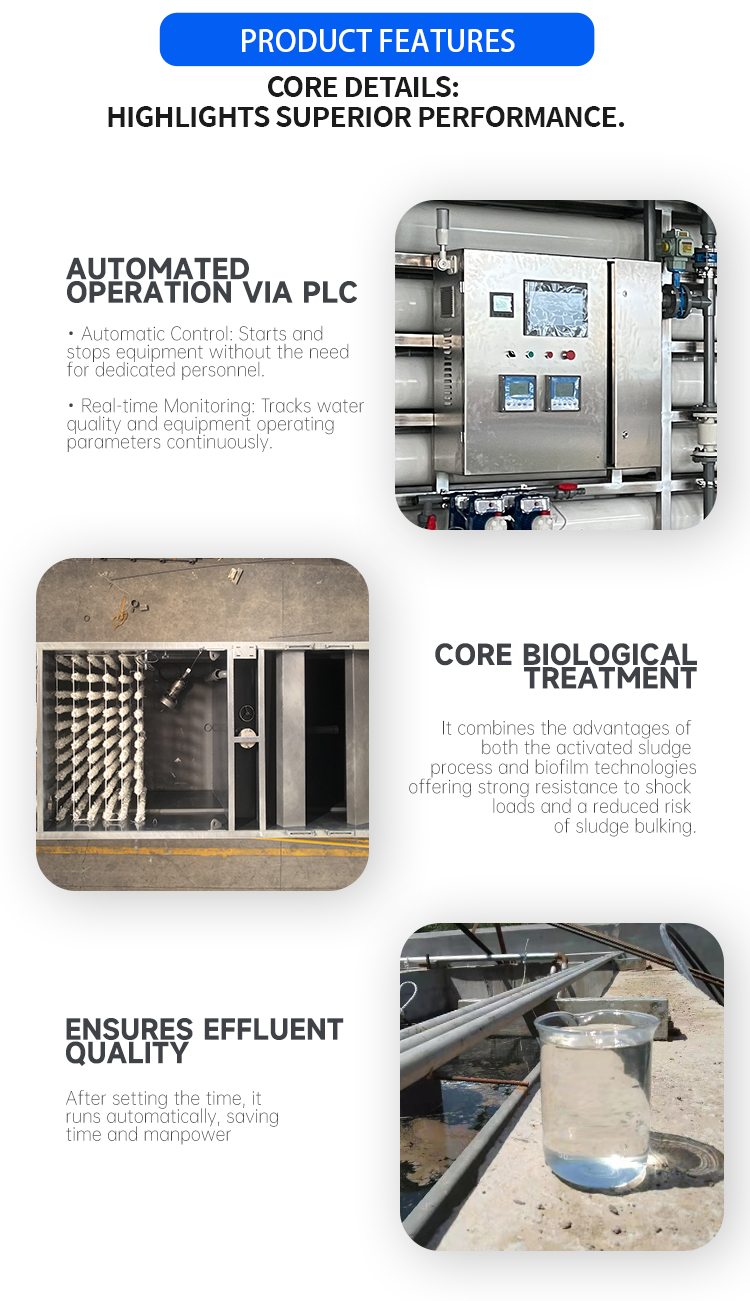

• Full Automation — One-touch start/stop operation with a dedicated PLC control panel. Real-time monitoring continuously tracks water quality and equipment parameters, ensuring secure, stable, and unattended operation.

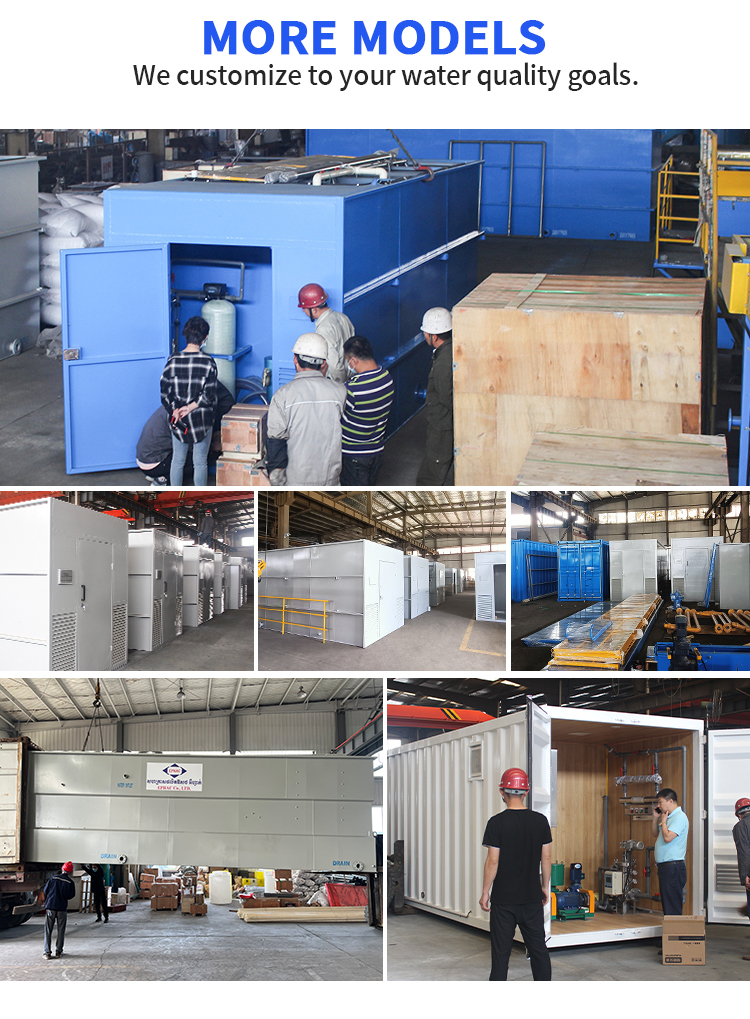

• Custom Services — Every project is individually engineered. We customize treatment capacity, process configuration, tank materials, voltage, and control logic to solve your specific wastewater challenges.

• Grade 1A Effluent Quality — Efficient biological treatment combined with lamella settling, dual-stage filtration, and UV disinfection produces stable, high-quality effluent meeting Grade 1A discharge standards.

• Professional After-Sales Support — A 30-person support team provides 24-hour customer service, remote technical assistance, on-site commissioning, operator training, and spare parts supply.

• OEM/ODM Supported — As an original manufacturer with over 35 years of experience (founded in 1988), we offer full OEM/ODM support, competitive factory pricing, and short delivery cycles.

Company Profile & Certifications

Qingdao Linzhen Environmental Engineering Co., Ltd. was founded in 1988 in Huangdao District, Qingdao, China. Covering 36,000 m² with over 130 processing machines and 360 employees (including 72 engineers), LINZHEN has dedicated over three decades to designing and manufacturing eco-friendly water treatment equipment.

Our plants have been exported to the United States, Australia, Mexico, Russia, Saudi Arabia, Peru, Colombia, Vietnam, Thailand, the Philippines, Malaysia, Indonesia, Nigeria, India, Chad, Kenya, Iraq, and Sudan — trusted by 2,000+ clients worldwide.

Certifications: CE, ISO 9001:2015, SGS, UDEM, EU Machinery Directive.

Applications

The system is suitable for:

• Industrial wastewater — food processing, chemical plants, textile mills, electroplating, pharmaceutical, oil and gas.

• Municipal sewage — communities, townships, residential developments, villages, schools, hospitals.

• Remote sites — construction camps, mining, military bases, disaster relief, offshore platforms.

• Commercial facilities — hotels, resorts, malls, restaurants.
• Water reuse — irrigation, industrial process water, non-potable uses.

Compatible Products

LINZHEN also manufactures: Multi-Plate Screw Press (sludge dewatering), Fully Automatic Dosing Machine, Precision Drum Filter, Seawater Desalination RO System, Lamella Clarifier, and Dissolved Air Flotation (DAF).

Ready to Upgrade Your Wastewater Treatment?

Whether you need a new installation, capacity expansion, or retrofit, our engineering team will design a solution tailored to your water quality goals.

Contact us today for a customized quotation.

LINZHEN — Original Manufacturer | OEM/ODM | 24-Hour Service | Competitive Factory Price | 2,000+ Client-Approved
