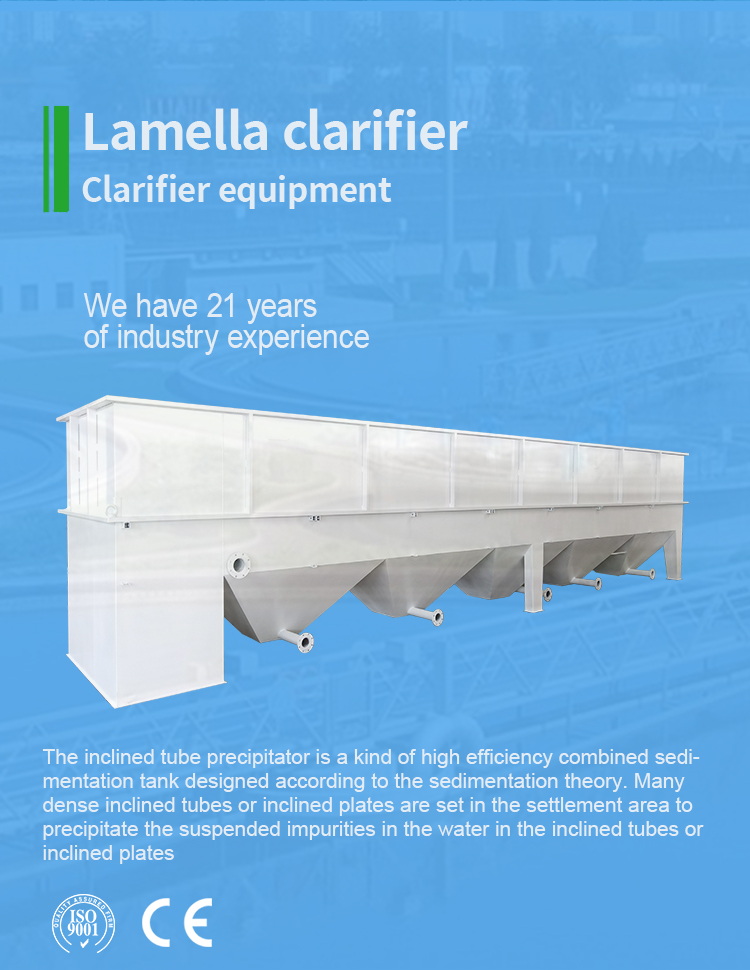

The Lamella Clarifier, also known as an Inclined Plate Settler, is a high-performance solid-liquid separation system designed to remove suspended solids from industrial and municipal wastewater with exceptional efficiency. By utilizing multiple inclined settling plates, the system dramatically increases the effective sedimentation area within a compact footprint, enabling higher hydraulic loading rates and faster particle settling than conventional sedimentation tanks.
As one of the core products manufactured by Qingdao Linzhen Environment Project Co., Ltd., the Lamella Clarifier is widely applied in wastewater treatment plants, industrial process water systems, recycled water facilities, and environmental engineering projects across Asia, Europe, Africa, and South America. Designed for long-term reliability, it combines efficient clarification performance with low operating costs, making it an ideal solution for both new installations and treatment plant upgrades.
Compared with traditional clarifiers, the Lamella Clarifier requires significantly less installation space while maintaining or even increasing treatment capacity. Its modular construction shortens installation time, reduces civil engineering costs, and allows seamless integration with complete wastewater treatment systems.
The Lamella Clarifier, also known as an Inclined Plate Settler, is a high-performance solid-liquid separation system designed to remove suspended solids from industrial and municipal wastewater with exceptional efficiency. By utilizing multiple inclined settling plates, the system dramatically increases the effective sedimentation area within a compact footprint, enabling higher hydraulic loading rates and faster particle settling than conventional sedimentation tanks.
As one of the core products manufactured by Qingdao Linzhen Environment Project Co., Ltd., the Lamella Clarifier is widely applied in wastewater treatment plants, industrial process water systems, recycled water facilities, and environmental engineering projects across Asia, Europe, Africa, and South America. Designed for long-term reliability, it combines efficient clarification performance with low operating costs, making it an ideal solution for both new installations and treatment plant upgrades.
Compared with traditional clarifiers, the Lamella Clarifier requires significantly less installation space while maintaining or even increasing treatment capacity. Its modular construction shortens installation time, reduces civil engineering costs, and allows seamless integration with complete wastewater treatment systems.

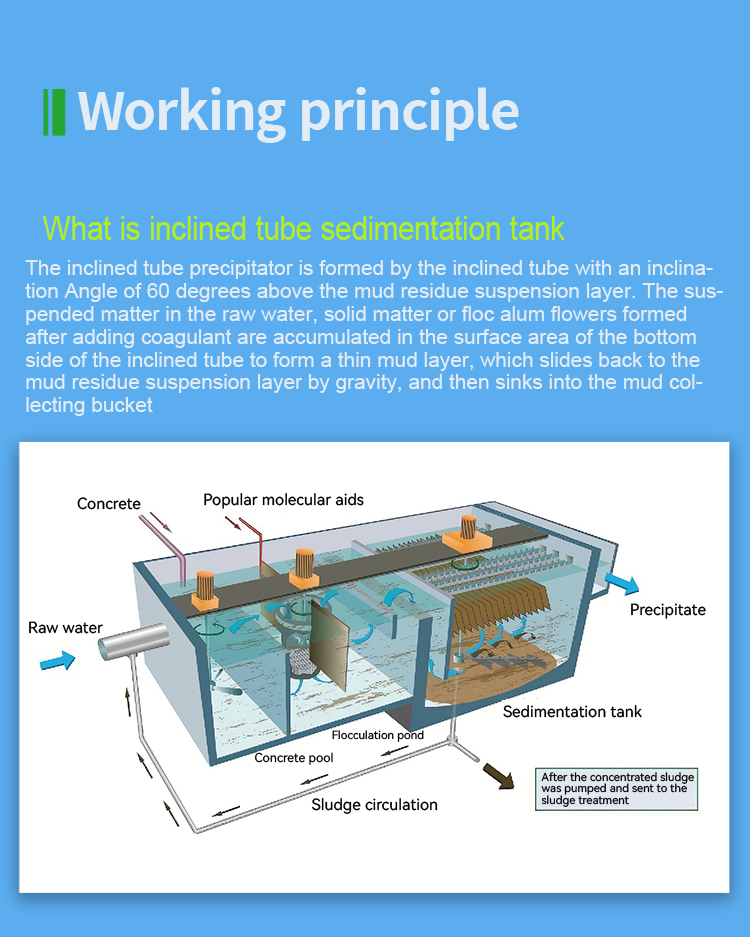

The operating principle of the Lamella Clarifier is based on advanced inclined plate sedimentation technology. Wastewater enters the clarification zone after coagulation and flocculation, where suspended solids are converted into larger, heavier flocs.
As the water flows upward between a series of closely spaced inclined plates positioned at an optimized angle, the flow velocity decreases substantially. Suspended particles settle onto the surfaces of the plates and slide downward into the sludge hopper under the force of gravity. The clarified water continues to rise and is discharged through the overflow outlet, while the accumulated sludge is periodically removed for further dewatering or disposal.
Unlike conventional sedimentation tanks that require particles to travel several meters before settling, the inclined plate arrangement reduces the settling distance to only a few centimeters. This significantly improves sedimentation efficiency, increases treatment capacity, and ensures stable effluent quality even under fluctuating flow conditions.
Model |
Capacity (m³/h) |
Dimension-Length(L) |
Dimension-Width(W) |
Dimension-Height(H1/H2) |
Nozzle List(DN) Inlet |
Nozzle List(DN) Outlet |
Nozzle List(DN) Sludge Outlet |
Nozzle List(DN) Backwash |
LTS1-001 |
~1 |
1.6 |
0.8 |
2.0/2.0 |
25 |
25 |
50 |
50 |
LTS1-003 |
~3 |
1.6 |
1.1 |
2.0/2.0 |
50 |
50 |
50 |
50 |
LTS1-005 |
~5 |
20.6 |
1.6 |
2.9/2.9 |
80 |
50 |
50 |
50 |
LTS1-010 |
~10 |
3.4 |
1.8 |
3.6/1.8 |
100 |
80 |
50 |
50 |
LTS1-020 |
~20 |
3.4 |
2.2 |
3.6/1.8 |
150 |
100 |
50 |
50 |
LTS1-030 |
~30 |
4.2 |
2.2 |
4.0/2.2 |
150 |
150 |
50 |
50 |
LTS1-040 |
~40 |
5.3 |
2.2 |
3.6/1.8 |
200 |
150 |
50*2 |
50 |
LTS1-050 |
~50 |
6.3 |
2.2 |
3.8/2.0 |
200 |
200 |
50*2 |
50 |
LTS1-060 |
~60 |
7.2 |
2.2 |
4.0/2.2 |
250 |
200 |
50*2 |
50 |
LTS1-070 |
~70 |
7.2 |
2.6 |
4.0/2.2 |
250 |
200 |
50*2 |
50 |
LTS1-080 |
~80 |
7.2 |
2.7 |
4.0/2.2 |
250 |
200 |
80*2 |
50 |
LTS1-090 |
~90 |
6.7 |
3.1 |
4.0/2.2 |
250 |
250 |
80*2 |
50 |
LTS1-100 |
~100 |
7.2 |
3.1 |
4.0/2.2 |
250 |
250 |
80*2 |
50 |
LTS1-120 |
~120 |
8.3 |
3.3 |
4.0/2.2 |
250 |
250 |
80*2 |
50 |
LTS1-150 |
~150 |
9.8 |
3.3 |
4.0/2.2 |
250 |
250 |
80*2 |
50 |
Multiple inclined plates greatly expand the effective settling area without increasing the tank footprint. This design enables rapid solid-liquid separation and excellent suspended solids removal efficiency, resulting in lower turbidity and improved downstream process performance.
The Lamella Clarifier typically requires 70–90% less installation space than conventional sedimentation tanks with equivalent treatment capacity. This makes it particularly suitable for facilities where land availability is limited or expansion space is restricted.
The clarification process relies primarily on gravity rather than mechanical agitation, resulting in low power consumption and reduced operating expenses. The simplified process also minimizes maintenance requirements throughout the equipment lifecycle.
The system can be equipped with an automatic electrical control system, including Siemens PLC control, allowing continuous and stable operation with minimal operator intervention. Automated operation improves process consistency while reducing labor requirements.
Manufactured using precision laser cutting, CNC bending, automatic welding, and high-quality anti-corrosion coatings, every Lamella Clarifier is engineered for long-term durability in demanding wastewater treatment environments. Premium materials and strict quality control ensure reliable operation and extended service life.
The Lamella Clarifier can operate independently or be integrated into complete wastewater treatment systems. It works effectively with coagulation, flocculation, Dissolved Air Flotation (DAF), biological treatment systems such as MBBR, MBR, SBR, activated sludge processes, as well as sludge dewatering equipment including filter presses and multi-disc screw presses.
The Lamella Clarifier is suitable for a wide variety of industrial and municipal water treatment applications where efficient suspended solids removal is required.
Removes suspended solids from municipal sewage and stormwater while reducing the loading on downstream biological treatment units.
Provides reliable clarification for manufacturing facilities, industrial parks, and process water treatment systems prior to discharge or water reuse.
Effectively separates organic suspended solids generated during food production, breweries, dairy processing, slaughterhouses, and beverage manufacturing.
Removes chemical precipitates, reaction by-products, and suspended particles, protecting downstream filtration and biological treatment equipment.
Clarifies mining wastewater, mineral processing water, and tailings streams while improving water recycling efficiency.
Separates metal hydroxide sludge after chemical precipitation and assists facilities in meeting environmental discharge regulations.
Efficiently removes fibers, pigments, dyes, and suspended solids before biological treatment or final discharge.
Used for cooling water clarification, boiler feedwater pretreatment, and industrial wastewater recycling.
Works together with coagulation and flocculation systems to remove suspended solids from rivers, lakes, and reservoirs before filtration and disinfection.
Serves as an effective pretreatment unit ahead of sand filtration, ultrafiltration (UF), and reverse osmosis (RO), extending membrane service life while improving recycled water quality.
The Lamella Clarifier supplied by Qingdao Linzhen Environment Project Co., Ltd. is available in multiple capacities and can be customized according to project requirements.
Typical specifications include:
Processing Capacity: 5,000 L/h (customizable)
Equipment Type: Lamella Clarifier
Rated Voltage: 380V (customized available)
Power: 3–5 kW
Automatic PLC Control System
Modular Steel Structure
Automatic Operation
Online & Video Technical Support
One-Year Warranty
Custom Dimensions and Colors Available
Qingdao Linzhen Environment Project Co., Ltd. is a professional manufacturer specializing in wastewater treatment equipment, sludge treatment systems, and customized environmental engineering solutions. Located in Qingdao, China, the company integrates equipment design, engineering, manufacturing, and technical services under one roof.
Supported by an experienced engineering team and an independent R&D department, Linzhen provides customized solutions tailored to different wastewater characteristics, treatment capacities, and project requirements. The company's production facilities utilize laser cutting, automatic welding, CNC machining, and strict quality inspection procedures to ensure every unit meets international quality standards before shipment.
With branches and warehouses in Malaysia and the Philippines, overseas service centers, and exports to more than 50 countries, Linzhen delivers comprehensive technical support and responsive after-sales service to customers worldwide.
Choosing the right clarification equipment is critical to achieving stable wastewater treatment performance while controlling investment and operating costs. Linzhen combines proven sedimentation technology with professional engineering support to deliver reliable wastewater treatment solutions for industrial and municipal projects.
Our advantages include:
Professional manufacturer specializing in wastewater treatment equipment
Customized engineering solutions for diverse industries
High-efficiency inclined plate sedimentation technology
Compact modular design for easier transportation and installation
Precision manufacturing with strict quality control
Low operating and maintenance costs
Complete technical support from design through commissioning
Export experience in more than 50 countries
Responsive global after-sales service
Whether your project involves industrial wastewater treatment, municipal sewage treatment, process water clarification, or water reuse, Qingdao Linzhen Environment Project Co., Ltd. can provide a customized Lamella Clarifier solution designed to maximize clarification efficiency, reduce installation costs, and support long-term operational reliability.
