Product Overview

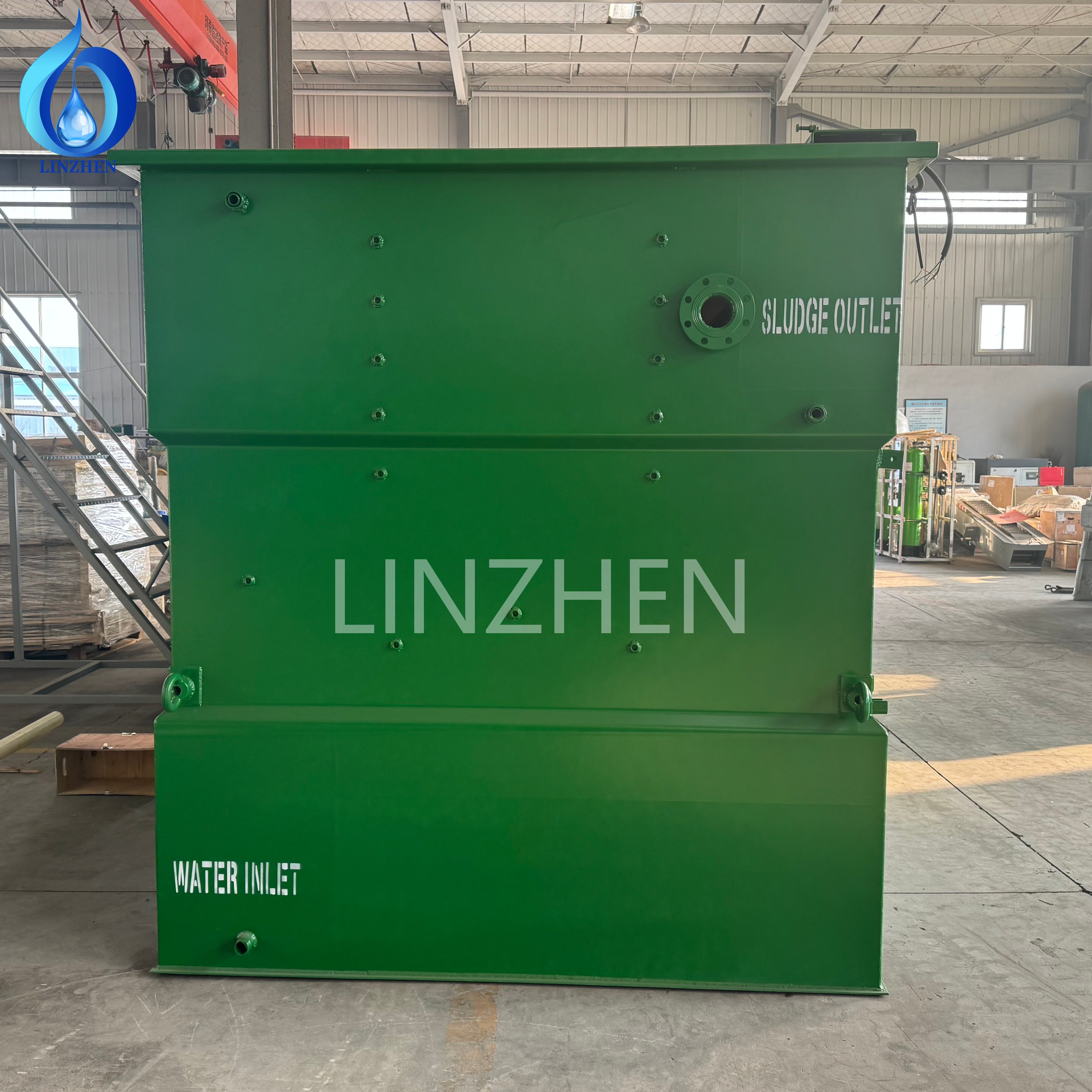

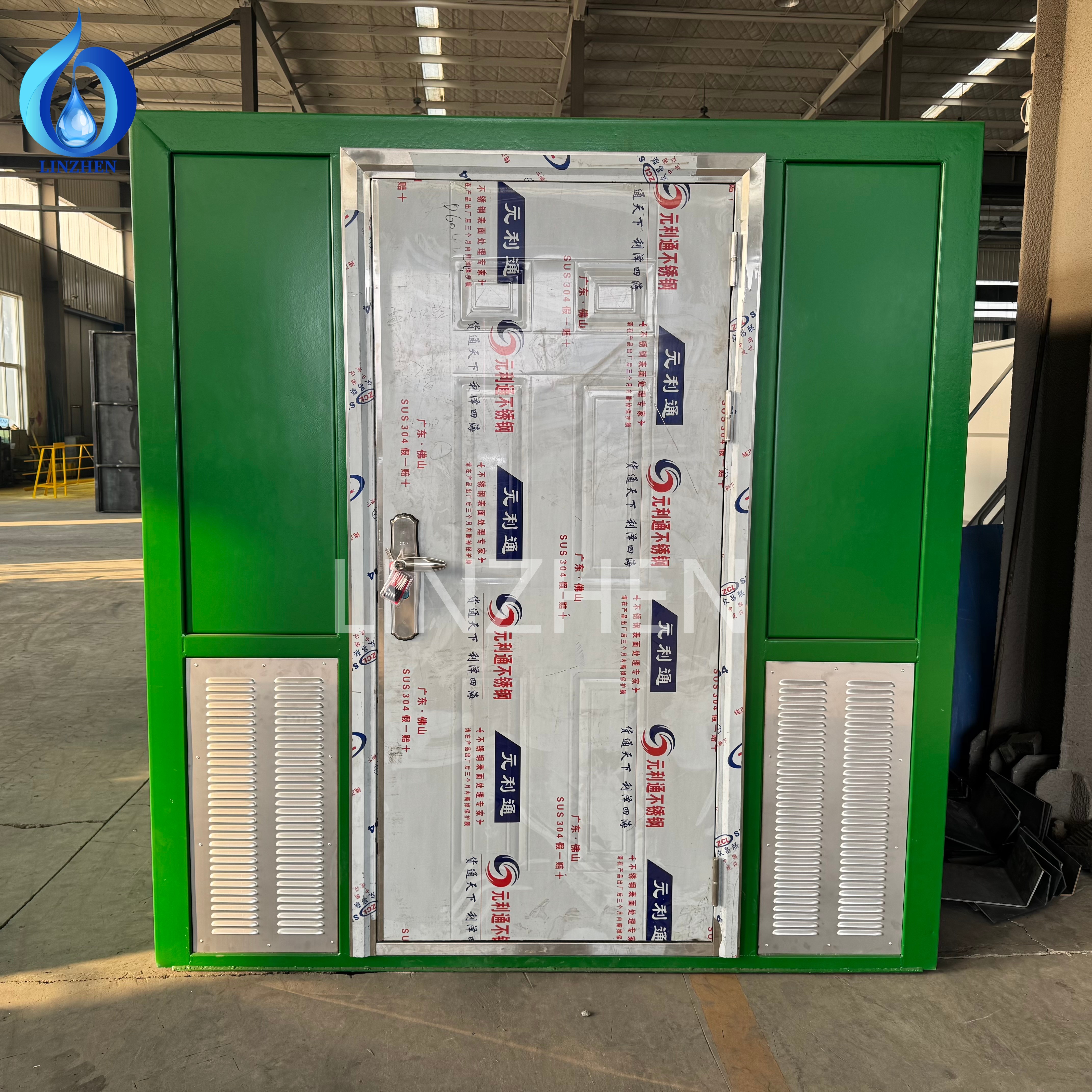

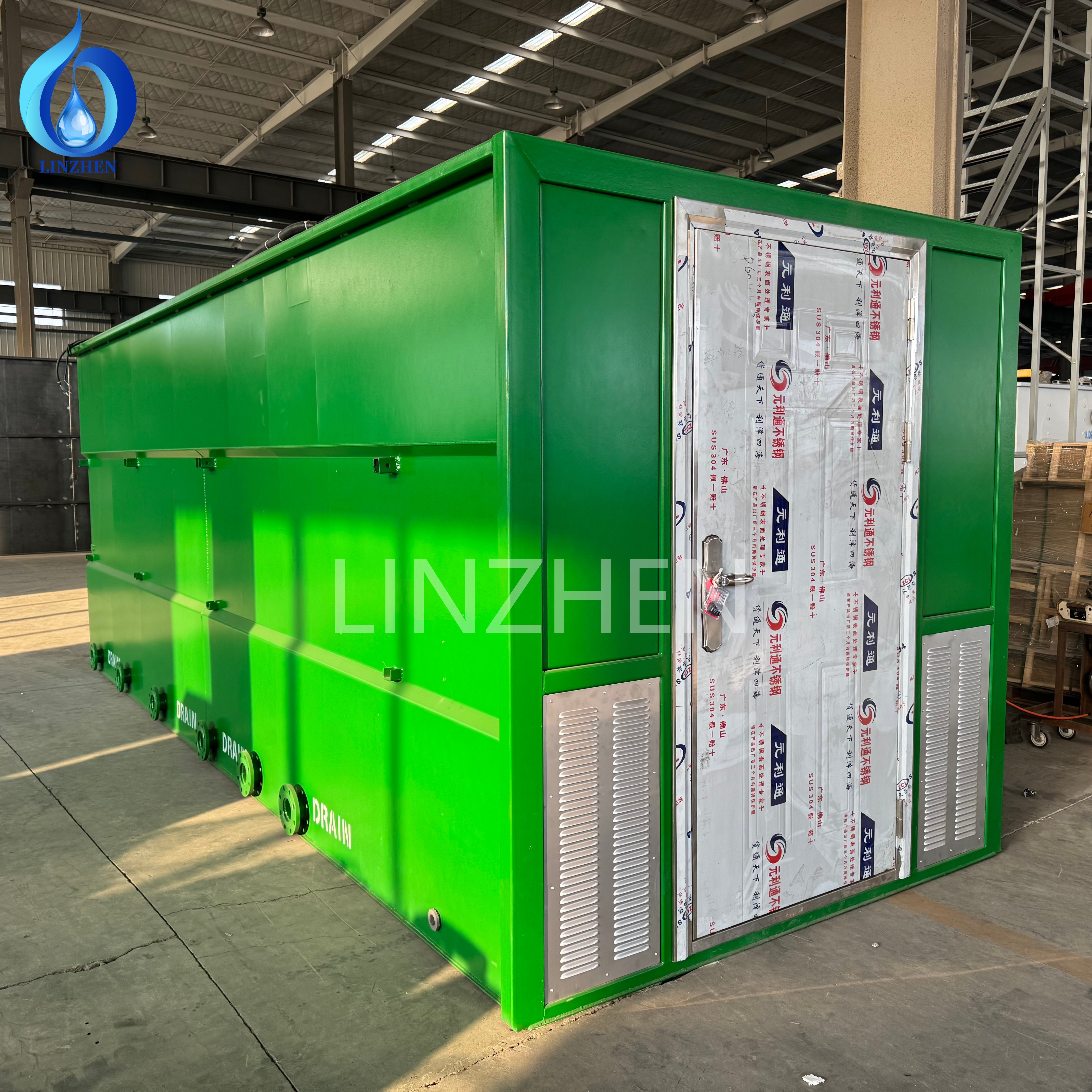

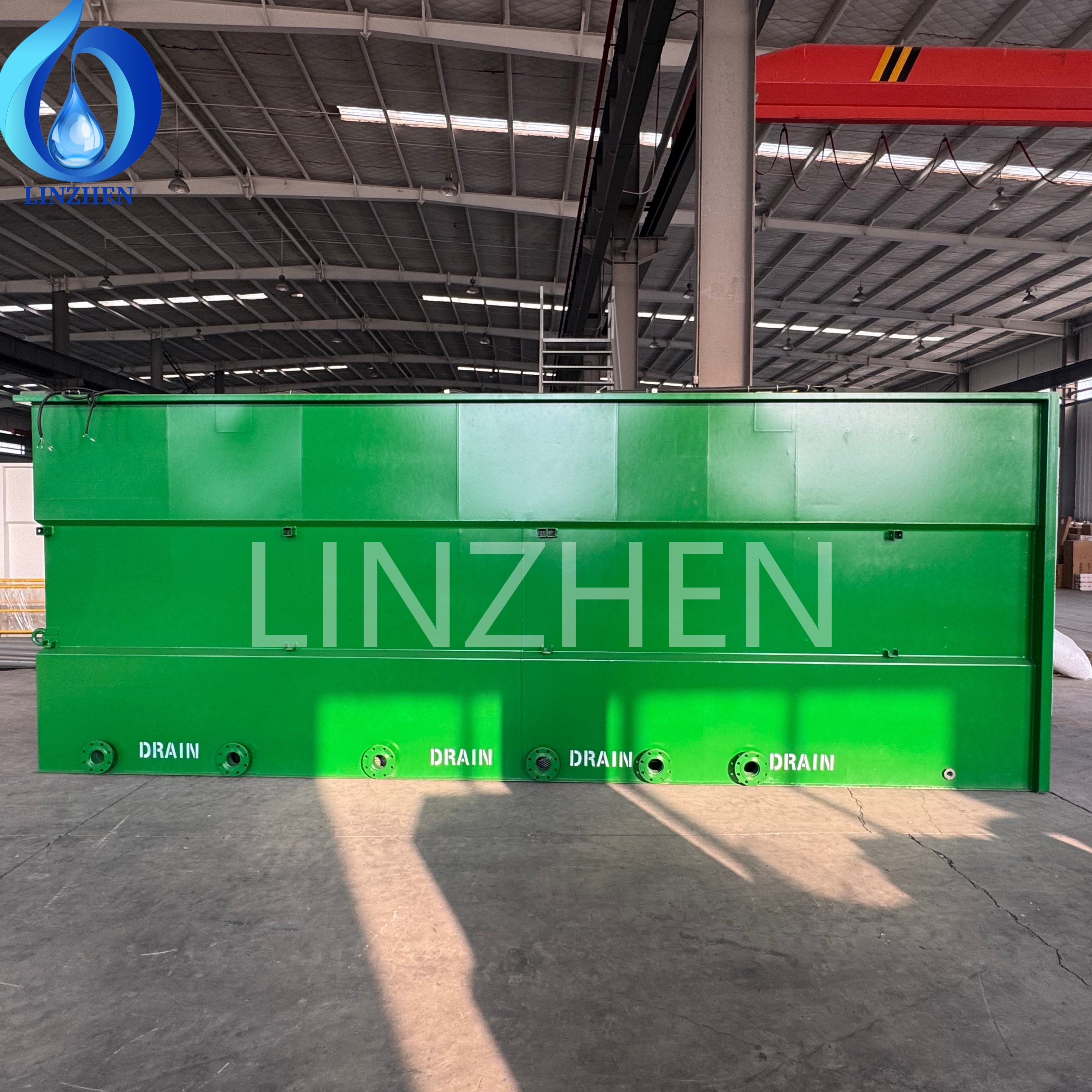

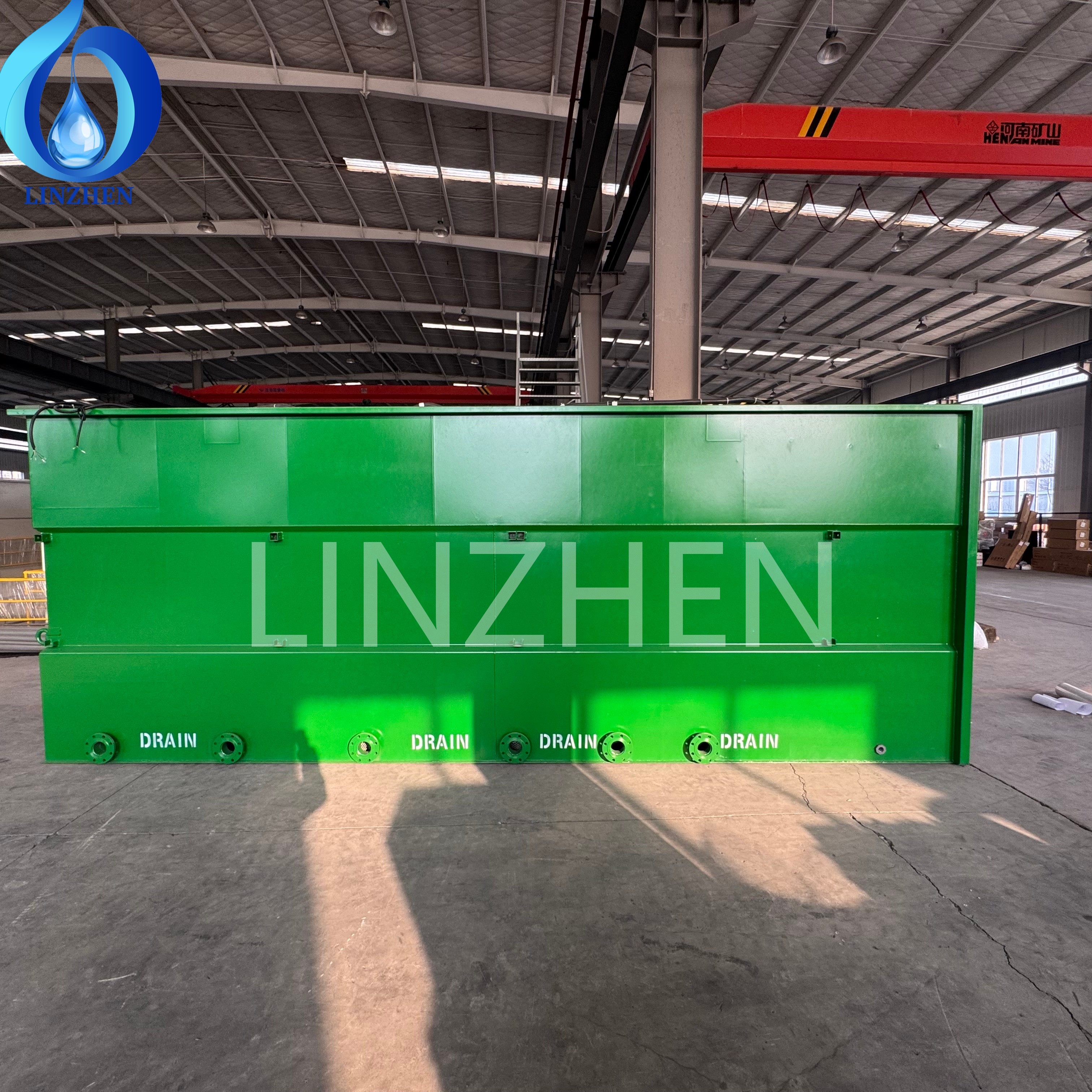

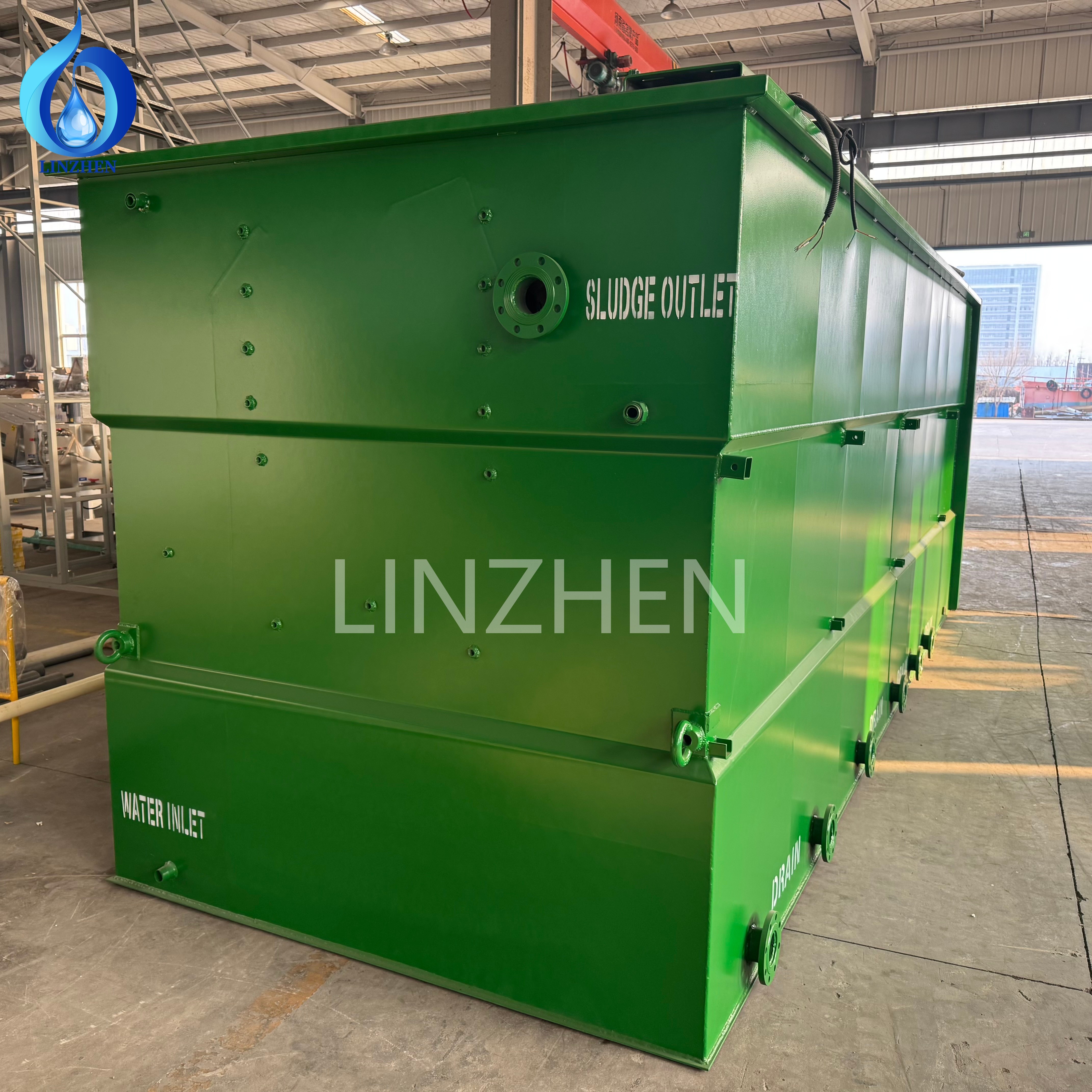

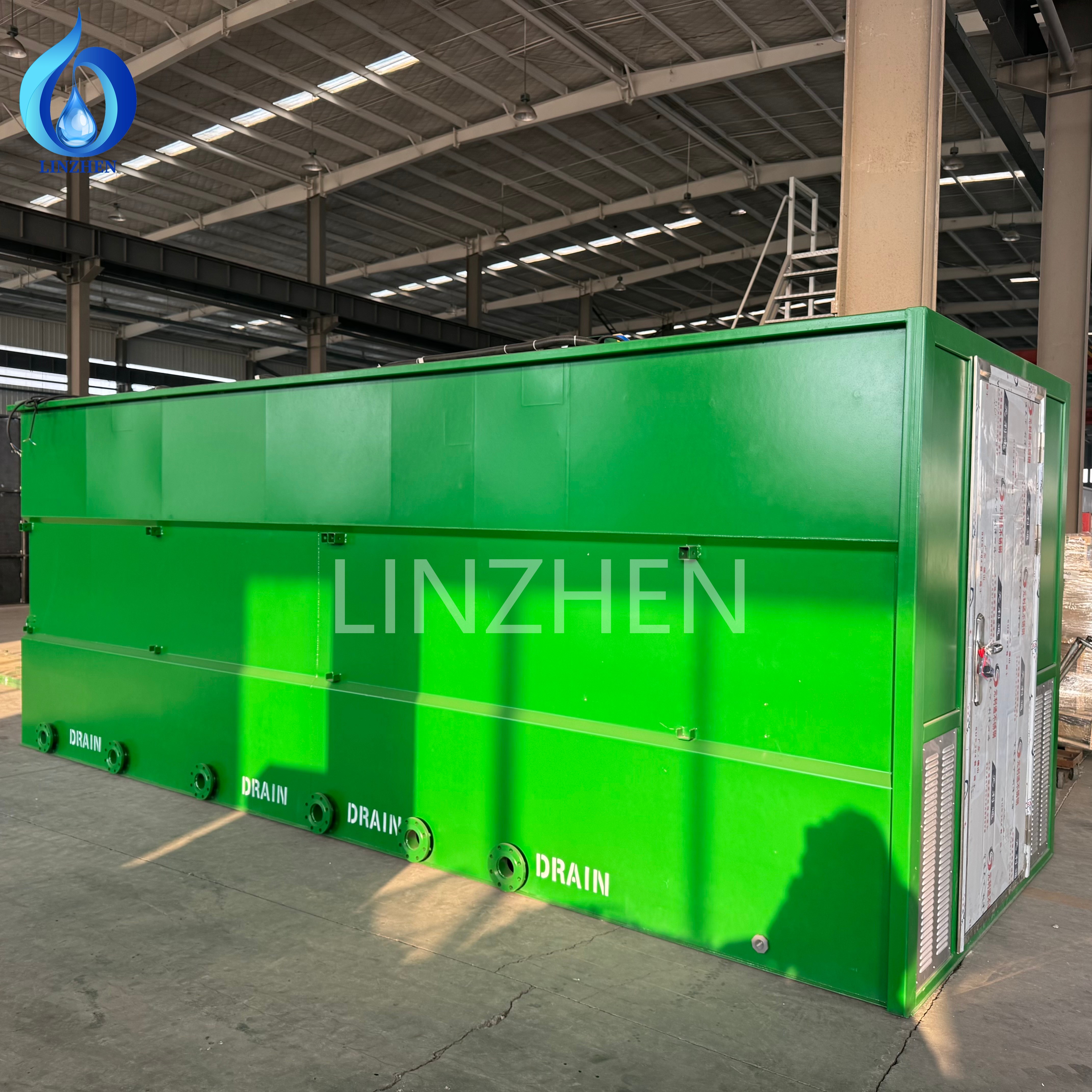

The LINZHEN Industrial Wastewater Treatment System is a complete, factory-built wastewater treatment solution engineered by an environmental equipment manufacturing facility based in Shandong Province, China. Designed for both industrial effluent and domestic sewage, the system combines multiple proven treatment technologies into a single, skid-mounted or containerized unit that delivers stable, reliable effluent quality.

With a treatment capacity of up to 10,000 liters per hour, the system integrates Dissolved Air Flotation (DAF), Moving Bed Biofilm Reactor (MBBR), Membrane Bioreactor (MBR), Sequencing Batch Reactor (SBR), and AO biological treatment processes. Each unit is configured to match the customer’s wastewater characteristics, discharge requirements, and site conditions.

The system supports both PLC fully automatic operation and manual control, enabling real-time monitoring, automatic alarms, and simplified daily management. This reduces labor requirements and helps manufacturers maintain consistent compliance with local environmental regulations while lowering overall operating costs.

How It Works

A complete industrial wastewater treatment system is carefully engineered to remove contaminants from wastewater so that the treated effluent meets discharge standards or can be reused as reclaimed water in production processes.

The process begins with pre-treatment, where coarse screening equipment removes large debris, rags, and suspended solids that could damage downstream equipment. The wastewater then flows into an equalization tank that balances fluctuations in flow rate and pollutant concentration, ensuring stable performance.

Depending on the application, Dissolved Air Flotation (DAF) or sedimentation removes oil, grease, suspended solids, and other settleable or floatable contaminants. The water then enters the biological treatment stage, where MBBR, MBR, SBR, or AO biological technologies use beneficial microorganisms to break down organic matter, reduce COD and BOD, and efficiently remove ammonia nitrogen.

After biological treatment, the water passes through solid-liquid separation and disinfection stages to eliminate harmful microorganisms. For higher water quality requirements, the system can be customized with advanced filtration or Reverse Osmosis (RO) technology. Excess sludge is collected and dewatered, minimizing sludge volume and reducing operating costs.

Core Treatment Technologies

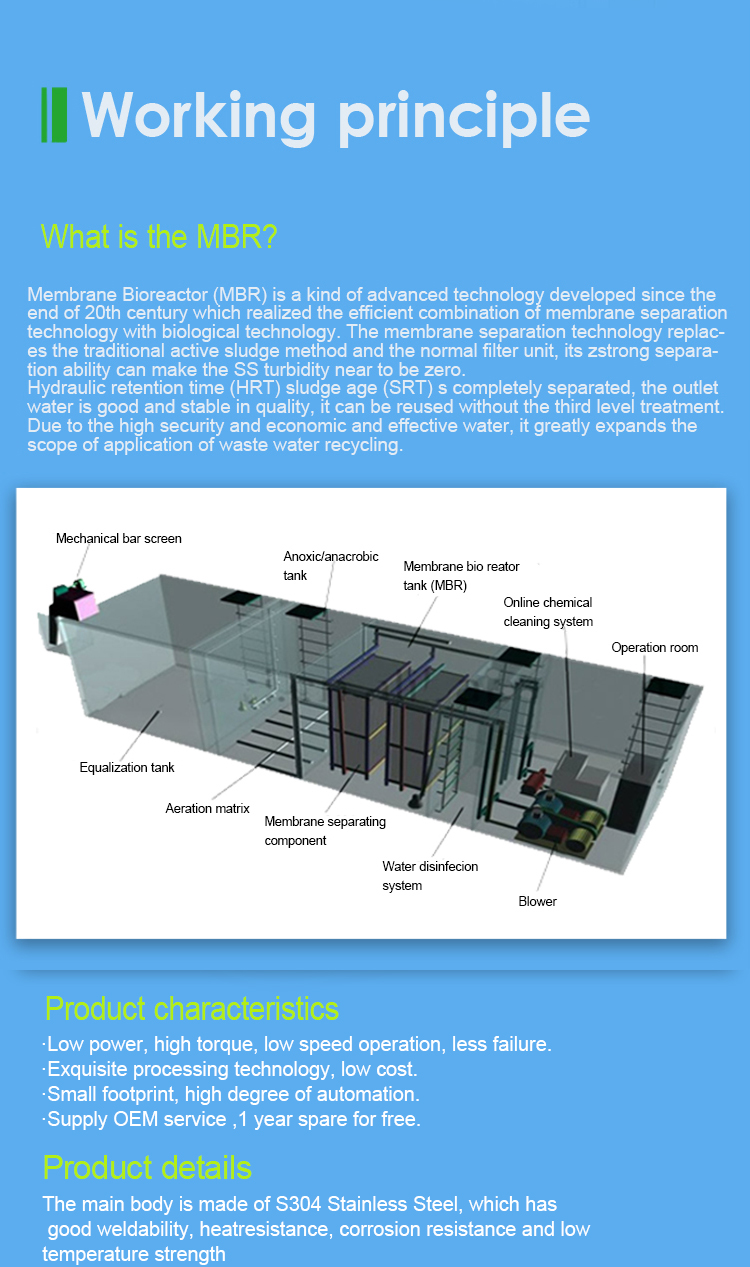

● Membrane Bioreactor (MBR): Combines membrane separation with biological treatment, replacing conventional sedimentation. MBR provides strong solid-liquid separation, making suspended solids (SS) turbidity near zero, and produces high-quality effluent that can be reused without tertiary treatment.

● Moving Bed Biofilm Reactor (MBBR): Uses suspended biofilm carriers with high internal porosity and large specific surface area to support dense microbial growth. The system is not easily clogged and does not require backwashing or backflow.

● Sequencing Batch Reactor (SBR): Operates in time-sequenced fill, react, settle, and decant phases, providing flexible and efficient biological treatment.

● AO Biological Treatment (Anoxic/Oxic): Achieves organic matter removal and nitrogen reduction through anoxic denitrification followed by aerobic oxidation.

● Dissolved Air Flotation (DAF): Removes oils, grease, and suspended solids by introducing fine air bubbles that attach to particles and float them to the surface for removal.

Key Advantages

1.Customized Design: Every industry produces wastewater with different characteristics. Our engineers customize the treatment process based on your wastewater composition, flow rate, and discharge requirements.

2.Integrated Multi-Process Technology: DAF, MBBR, MBR, SBR, and AO technologies can be combined to efficiently remove COD, BOD, suspended solids, oil, grease, ammonia nitrogen, and other pollutants.

3.Stable Effluent Quality: A well-engineered process ensures consistent operation and reliable effluent quality that meets local discharge or water reuse standards.

4.Intelligent PLC Automation: The PLC control system supports both automatic and manual operation, with real-time monitoring and automatic alarms.

5.Low Operating Costs: Energy-efficient equipment, optimized process design, and intelligent control reduce electricity, chemical, and maintenance costs.

6.Modular and Expandable: The system can be designed as a modular solution, allowing easy capacity expansion as production increases.

7.Durable Construction: Manufactured from high-quality carbon steel or stainless steel (S304), the equipment offers excellent corrosion resistance, structural strength, and long service life.

8.Turnkey Engineering Support: We provide process design, manufacturing, factory testing, installation guidance, commissioning, operator training, and lifetime technical support.

Applications

The system is widely used across industries and settings, including food and beverage processing, pharmaceutical manufacturing, textile and dyeing, chemical manufacturing, oil and gas, paper and pulp mills, electroplating and metal finishing, mining and mineral processing, slaughterhouses, and electronics manufacturing. It is also suitable for hotels, restaurants, hospitals, residential areas, villages, towns, villas, resorts, stations, and airports.

Technical Specifications

● Productivity: 1–5,000 L/Hour (customizable up to 10,000 L/Hour)
● Processing Type: MBR, MBBR, DAF, SBR, AO
● Voltage: 220V, 230V, 380V, 400V, 415V, 440V, 460V, 480V
● Power: 5 kW, 10 kW, 15 kW (customizable)
● Core Components: Pump, Motor, PLC, Air Blower, Control Panel
● Material: Carbon Steel / Stainless Steel (S304)
● Operation: PLC Automatic and Manual
● Weight: 8,000 kg (reference)
● Dimensions (L×W×H): 11.7 × 2.2 × 2.5 m (reference)
● Warranty: 1 Year
● After-sales Service: Lifetime technical support
● Certification: CE, ISO 9001, SGS, SABER, COC
● Place of Origin: Shandong, China
● Brand Name: LINZHEN

Why Choose LINZHEN

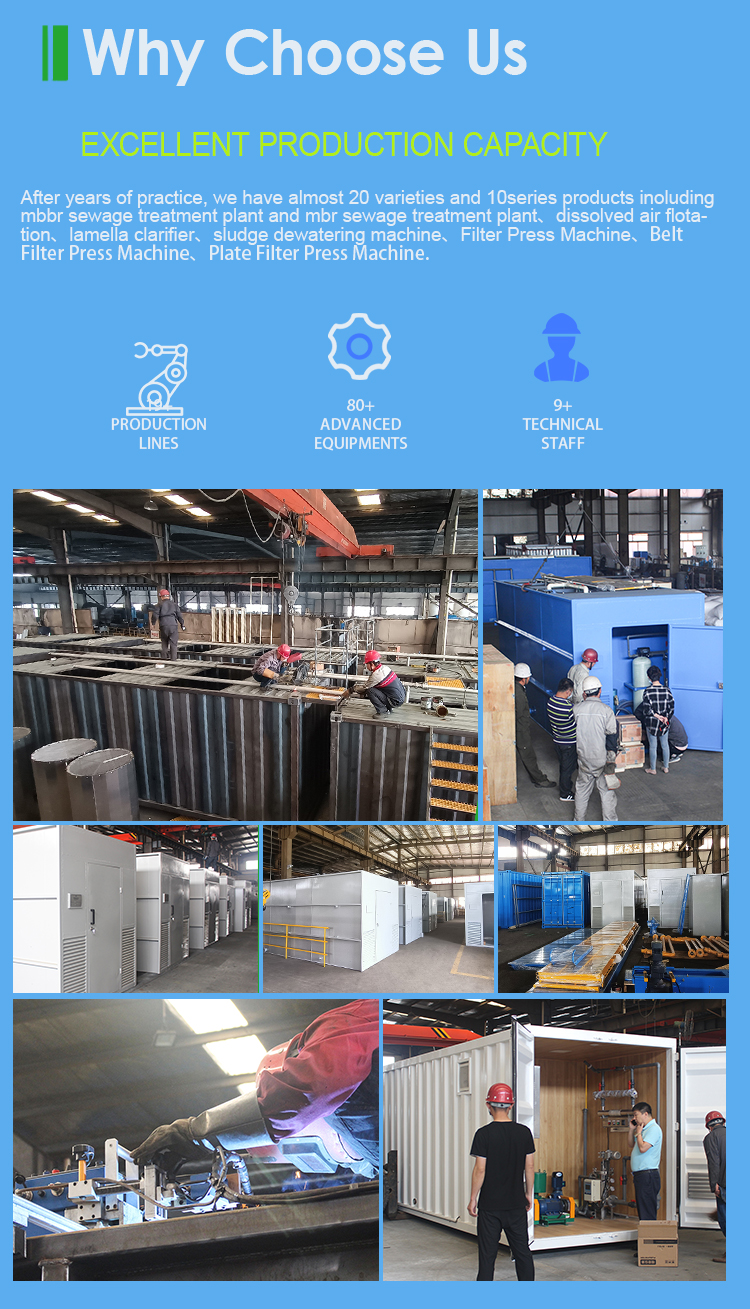

With more than 20 years of industry experience, the LINZHEN manufacturing facility has delivered innovative sewage treatment solutions worldwide. The factory covers a 36,000 m² workshop area and operates with over 80 production lines, 80+ advanced equipment units, and a professional design and engineering team. Our products have been exported to countries across America, Australia, Europe, Asia, Africa, and the Middle East.

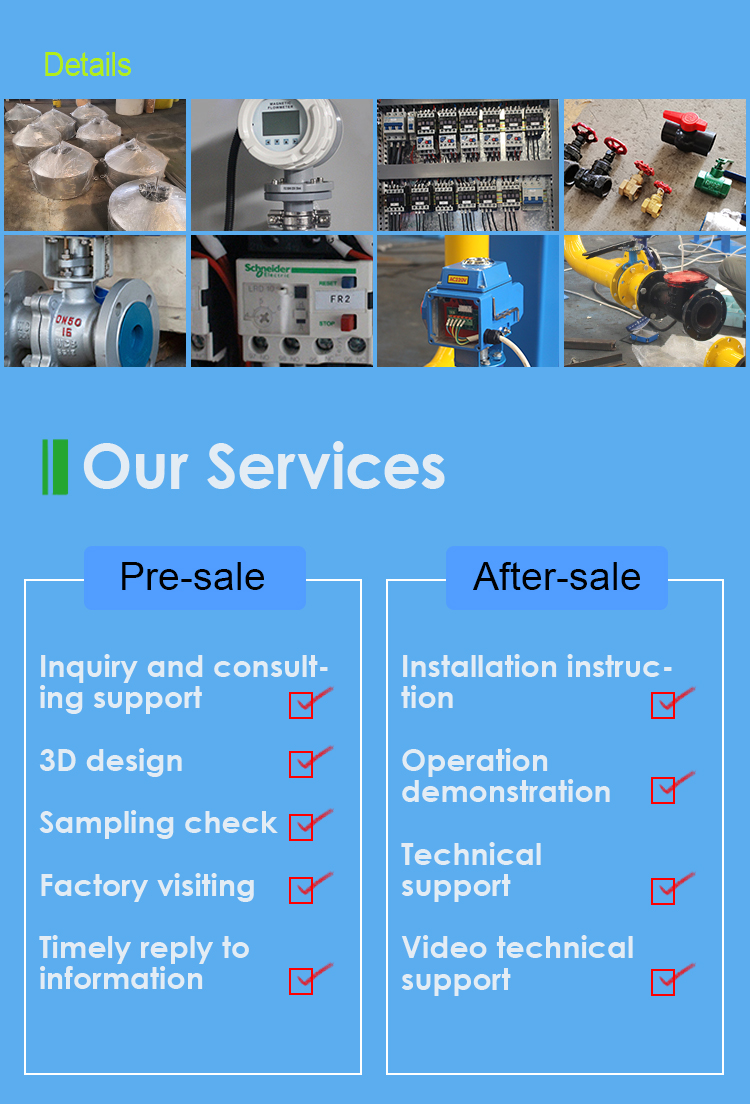

Services & Support

Pre-sale Services:

● Inquiry and consulting support
● 3D design and process simulation
● Sampling check and laboratory testing
● Factory visiting
● Timely reply to technical information

After-sale Services:

● Installation instruction
● Operation demonstration
● Technical support
● Video technical support

Contact us today to discuss your wastewater treatment requirements. Our engineering team will design a customized solution that matches your water quality, flow rate, and site conditions.

FAQ

How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What’s more, we paint strictly according to the standard process.

How do you manufacture your equipment?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
