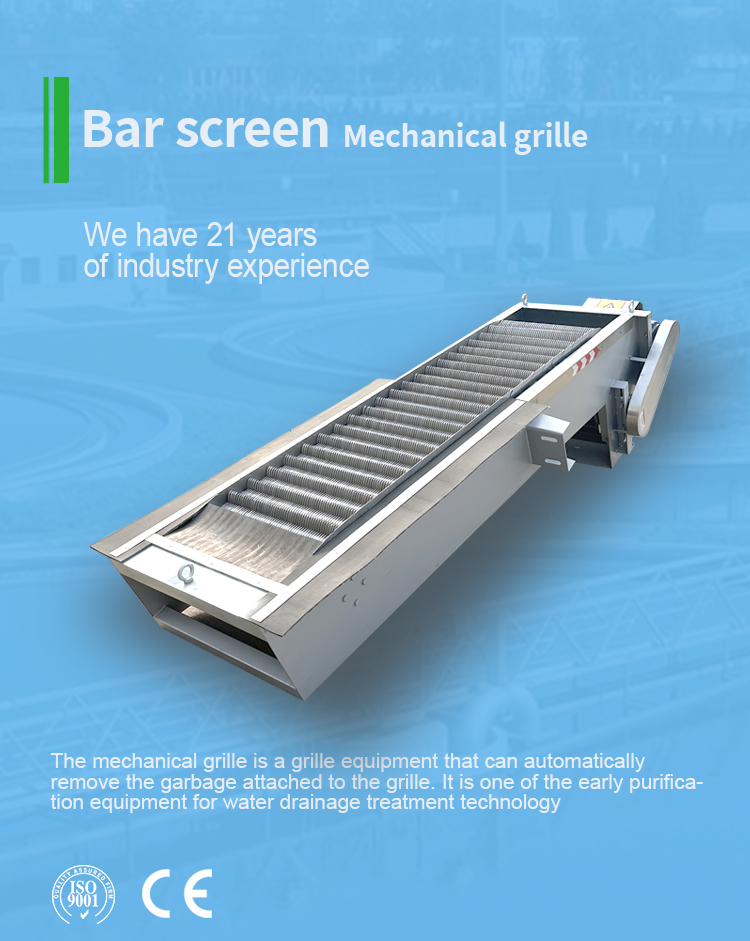

Product Overview

This automatic rotary rake mechanical bar screen is a core front-end pretreatment equipment designed for sewage and industrial wastewater treatment systems. Constructed with precision-welded stainless steel bar grids and a continuous rotary rake cleaning structure, it efficiently intercepts large debris, floating waste, fibers, plastic fragments, branches and other suspended solids in raw sewage. By removing impurities early, it effectively prevents pump blockages, pipeline clogging and damage to subsequent membrane systems, aeration equipment and biochemical tanks, greatly improving the stability of the overall wastewater treatment process.

Suitable for open-channel installation, this mechanical bar screen supports both coarse screening and fine screening configurations via adjustable bar gaps. It runs automatically 24/7 with minimal manual intervention, widely used in municipal sewage plants, industrial wastewater workshops, water intake pump stations, food processing factories, textile mills, paper mills, chemical plants and aquaculture water treatment projects. We offer flexible size customization and different stainless steel grades (SS304 / SS316L) to adapt to corrosive, high-temperature and complex water quality working conditions. The whole machine undergoes strict factory inspections and video quality checks before delivery, with a 1-year official warranty for reliable long-term operation.

Key Features & Benefits

Dual Coarse/Fine Screening: Flexible bar spacing for versatile pretreatment, delivering high capture efficiency across diverse wastewater conditions.

Welded Stainless Steel Construction: Corrosion-resistant, wear-proof, and long service life in harsh industrial wastewater environments.

Rotary Rake Automatic Cleaning: Continuous self-cleaning operation reduces manual labor, minimizes clogging, and ensures uninterrupted flow.

Robust & Stable Drive System: Heavy-duty transmission with overload protection for reliable 24/7 operation.

Compact Channel-Mount Design: Easy installation in open channels; customizable width, depth, and inclination to fit on-site conditions.

Low Noise & Low Energy Consumption: Optimized mechanical structure reduces operating cost and improves workplace comfort.

1-Year Warranty: Quality assurance with professional after-sales support for peace of mind.

Technical Specifications

Application Scenarios

1.Municipal sewage treatment plants and urban drainage pumping stations

2.Industrial wastewater pretreatment: chemical, printing & dyeing, paper making, food & beverage processing

3.River water intake, reservoir water purification and circulating water systems

4.Aquaculture sewage, slaughterhouse wastewater and kitchen waste water pretreatment

5.Water clarification systems, trash collection and primary filtration processes

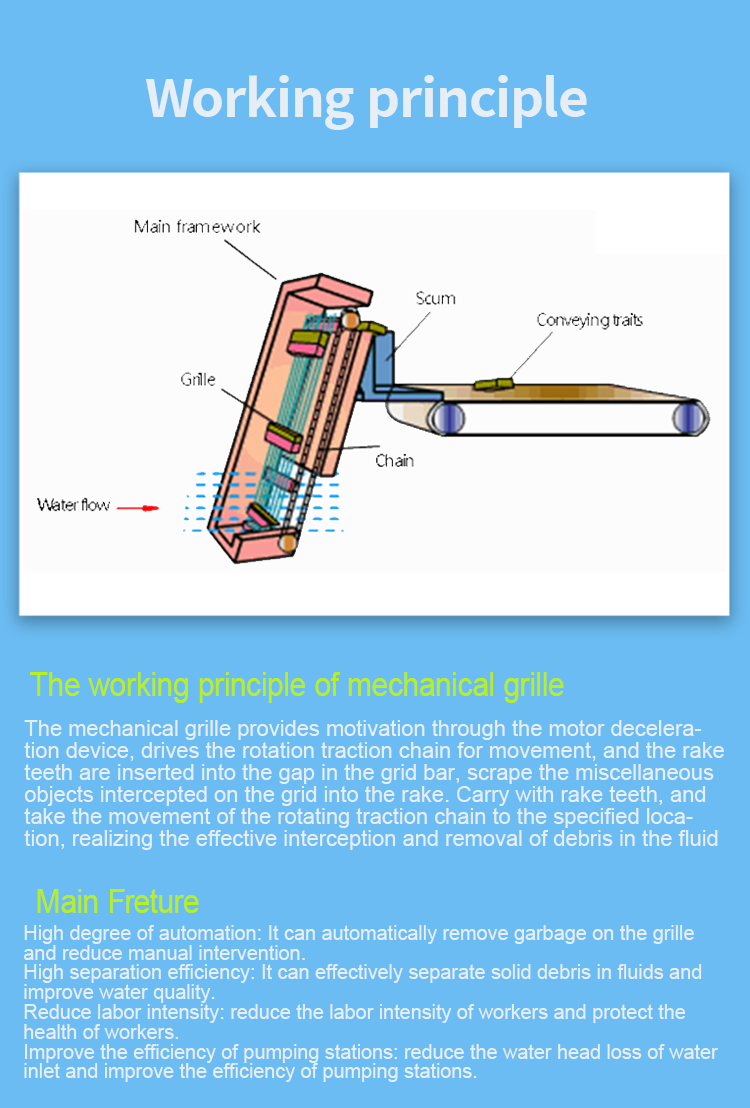

How It Works

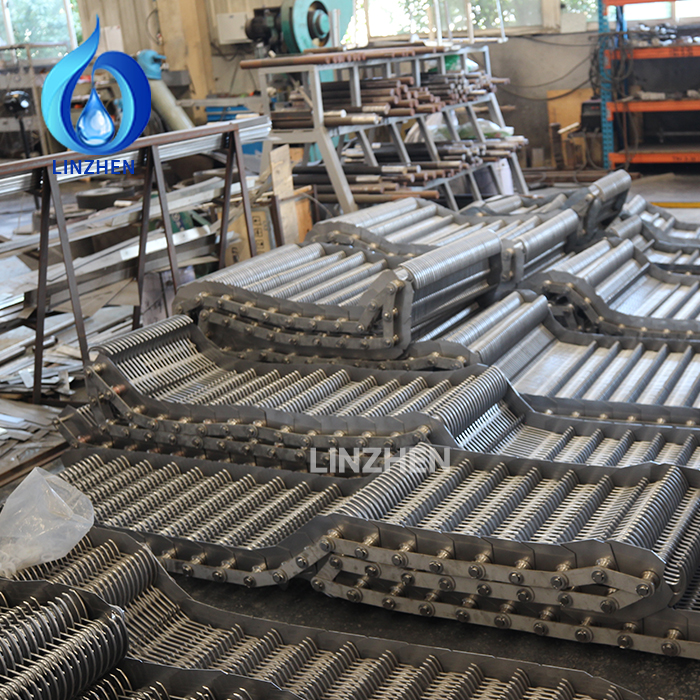

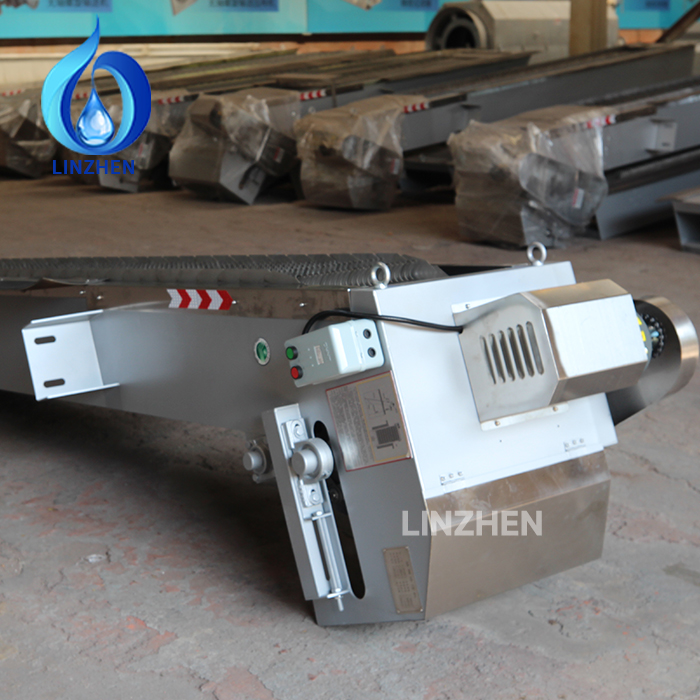

The mechanical bar screen is installed diagonally inside the sewage channel. As wastewater flows through the vertical bar grid, solid waste is blocked on the front surface of the bars. The rotating rake teeth periodically scrape off the intercepted debris, lift it upward, and drop it into a waste collection bin for centralized disposal. Clean water flows through the bar gaps smoothly to the next treatment process, realizing continuous automatic impurity removal and ensuring steady water flow.

Why Choose Our Linzhen Mechanical Bar Screen

● Professional wastewater equipment manufacturer with mature production experience in channel mechanical screens
● Customizable channel width, depth, bar gap and control system (local control / remote PLC control available)
● Strict quality control, full inspection before shipment, complete technical documentation
● Fast global quotation and after-sales technical guidance, on-site installation guidance support (video guidance)
● Cost-effective direct factory pricing, no middlemen markup, fast delivery cycles

Customization & Inquiry

We accept non-standard size, material and control system customization according to actual channel dimensions and water quality parameters. Please send us your channel size, daily water flow and water quality conditions, and our engineering team will provide a tailored quotation and technical drawing quickly.

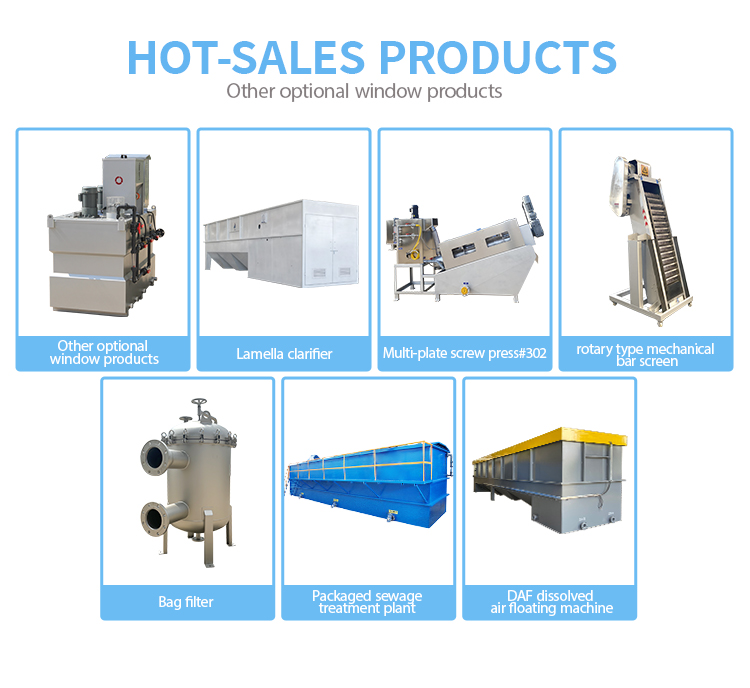

Compatible Supporting Equipment

1. Supporting Equipment for Pretreatment Section (Downstream Front-end Water Treatment Equipment for Bar Screen)

Fine Screen / Rotary Drum Screen / Microfilter / Step Screen Function: After the coarse screen intercepts large debris, the fine screen further removes fine fibers, hair, and tiny suspended impurities, realizing multi-stage pretreatment to protect subsequent equipment.

Grit Removal Equipment (Vortex Grit Chamber, Aerated Grit Chamber, Grit Water Separator) Function: Removes inorganic particles such as sand and gravel to prevent abrasion of subsequent water pumps, membrane modules, valves and pipelines.

Sewage Lifting Pump / Submersible Sewage Pump / Self-priming Pump & Liquid Level Control Cabinet Function: Controls water flow rate, transports pretreated sewage, and realizes linkage automatic operation with the bar screen (liquid level difference / timing control) with PLC / frequency conversion control cabinet.

Gate / Hoist / Channel Weir Gate: Used for channel water flow regulation, maintenance water cut-off, and water level control.

Adjustment Tank & Mixing / Aeration Device, Dosing System (PAC/PAM Dosing Machine, Acid-Base Neutralization Device) Function: Balances water quality and quantity, adjusts pH, flocculates and settles, stabilizes influent water quality, and reduces subsequent biochemical load.

2. Supporting Equipment for Main Sewage Treatment (Main Process Equipment)

Biochemical Treatment Equipment: A/O, A²/O, MBR Membrane Tank, SBR, Oxidation Ditch, Biological Contact Oxidation Tank, Anaerobic Reactor, etc., to degrade organic matter, remove nitrogen and phosphorus.

Sedimentation Tank Equipment: Primary Sedimentation Tank, Secondary Sedimentation Tank, Inclined Tube Sedimentation Tank, Mud Scraper, Mud Suction Machine, to settle sludge and suspended solids.
Advanced Filtration Equipment: Fiber Rotary Disc Filter, Sand Filter Tank, Activated Carbon Filter, Ultrafiltration System, etc., for further fine filtration.

Disinfection Equipment: Ultraviolet Disinfector, Ozone Generator, Sodium Hypochlorite Generator, to ensure effluent meets discharge standards.

Sludge Treatment Equipment: Sludge Thickening Tank, Screw Stack Press, Plate and Frame Filter Press, to treat surplus sludge in the system.

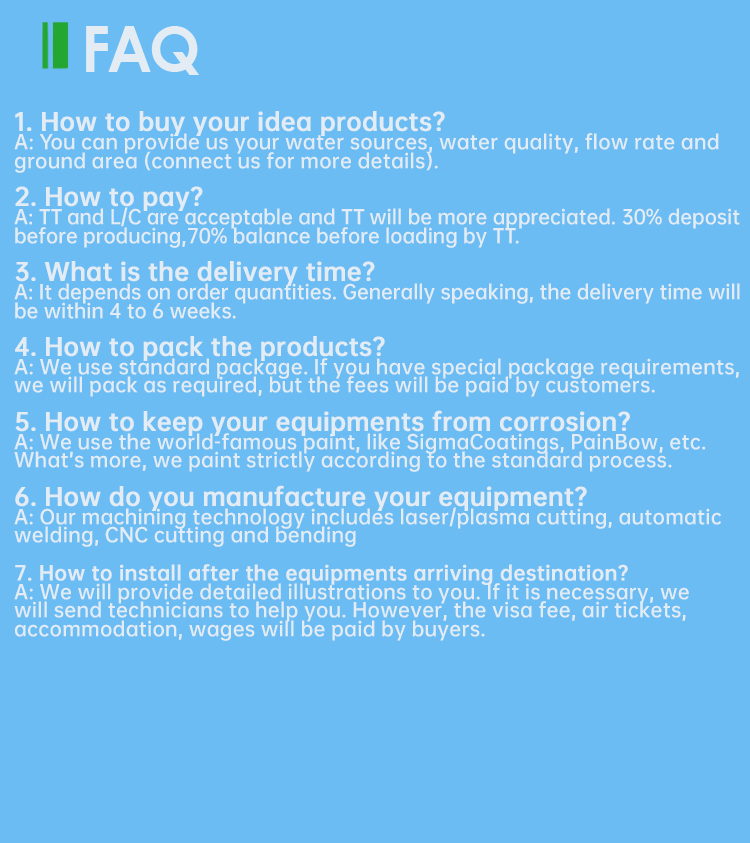

Faq

1. How to buy.your idea products?

A: You can provide us your water sources, water quality, flow rate and

2. How to pay?

A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing,70% balance before loading by TT.

3. What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

4. How to pack the products?

A: We use standard package. If you have special package requirements,we will pack as required, but the fees will be paid by customers.

5. How to keep your equipments from corrosion?

A: We use the world-famous paint, like SigmaCoatings, PainBow, etc.What's more, we paint strictly according to the standard process.

6. How do you manufacture your equipment?

A: Our machining technology includes laser/plasma cutting, automaticwelding,CNC cutting and bending

7. How to install after the equipments arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, wewill send technicians to help you. However, the visa fee, air tickets,accommodation, wages will be paid by buyers.
