Advanced Inclined Plate Settler for Industrial Wastewater Treatment

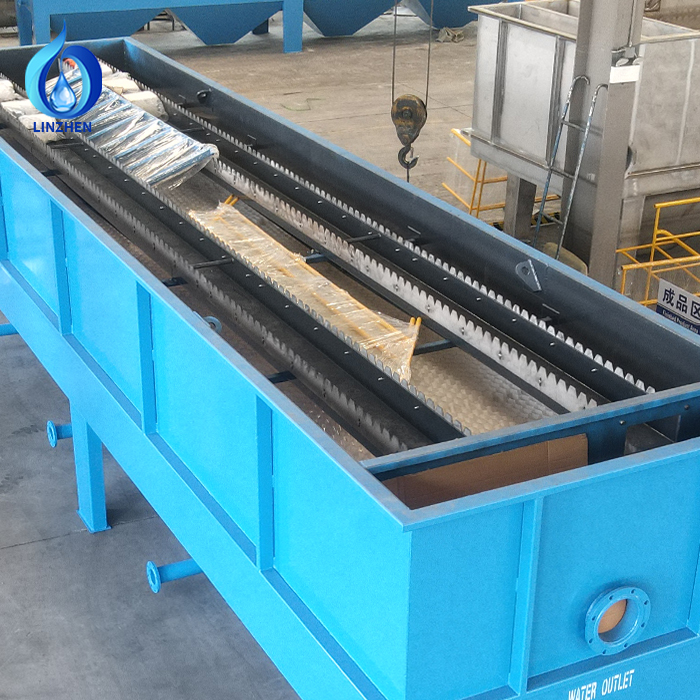

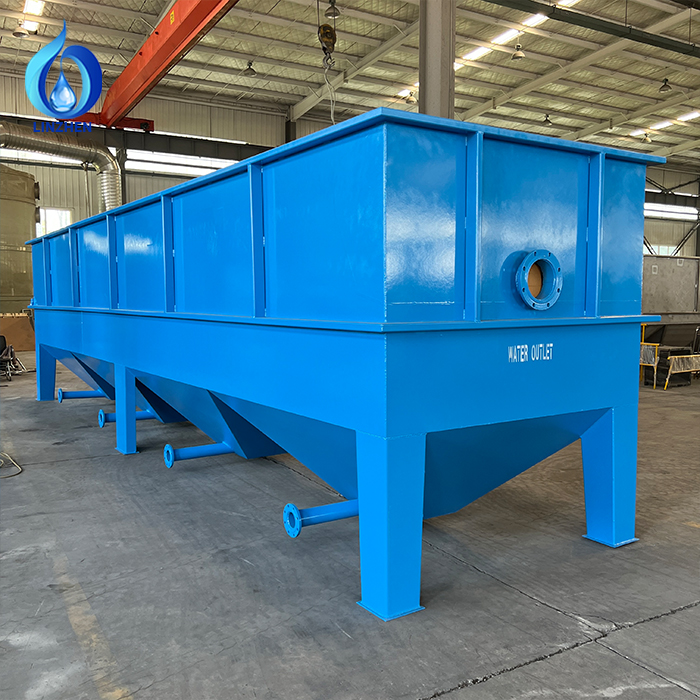

The Linzhen Lamella Clarifier, engineered by Qingdao Linzhen Environment Project Co., Ltd., represents a peak milestone in solid-liquid separation technology. Also widely integrated as an inclined plate settler, this highly advanced sedimentation tank is specifically manufactured to meet the rigorous demands of global industrial water treatment systems and municipal sewage projects. By incorporating a series of precisely engineered, closely spaced inclined plates, the system exponentially multiplies the effective settling surface area while maintaining an incredibly compact physical footprint. Suspended solids and chemical flocs rapidly aggregate, settle onto the plate surfaces, and smoothly slide into the bottom sludge hopper under gravity. Simultaneously, clarified effluent flows upward into the overflow collection channel, ensuring stable, premium-grade liquid clarification.

As global environmental compliance criteria tighten and land utilization costs rise, choosing high-capacity clarification machinery over traditional, space-consuming concrete sedimentation basins has become essential. Our modular equipment design not only maximizes processing velocity but also shortens project installation schedules, making it an ideal choice for new turn-key engineering setups and existing wastewater plant modernizations.

Technical Specifications & Engineering Matrix

Designed for fully automated, continuous operations with minimal manual intervention, our primary standard configuration model delivers highly reliable performance data:

• Productivity & Capacity: Standard 5,000 Liters/Hour (Customizable up to $30\text{ m}^3/\text{h}$ per single unit configuration).

• Control Automation: Fully integrated Electric Auto Control via premium Siemens PLC system.

• Power Parameters: 3 kW / 5 kW operational ratings, configured at 380V (Custom voltage compliance available).

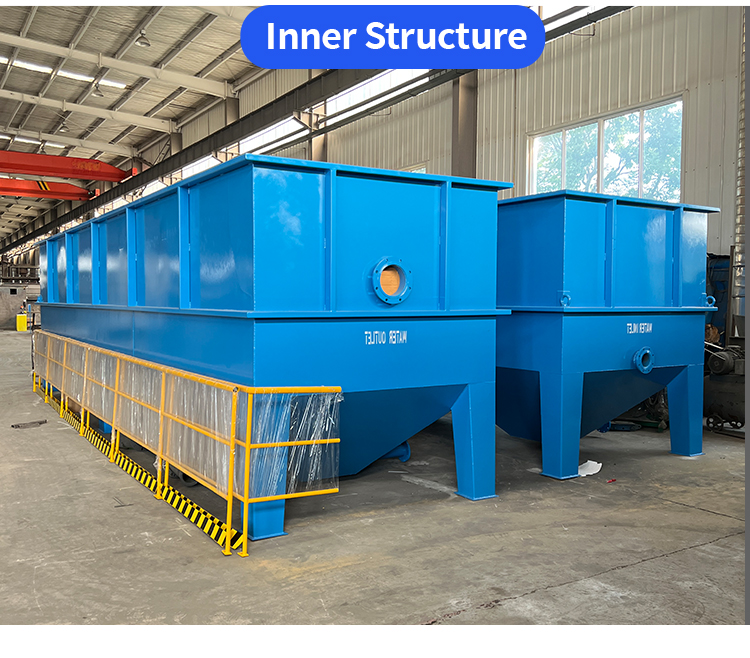

• Structural Dimensions: Standard unit footprint at 3.8m × 2.0m × 2.2m (LWH); customizable structural profiles available up to 11.6m length specifications.

• Equipment Dead Weight: Approximately 3,000 kg for standard structural configuration.

• Core Machinery Components: Heavy-duty industrial gearbox, premium pressure vessels, robust pumps, high-torque gears, specialized bearings, and automatic engines.

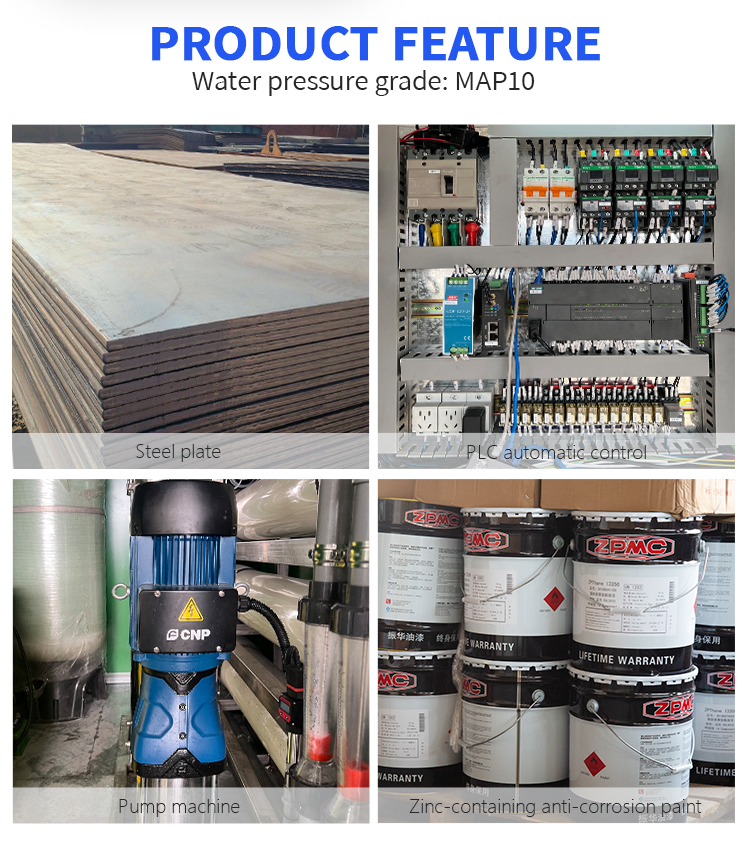

• Anti-Corrosion Standard: Multi-layer application of world-renowned protective coatings (SigmaCoatings/PainBow) over heavy-gauge carbon steel plates, matching a MAP10 water pressure grade.

• Quality Assurance Certification: Complete machinery testing reports and video outgoing-inspections provided prior to dispatch; 1-Year comprehensive warranty with lifetime technical support.

Versatile B2B Applications Across Global Target Industries

Qingdao Linzhen Environment Project Co., Ltd. delivers custom configurations for major cross-border water filtration projects:

• Industrial & Chemical Wastewater: Efficiently handles chemical precipitation, acidic neutralization streams, and high-salinity industrial plant effluents.

• Mining & Mineral Tailings Processing: Provides rapid clarification for mineral washing circuits and heavy mining wastewater recycling setups.

• Food, Beverage & Textile Effluents: Effectively isolates organic suspended matter, dairy processing waste, textile dyes, and fibrous residues.

• Metal Finishing & Surface Electroplating: Achieves outstanding removal of heavy metal hydroxides and toxic particulate sludge after chemical treatment.

• Power Generation & Cooling Water Loops: Pre-treats boiler feedwater and clarifies cooling tower blowdown to minimize scaling and operational downtime.

• Municipal Sewage & Reclaimed Water Projects: Aids municipal treatment plants in lowering overall turbidity and meeting strict discharge or water reuse regulations.

Core Advantages: Why EPC Engineering Contractors Choose Linzhen Lamella Plates

• Over 70% Footprint Reduction: Unlike conventional sedimentation basins that require vast open land zones to allow gravity settling, the Linzhen inclined plate design compresses the footprint by 70% to 90%. This makes it perfect for industrial parks with severe spatial limitations.

• Optimized Settling Distance: Traditional clarifiers require flocs to drift downward through meters of open liquid. Our inclined plates reduce this critical settling path to just a few centimeters, maximizing hydraulic loading rates and stopping particle carryover.

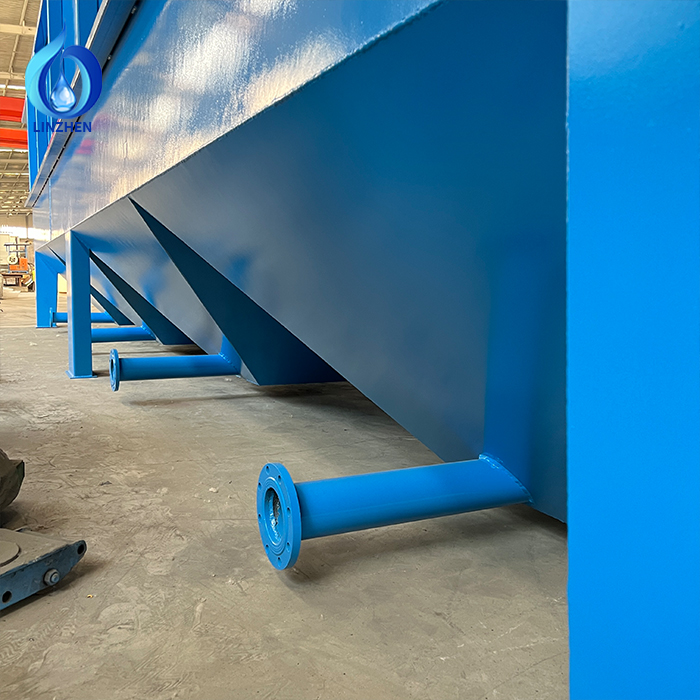

• Heavy-Duty Structural Longevity: Every clarifying container undergoes advanced automatic plasma/laser cutting, precision CNC bending, and robotic welding. Coated with industrial-grade zinc-rich anti-corrosion primers, our units offer extreme structural endurance in highly acidic or saline settings.

• Seamless Process Synergy: The equipment works perfectly alongside upstream coagulation-flocculation systems, chemical precipitation units, or Dissolved Air Flotation (DAF) systems. It serves as an exceptional pretreatment step to safeguard downstream biological systems like MBBR, MBR, and SBR, or tertiary Reverse Osmosis (RO) membranes.

Why Partner with Linzhen: Your Trusted OEM/ODM Manufacturing Base

Based in the industrial hub of Qingdao, China, Qingdao Linzhen Environment Project Co., Ltd. operates a large, modern production base. Our facility features a 12,000-square-meter production workshop and a 30,000-square-meter total construction footprint, run by a highly experienced engineering and manufacturing team. As an established, certified manufacturer holding ISO9001, CE, and SGS international certifications, we focus on delivering competitive factory-direct pricing, short production cycles, and completely customized equipment engineering.

To better serve our overseas engineering contractors and environmental equipment distributors across Asia, Europe, Africa, and South America, we operate dedicated branches and local warehouses in Malaysia and the Philippines. Backed by an efficient, 30-person after-sales service team, we offer rapid online video consultations, installation schematics, and swift parts replacement to keep your projects running flawlessly. From individual component supply to complex industrial water treatment solutions, Linzhen is your long-term partner for environmental compliance.

Frequently Asked Questions (B2B Procurement FAQ)

• 1. What core engineering parameters are needed to get an accurate technical proposal? Please provide your exact raw water source characteristics, target water quality goals, required hourly flow rate ($m^3/h$), and available site footprint limits. Our R&D team will quickly design a tailored configuration.

• 2. What are your standard payment terms for international projects? We accept Telegraphic Transfer (T/T) and Letter of Credit (L/C). Our standard B2B structure is a 30% deposit prior to production manufacturing, with the remaining 70% balance settled before factory loading and port dispatch.

• 3. What is the typical lead time for custom production orders? Production times vary depending on the required capacity and custom options. Standard modular systems are generally completed, tested, and ready for shipment within 4 to 6 weeks.

• 4. How is the equipment protected against ocean corrosion during shipping? We use seaworthy packing methods. Critical mechanical parts are heavily wrapped, and all structural carbon steel surfaces are finished with industrial anti-corrosion paint to withstand long-distance maritime transit.

• 5. How do we manage on-site installation and commissioning after arrival? Every shipment includes complete layout diagrams and detailed illustrations. We offer full online video technical support. For major municipal or industrial projects, we can deploy senior technicians to assist with site commissioning, provided the buyer covers visa, ticketing, and local accommodation costs.
