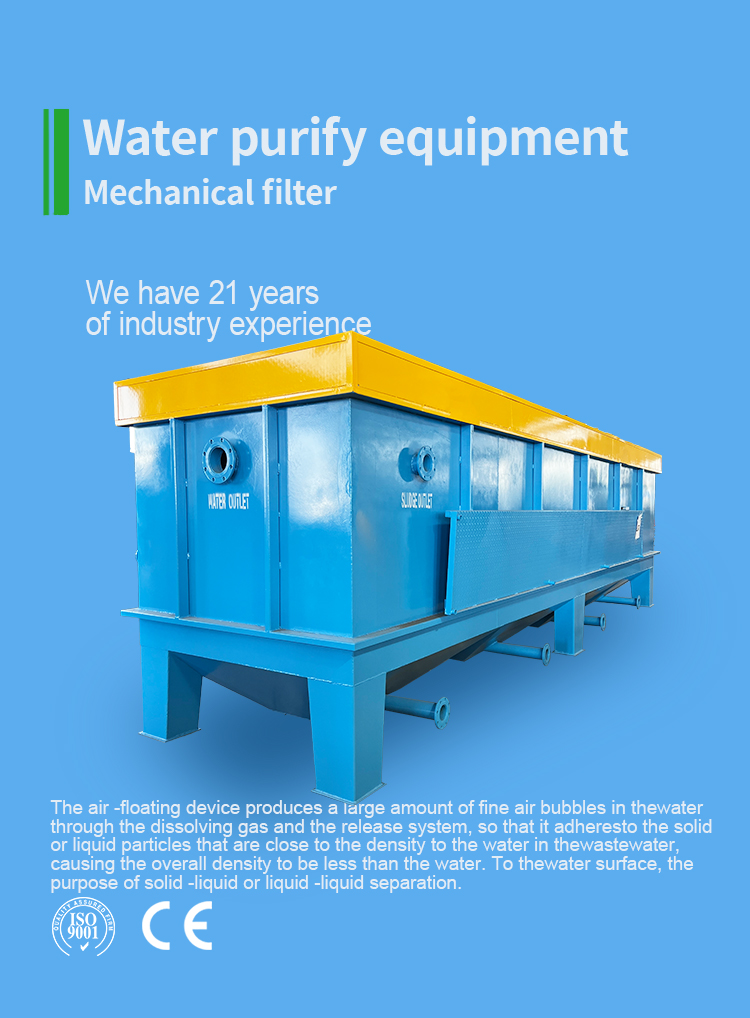

Product Introduction

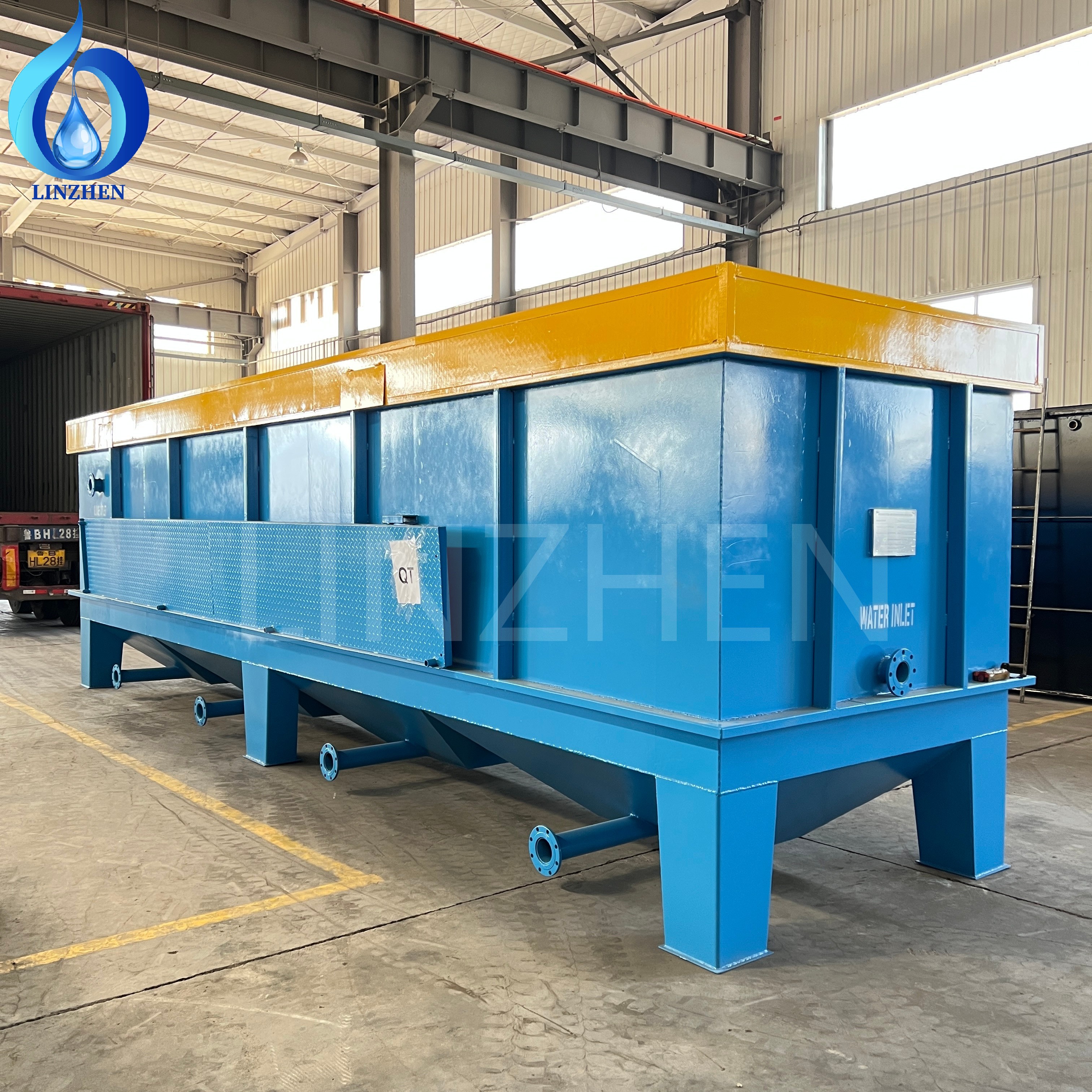

Qingdao Linzhen Environmental Engineering Co., Ltd.’s customized large-flow DAF dissolved air flotation tank is tailor-made for heavy-load industrial wastewater projects with hourly water volume ranging from 200 to 1000 cubic meters. Unlike standard small and medium DAF equipment limited by single tank water passing capacity

this large-flow series adopts a multi-chamber parallel flow distribution structure independently optimized by our R&D team, perfectly solving core pain points of traditional oversized flotation tanks such as uneven water distribution, turbulent flow disturbance of floating sludge layer, and unstable effluent quality under peak water volume impact.

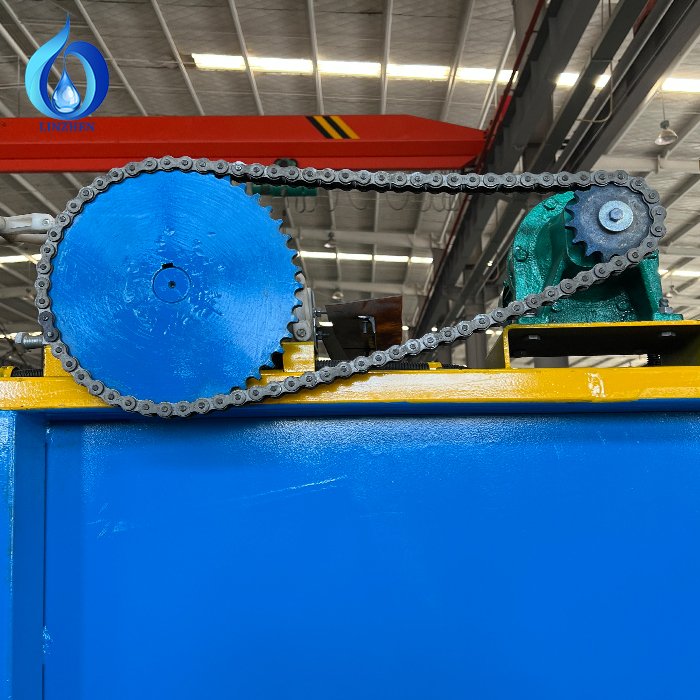

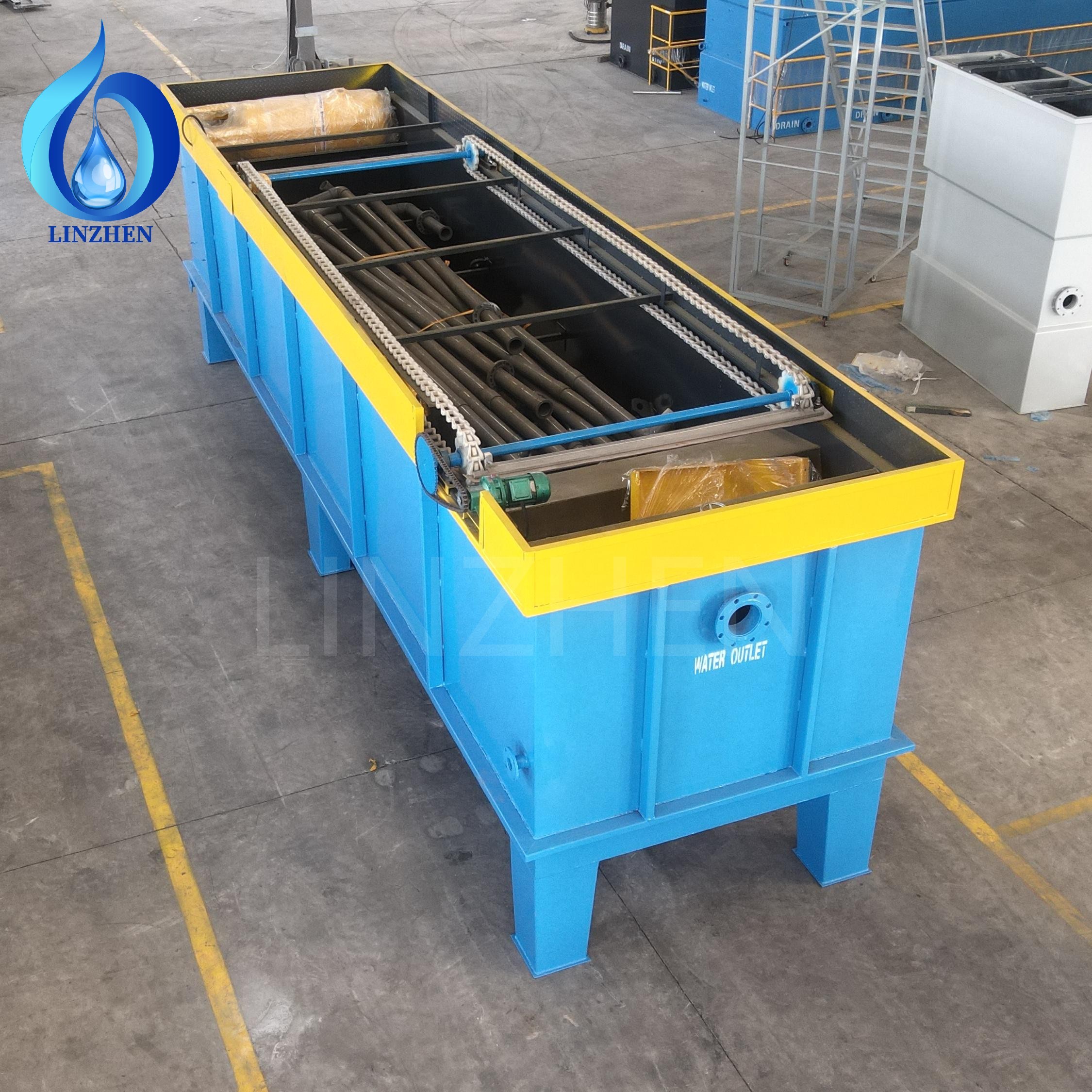

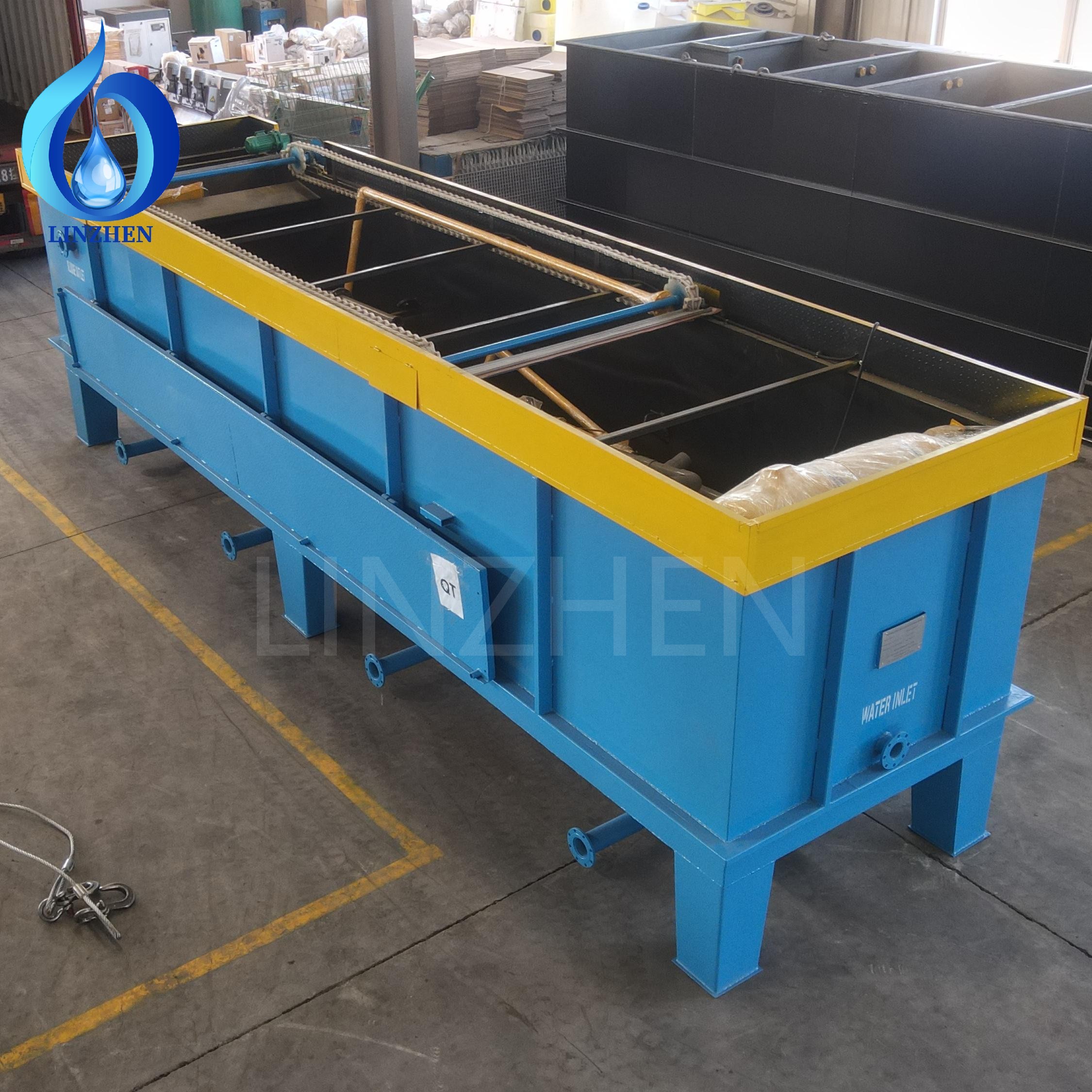

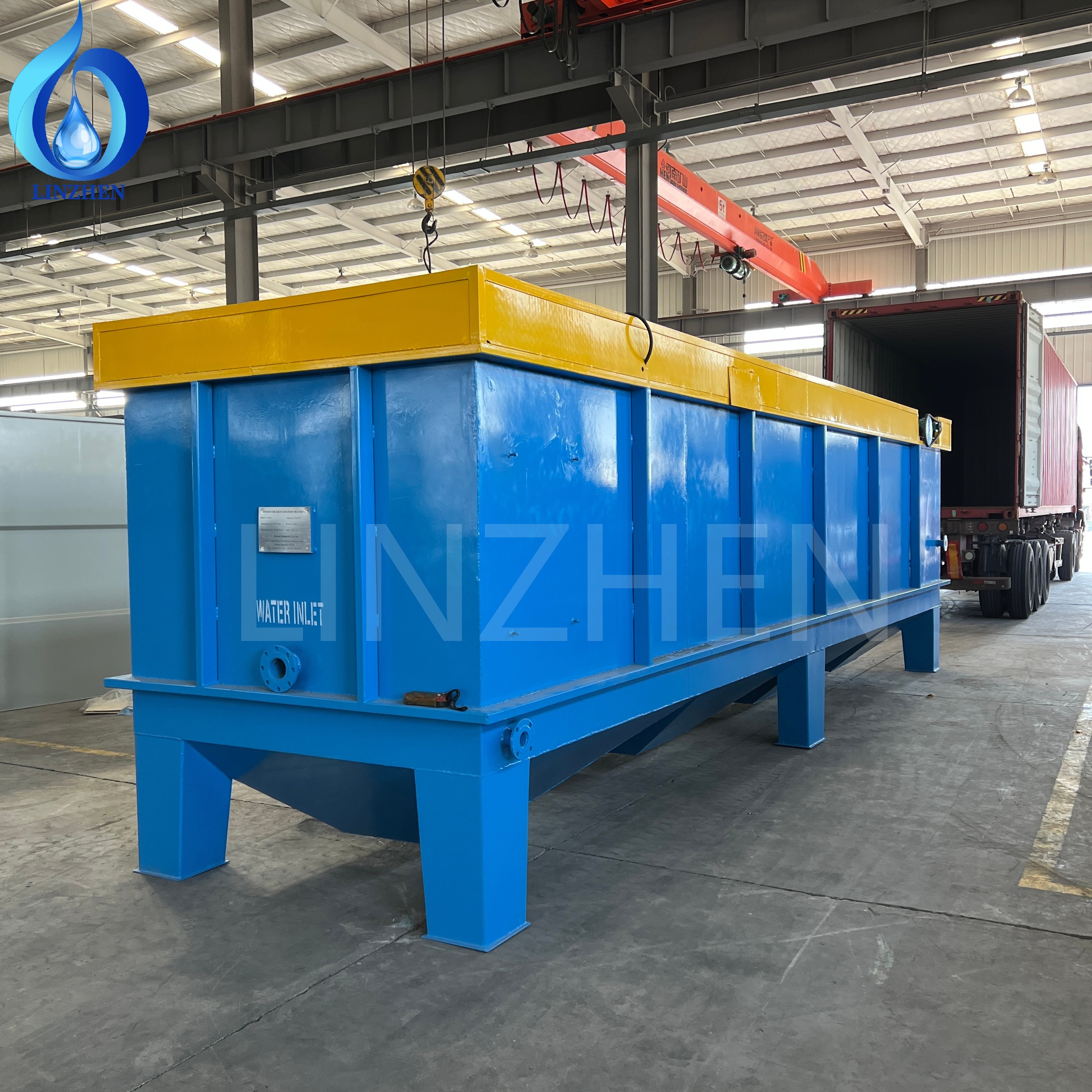

This full-custom DAF tank integrates multi-group high-efficiency air dissolving assemblies, segmented automatic slag scraping systems, integrated flocculation reaction compartments and central PLC intelligent control cabinet as an all-in-one processing unit. Two deployment modes are available: factory pre-assembled skid-mounted container type and on-site welded civil large tank type

Our 200-1000m³/h large flow DAF delivers stable pollutant removal efficiency:
oil & grease interception rate ≥98%
total suspended solids (TSS) removal up to 96%
effective COD/BOD reduction of 40%-82%.

For high-salinity, high-emulsified oily wastewater from Middle East coastal industrial zones, we upgrade the tank body to SS316L full stainless steel anti-corrosion structure, adapting to long-term continuous operation under harsh water quality and high temperature environment.

All equipment undergoes 72-hour full-load hydraulic simulation testing before delivery to guarantee stable operation under long-term peak water flow conditions, fully meeting international industrial wastewater discharge and water reuse standards for Europe, Southeast Asia and the Middle East.

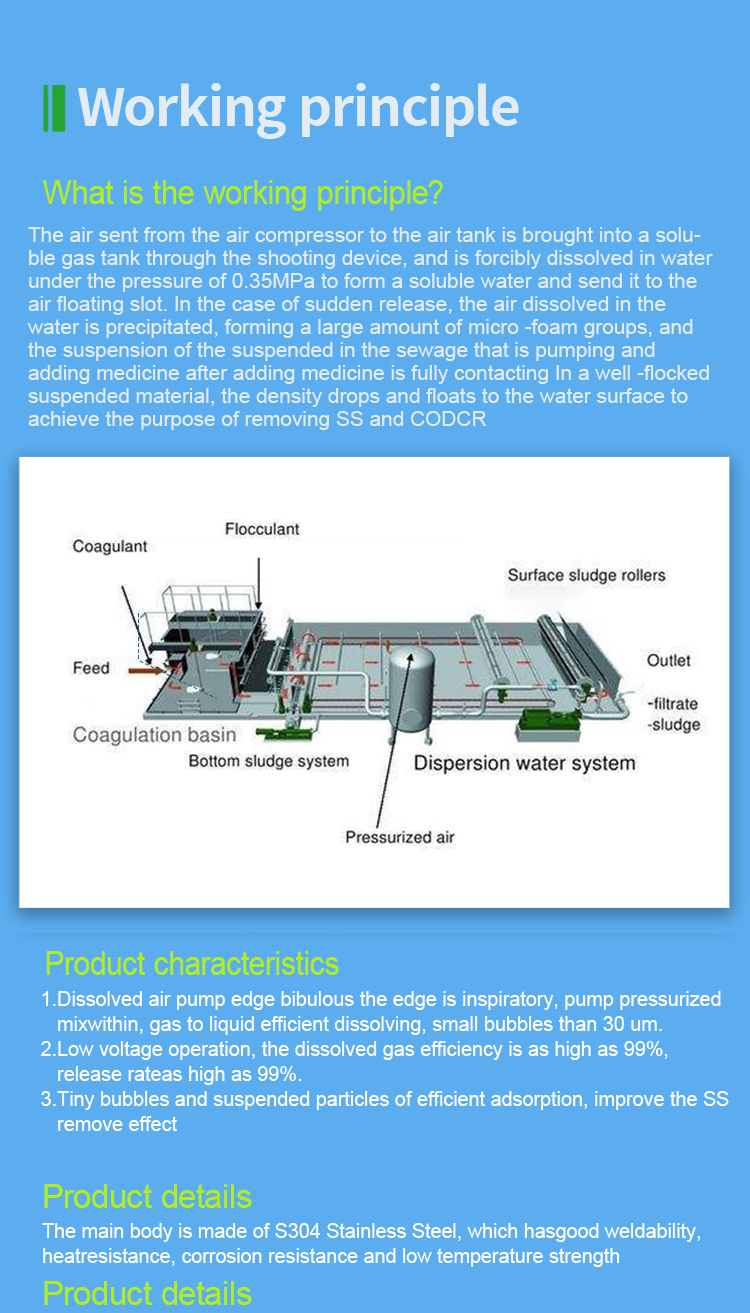

Working Principle

The air sent from the air compressor to the air tank is brought into a solu-ble gas tank through the shooting device, and is forcibly dissolved in water under the pressure of 0.35MPa to form a soluble water and send it to theair fioating slot. In the case of sudden release, the air dissolved in thewater is precipitated, forming a large amount of micro -foam groups, andthe suspension of the suspended in the sewage that is pumping andadding medicine after adding medicine is fully contacting In a well -flockedsuspended material, the density drops and floats to the water surface toachieve the purpose of removing SS and CODCR

Product characteristics

1.Dissolved air pump edge bibulous the edge is inspiratory, pump pressurizedmixwithin, gas to liquid efficient dissolving, small bubbles than 30 um.
2.Low voltage operation, the dissolved gas efficiency is as high as 99%,release rateas high as 99%.
3.Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect

Wide Industrial Application of 200-1000m³/h Large Flow DAF

Pulp & Paper Industrial Park Wastewater: Remove fiber suspended solids, pulp colloids and paper-making white water oil stains, reduce SS and COD load of subsequent biochemical system for large paper mills with massive wastewater discharge.

Large Food & Slaughter Processing Base: Treat mixed wastewater of slaughter blood water, edible oil processing sewage and dairy production wastewater, efficiently separate protein flocs and animal grease to meet industrial park centralized discharge standards.

Chemical & Petrochemical Industrial Zone: Separate mineral oil, emulsified chemical oil and organic colloids in high-volume chemical comprehensive wastewater, serve as core pretreatment equipment before biochemical treatment.

Municipal Centralized Catering & Kitchen Waste Leachate Treatment Station: Handle thousands of cubic meters of oily domestic wastewater per hour, intercept food grease and suspended impurities to avoid pipeline blockage of municipal sewage network.

Coastal Seawater Desalination Supporting Pretreatment: Remove suspended sediment and marine microalgae in high-salinity seawater, protect subsequent desalination RO membranes from pollution and extend membrane service life.

Large Printing & Dyeing Textile Factory: Mass printing and dyeing wastewater decolorization and colloid removal, intercept textile fiber and printing ink pollutants, reduce chroma and total suspended solids of effluent.

Technical Parameter Table

Large Project General Contracting Supporting Capacity

We can undertake turnkey wastewater treatment general contracting projects for large industrial parks, match 200-1000m³/h large flow DAF with RO reverse osmosis, EDI, MBR biochemical equipment and sludge dewatering machines to build a full-process wastewater zero discharge & reuse system. Dozens of overseas large-scale chemical, paper, food industrial park centralized wastewater treatment EPC projects have been completed, with rich experience in ultra-large water volume customized equipment design and on-site construction coordination.

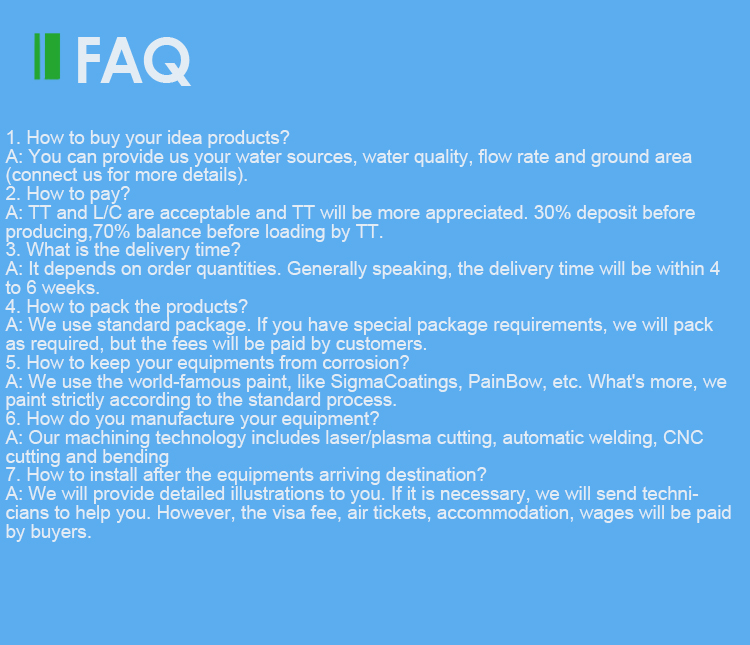

FAQ

How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What’s more, we paint strictly according to the standard process.

How do you manufacture your equipment?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

How to install after the equipments arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
